Model Numbers
Application

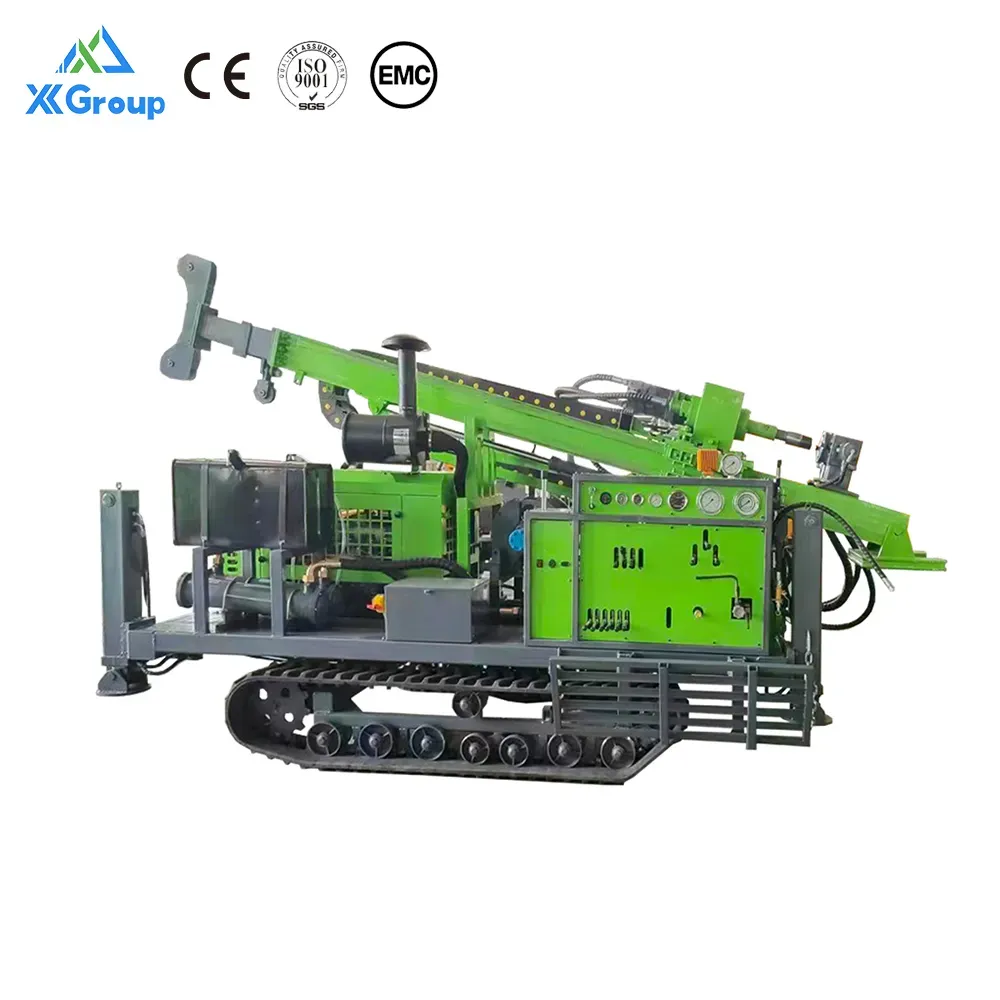

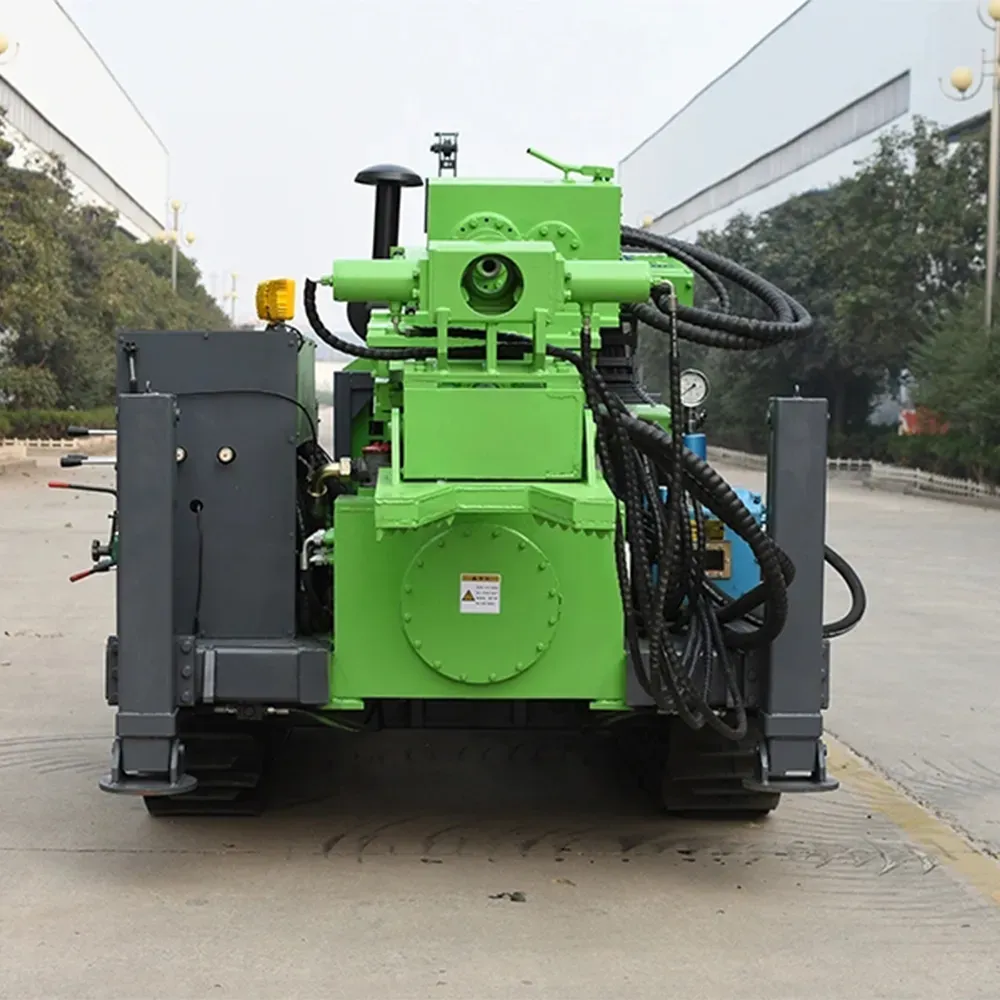

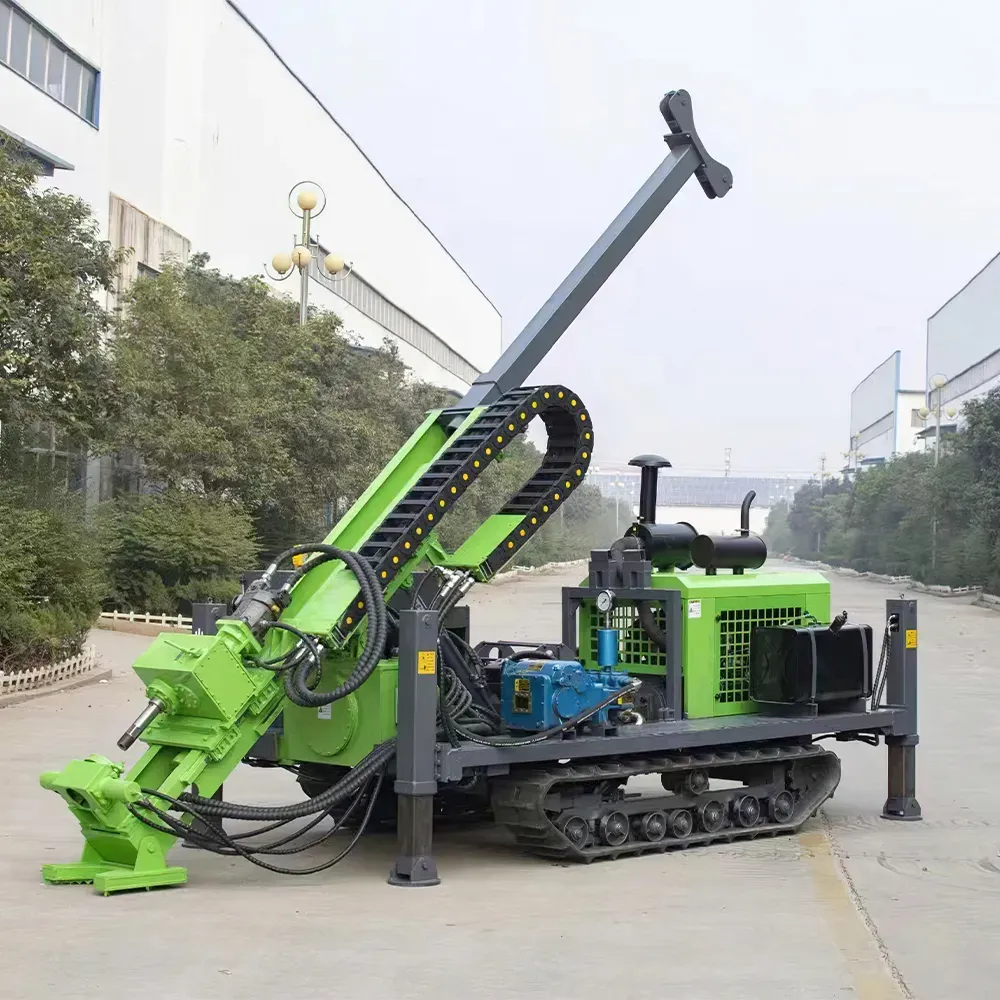

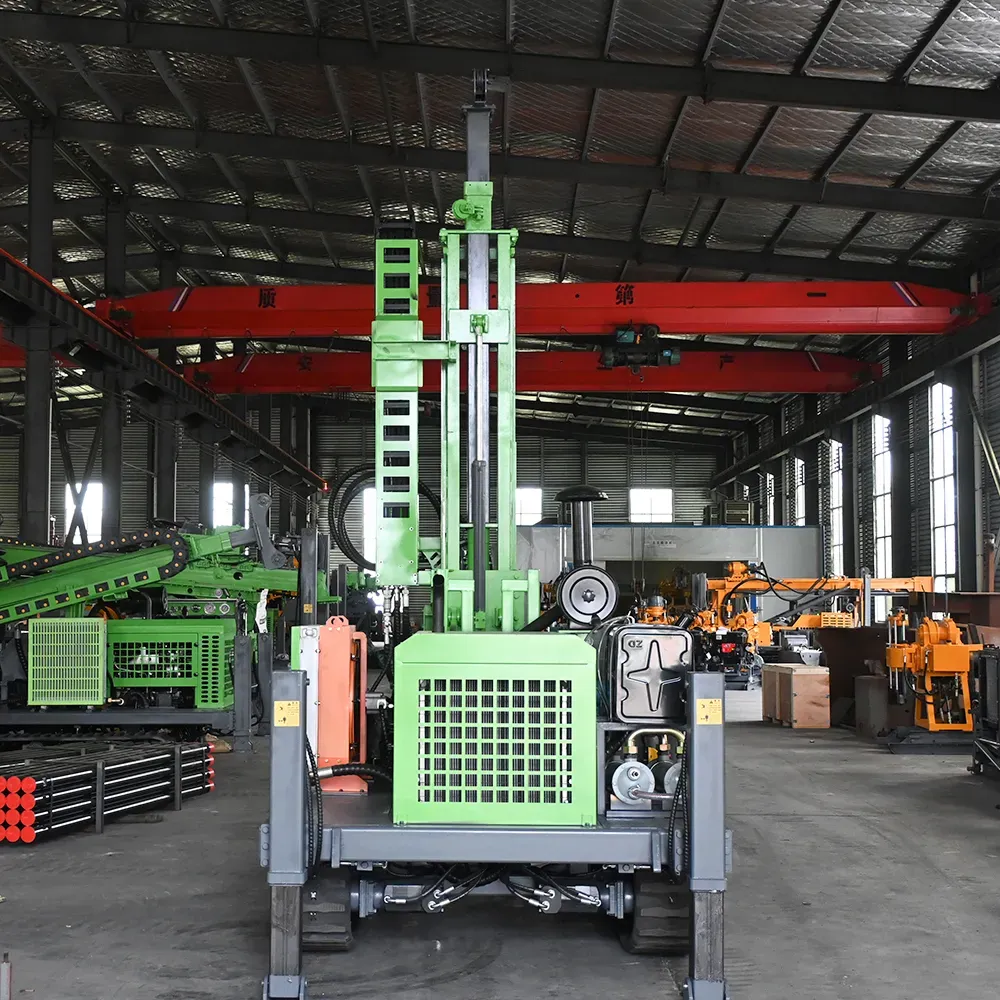

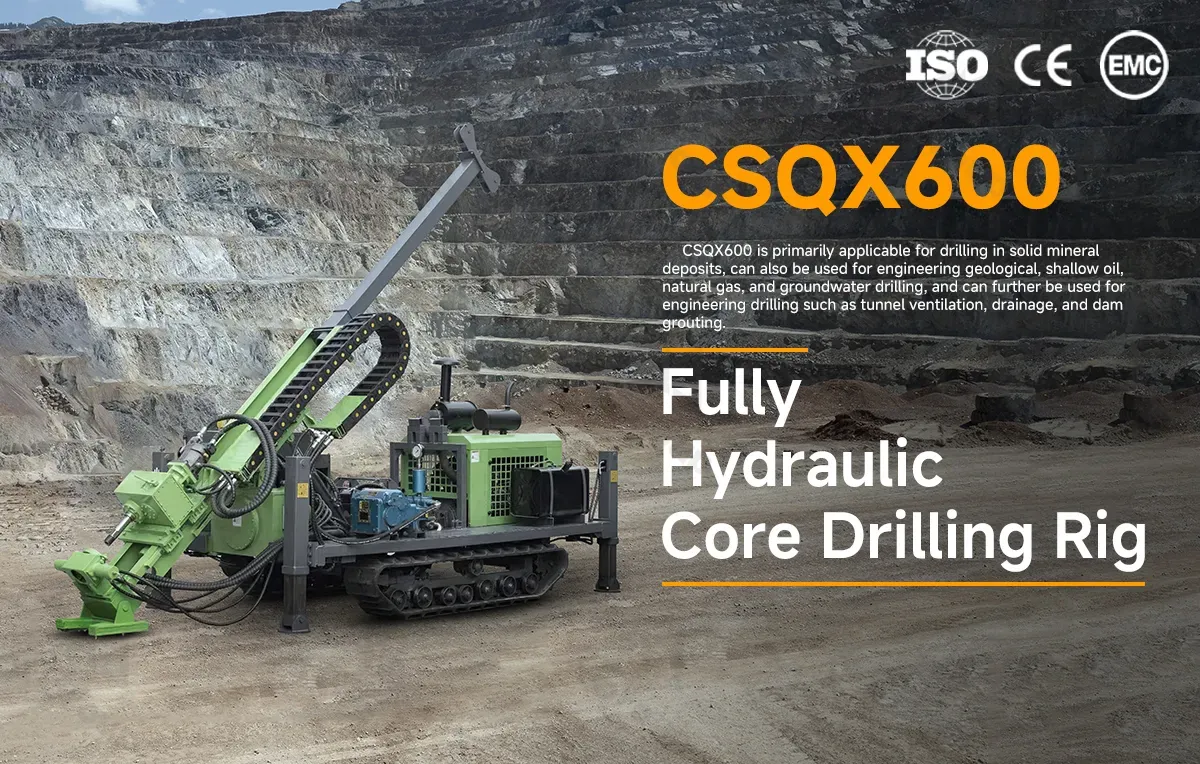

A core drilling rig is a professional equipment used to drill cylindrical rock cores/soil cores from geological formations such as rocks and soil. It can accurately obtain underground geological samples and is widely applied in scenarios like geological exploration, mineral survey, and engineering investigation.
Prices are for reference only. Actual quotes will be provided based on specific requirements. We have a professional technical and service team that strives to make everything perfect.

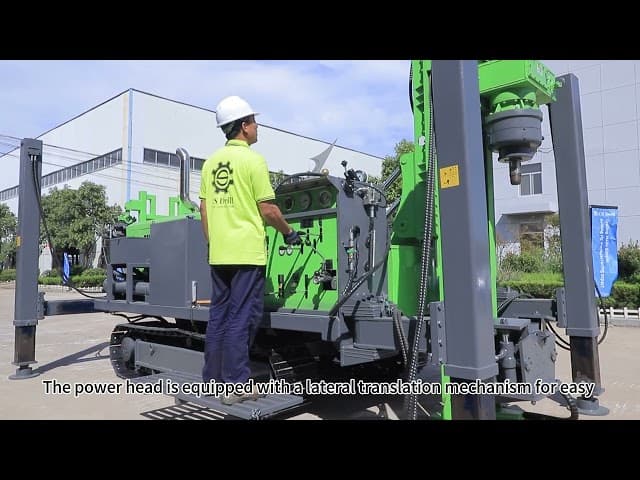

Click to play video
| Model/ltem | Unit | CSQX600 | CSQX800 | CSQX1000 A/B |
CSQX1000C | CSQX1600 | CSQX2000 |
| Weight | kg | 5000 | 6500 | 7000/8000 | 9000 | 10000 | 12000 |
| Dimension (Transport) | mm | 4500*1900*2650 | 4400*2200*2800 | 4700/5600*2100*2600 | 5500*2100*2600 | 5900*2100*2400 | 6100*2200*2500 |
| Dimension (Working) | mm | 4500*2500*6100 | 4000*2700*6500 | 4200*2650*6500/8100 | 4600*2650*8000 | 5900*2650*8100 | 5300*3600*8100 |
| Drilling Angle | ° | 45-90 | 45-90 | 45-90 | 45-90 | 45-90 | 45-90 |
| Drilling Depth BTW | m | 650 | 1000 | 1200 | 1200 | 1800 | 2200 |
| Drilling Depth NTW | m | 600 | 800 | 1000 | 1000 | 1600 | 2000 |
| Drilling Depth HTW | m | 400 | 600 | 800 | 800 | 1400 | 1800 |
| Drill Head Lifting Force | kN | 240 | 300 | 360 | 360 | 460 | 600 |
| Drill Head Feeding Force | kN | 120 | 150 | 180 | 180 | 230 | 300 |
| Rotary Speed | rpm | 0-1100 | 0-1100 | 0-1100 | 0-1100 | 0-1100 | 0-1100 |
| Max. Torque | N.m | 1400 | 1800 | 2400 | 2600 | 4000 | 5000 |
| Drill Head Feed Stroke | mm | 1800 | 1800 | 1800/3500 | 3500 | 3500 | 3500 |
| Drill Mast Slide Stroke | mm | 800 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Hydraulic Pumps | / | Main pump 95ml/r.32MPa Auxiliary pump 80ml/r. 25MPa |
Main pump 95ml/r.32MPa Auxiliary pump 80ml/r. 25MPa |
Main pump 115ml/r.32MPa Auxiliary pump 96ml/r. 25MPa |
Main pump 115ml/r.32 MPa Auxiliary pump 96ml/r. 25MPa |
Main pump 145ml/r.32 MPa Auxiliary pump 96ml/r. 25MPa |
Main pump 190ml/r.32 MPa Auxiliary pump 80ml/r. 25MPa |
| Hydraulic Cooling System | / | Water Cooling | Water cooling+Air cooling | Water cooling+Air cooling | Water cooling+Air cooling | Water cooling+Air cooling | Water cooling+Air cooling |
| Power Unit | / | Yuchai 4-cylinder engine 91kw/2200rpm | Yuchai 6-cylinder engine 92kw/2200rpm | Weichai 6-cylinder engine 129kw/2200rpm | Weichai 6-cylinder engine 129kw/2200rpm | Weichai 6-cylinder engine 140kw/2000rpm | Weichai 6-cylinder engine 178kw/2200rpm |
| Hydraulic Winch Capacity | m | 600 | 800 | 1000 | 1000 | 1600 | 2000 |
| Mechanical Winch Capacity | kN | 15 | 20 | 24 | 24 | 30 | 45 |
| Winch Lifting Speed | m/min | 110 | 110 | 110 | 110 | 110 | 110 |
| Mud Pump | / | BW100/BW160(optional) | BW100/BW160(optional) | BW100/BW160(optional) | BW160/BW250(optional) | BW250 | BW250 |
| Crawler Chassis | / | Rubber/6t Steel 300mm(Optional) | 6t steel 300mm/8t steel 400mm (Optional) | 8t steel 400mm*40 | 10t steel 400mm*43 | 10t steel 400mm*43 | 13t steel 400mm*46 |
| Crawler Climbing Angle | ° | 25 | 25 | 25 | 25 | 25 | 25 |
| Crawler Walking Speed | km/h | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 |

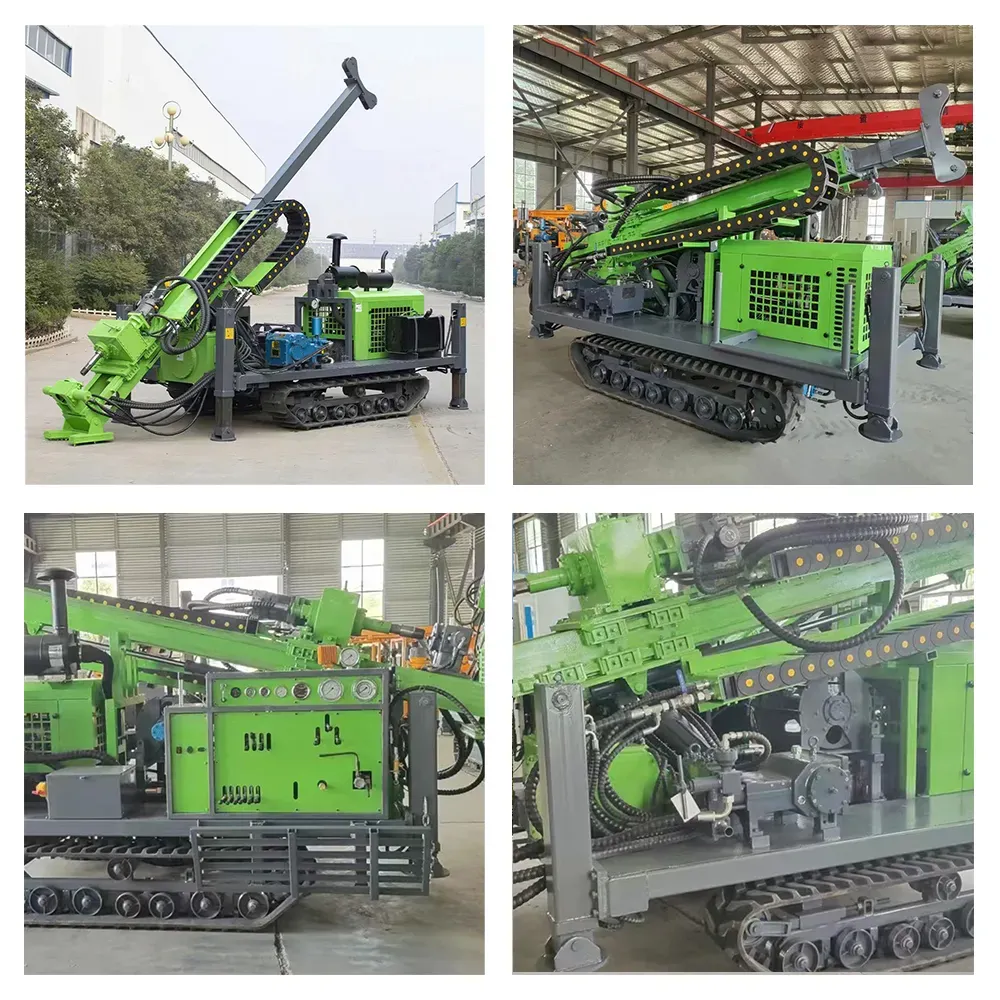

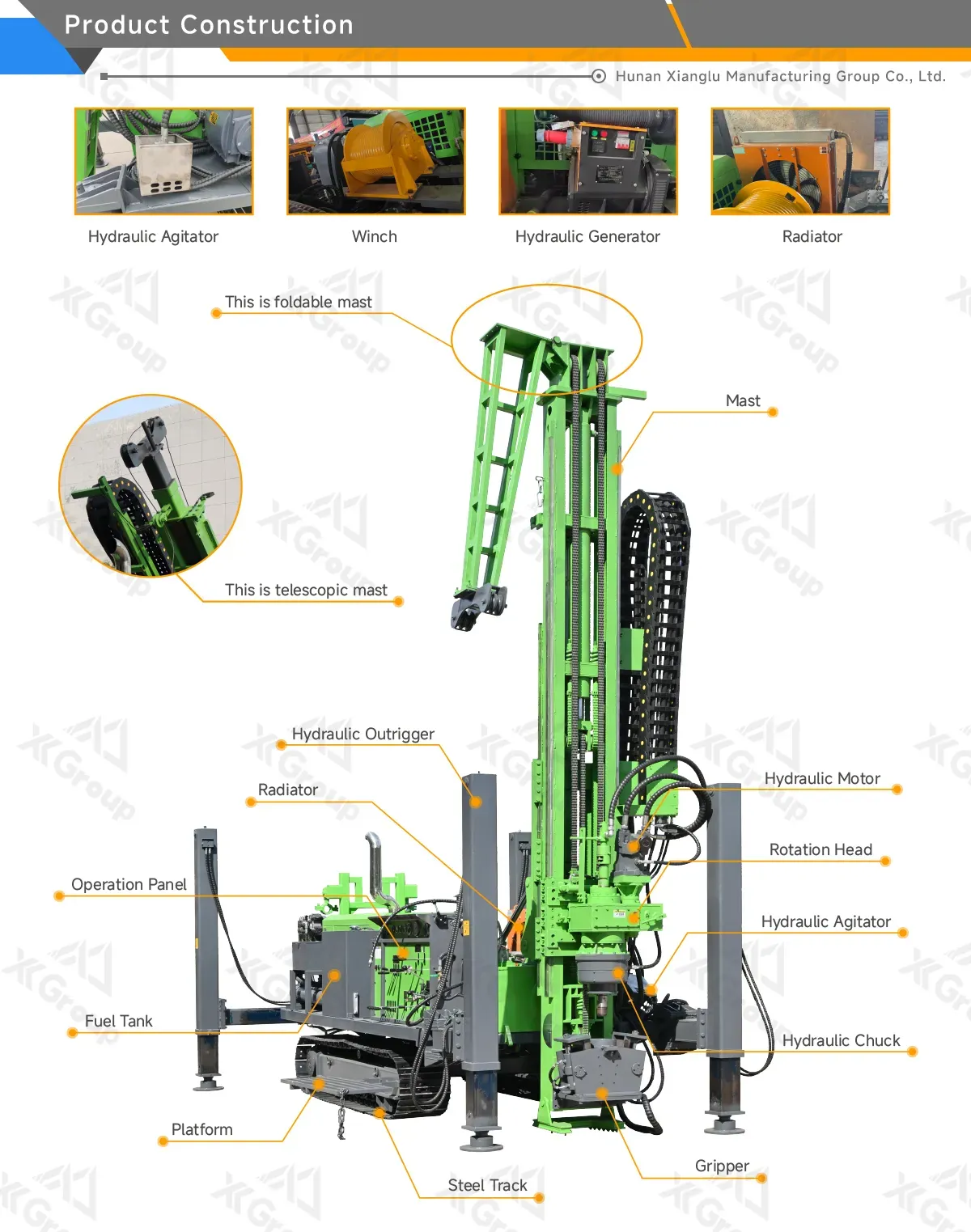

Product Features:

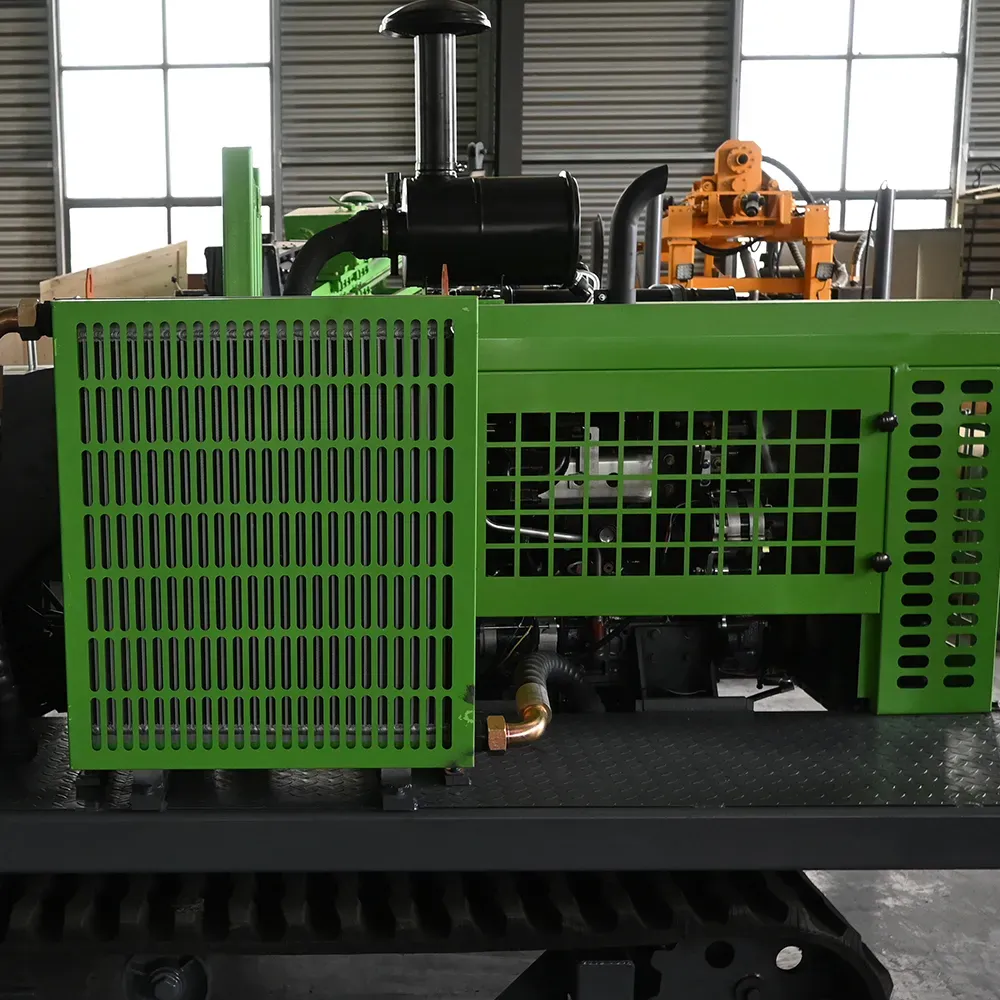

1. The driling rig uses a Yuchai four-cylinder 91kw engine, an axial piston pump and a triple gear pump fully hydraulicallydriven, with high system pressure and strong power output.
2. The mast is raised and lowered by a cylinder, and can slide as a whole to drill holes within a range of 45-90°
3. The drilling rig uses water cooling to ensure the normal operation of the drilling rig.
4. The power head adopts a mechanical two-speed stepless speed regulation, low-speed torgue multiplication, and stableand reliable driling. The power head is equipped with a lateral translation mechanism for easy lifting and placing of drilingtools.
5. Equipped with wireless remote control crawler, it is suitable for a variety of terrains, and the movement of the driling rigcan be controlled within a safe distance to prevent sudden dangers.
