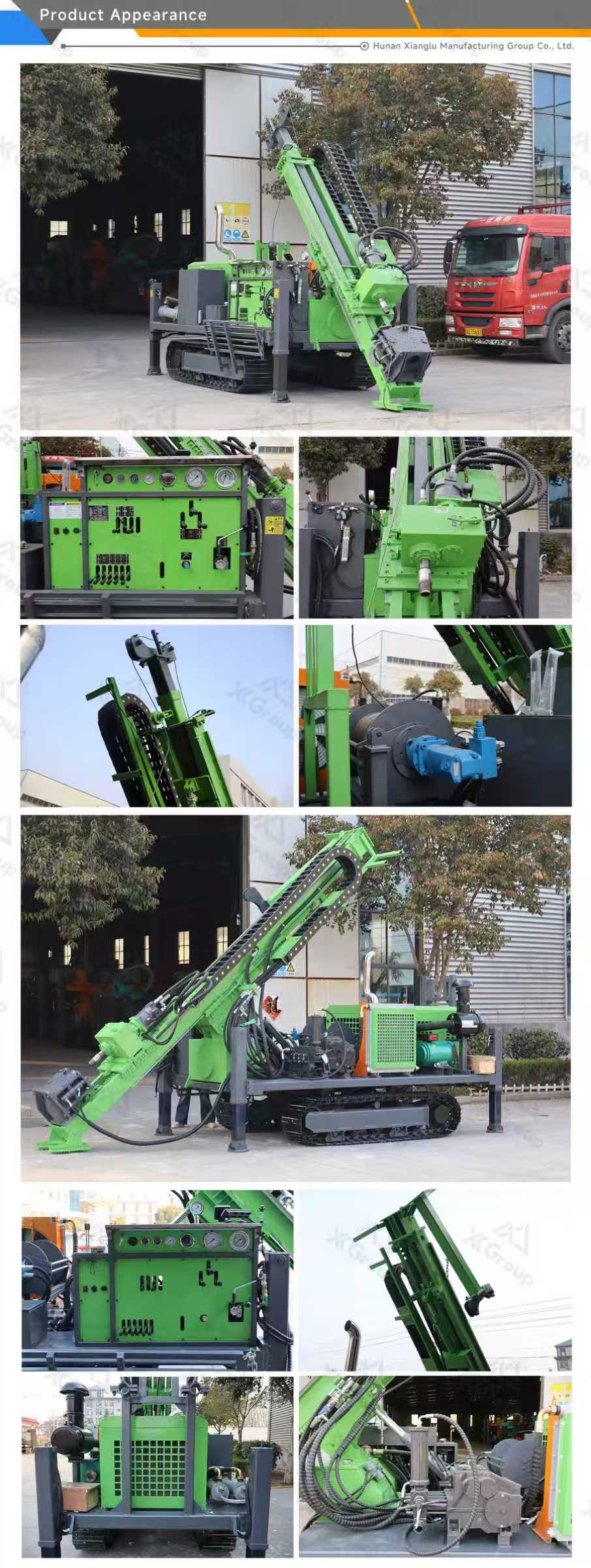

CSDX-4E
CSDX-4E Full Hydraulic Core Drill Rig is mainly used in core drill with diamond bit or hard tungsten-carbide tipped bit in the field of industries such as geology, metallurgy, coal, nuclear industry, hydrology, etc.
Prices are for reference only. Actual quotes will be provided based on specific requirements. We have a professional technical and service team that strives to make everything perfect.

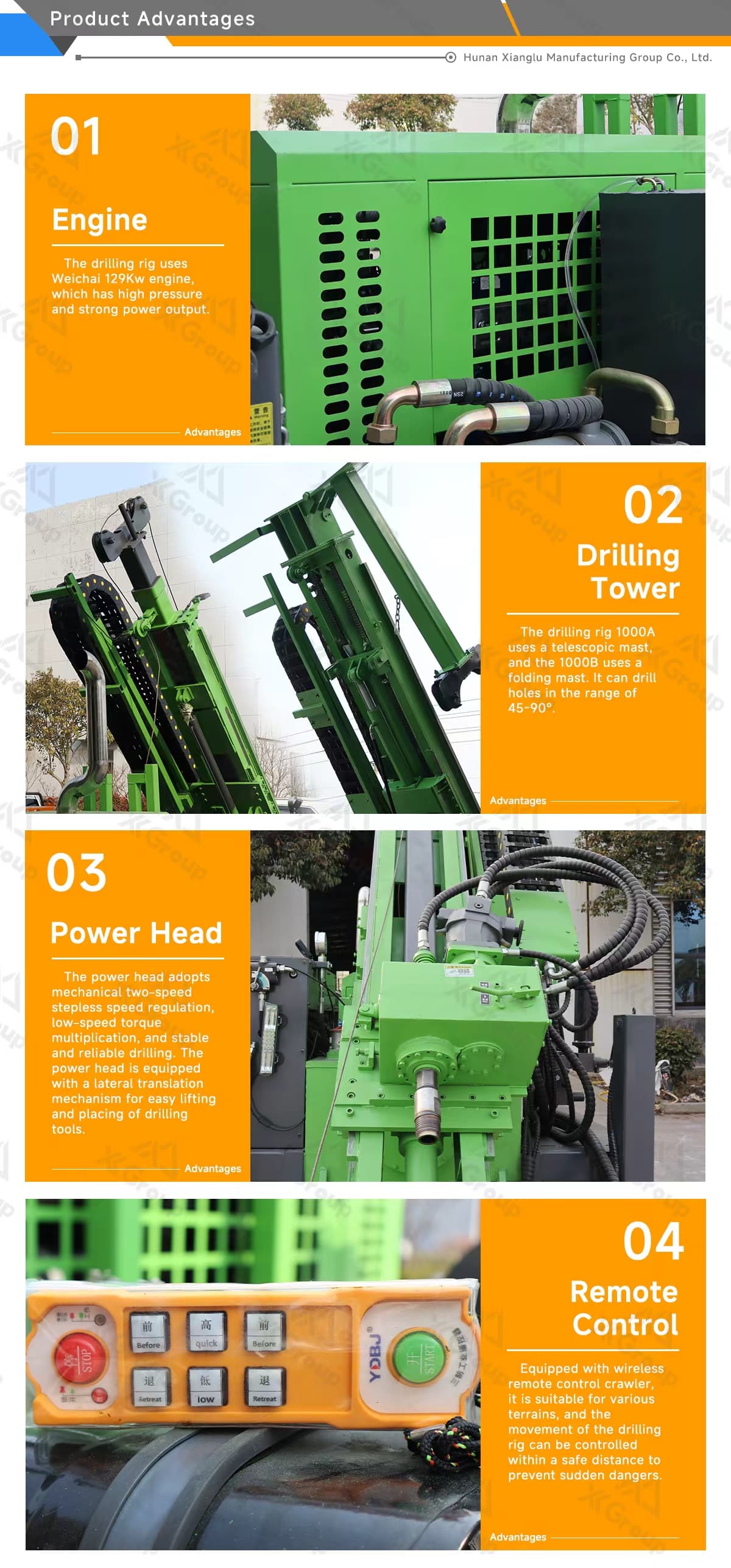

1. Main hydraulic components are selected from internationally renowned brands.
2, Drill head adopts a chuck type structure, with lateral translation function and four gear stepless speed adjustment.
3. The rig is driven by cylinder directly for feeding.

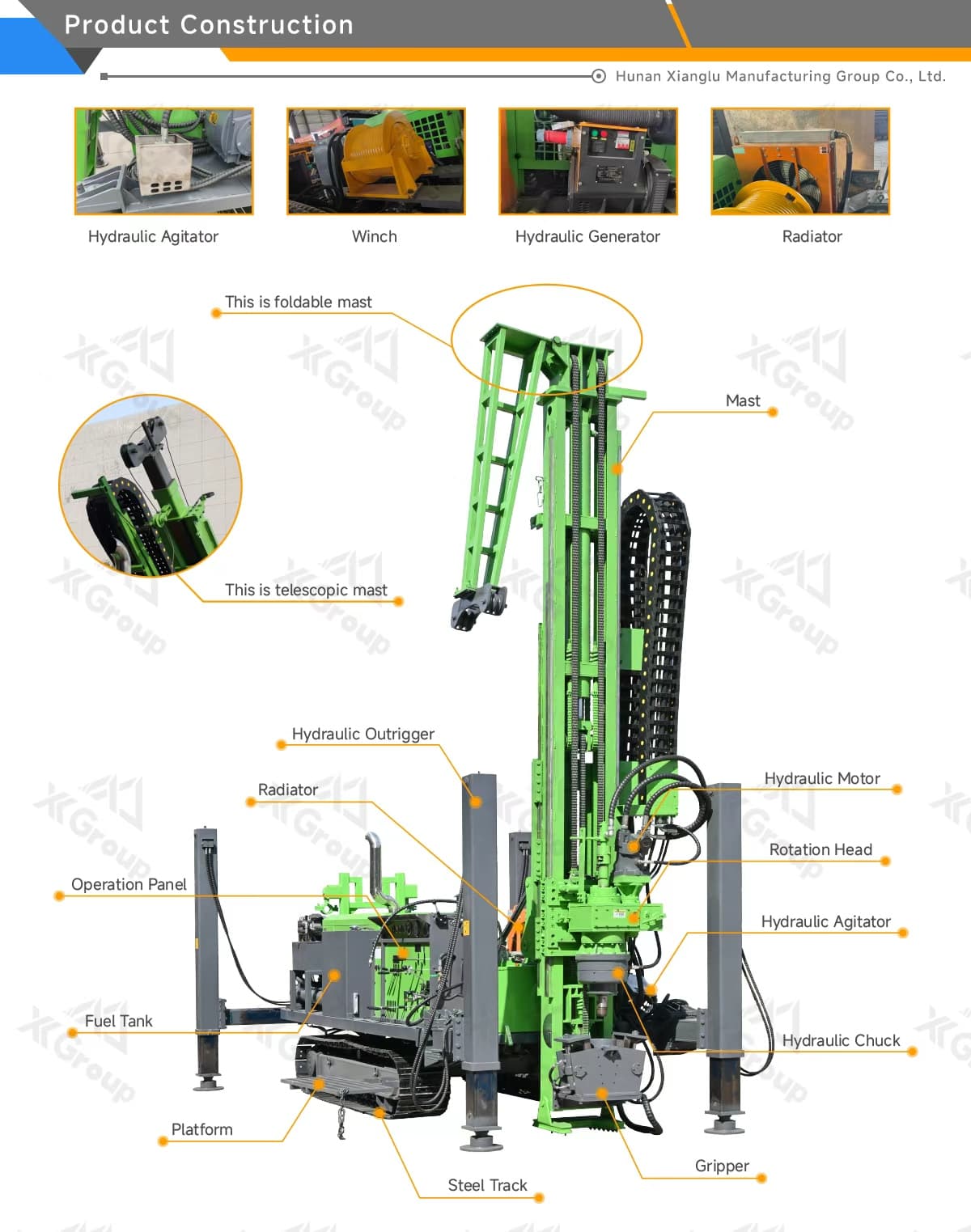

4. Mast adopts oil cylinder lifting and lowering, foldable, convenient for transportation and storage, with sliding grounding
function.
5. Hydraulic system adopts load sensitive control, and the rotation of drill head spindle is driven by motor, with high operation efficiency and high torque.
6. Mast is equipped with centering guide in its upper and lower part for inclined hole construction conveniently, A hydraulic
clamp is adopted at the position above the drilling hole.
7.Equipped with two layer working platforms.
8.According to the needs of users, crawler-type, platform-type, or truck-type could be selected.
