Model Numbers
Application

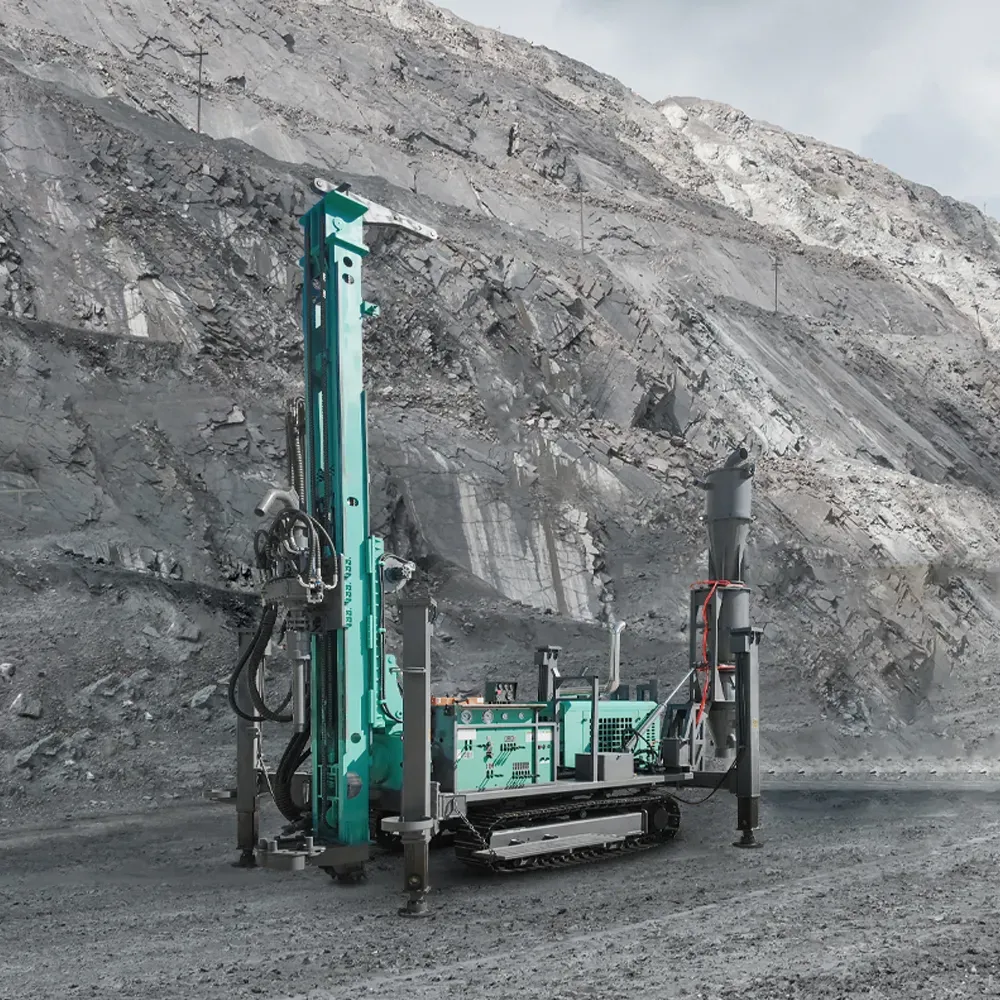

A Reverse Circulation Drilling Rig Is A Professional Drilling Equipment That Operates On The Reverse Circulation Principle. It Rapidly Discharges Rock Cuttings And Mud From The Hole Through Negative Pressure Inside The Drill Pipe, Realizing Efficient Slag Removal And Continuous Drilling. It Can Be Adapted To Various Complex Formations Such As Sand Layers And Pebble Layers, And Is Mainly Used In Scenarios Like Bridge Pile Foundations, Water Well Construction, And Water Conservancy Projects. It Not Only Improves Drilling Efficiency But Also Reduces The Risk Of Hole Wall Collapse, Ensuring The Quality Of Hole Formation
Prices are for reference only. Actual quotes will be provided based on specific requirements. We have a professional technical and service team that strives to make everything perfect.

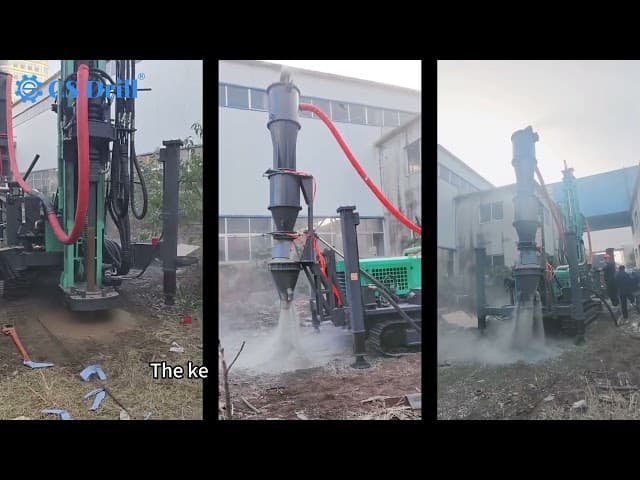

Click to play video

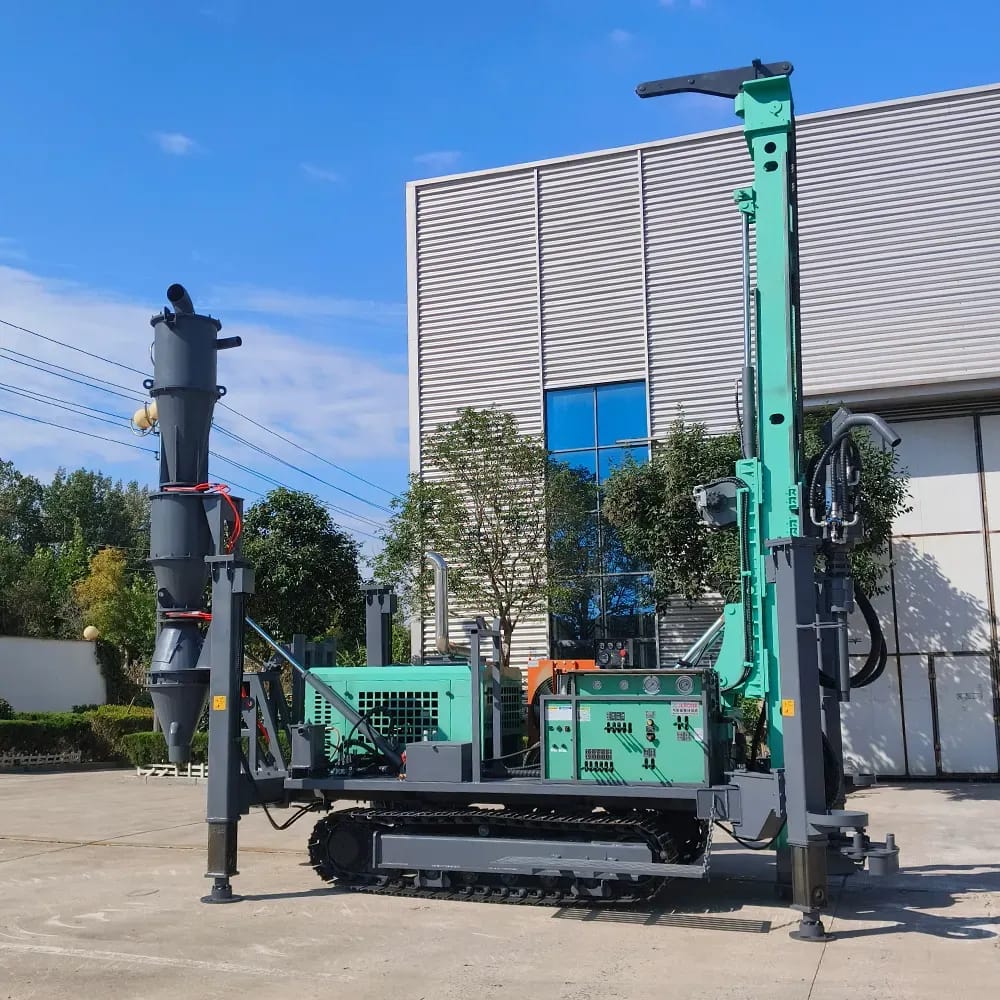

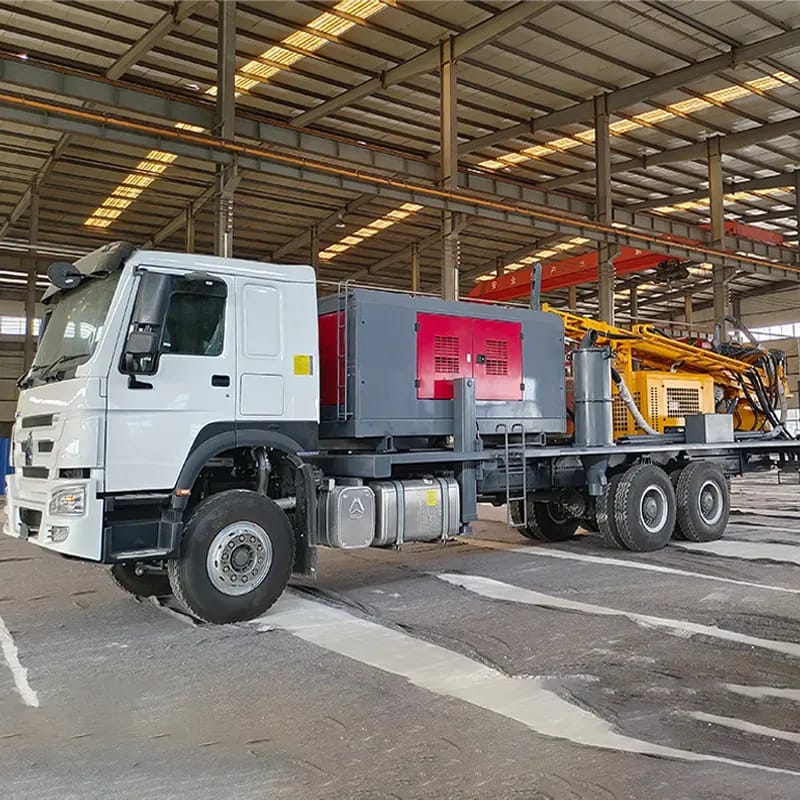

| Model/Item | Unit | CSRC-350 | CSRC-500 | CSCZRC-350 | CSCZRC-500 |
| Weight | kg | 8000 | 12000 | 14T (Excluding Air Compressor) | 14T (Excluding Air Compressor) |
| Dimension(Transport) | mm | 5900*2100*2500 | 6300*2100*2500 | 11000*2700*3100 | 11000x2700x3100 |
| Dimension(Working) | mm | 4200*3000*6100 | 4500*3000*6800 | / | / |
| Drilling Depth | m | 350 | 500 | 350 | 500 |
| The Hole Diameter | mm | 105-400 | 105-400 | 105-400 | 105-400 |
| Drill Pipe Diameter | / | Φ89 Φ102 | Φ89,Φ102,Φ114 | Φ89 Φ102 | Φ89,Φ102,Φ114 |
| Drill Head Lift Force | kN | 260 | 300 | 260 | 300 |
| Drill Head Feed Force | kN | 130 | 150 | 130 | 150 |
| Rotary Speed | rpm | 40-160 | 40 - 160 | 40-160 | 40-160 |
| Max. Torque | N.m | 10000 | 12000 | 10000 | 12000 |
| Drill Head Feed Stroke | mm | 3300 | 3300 | 3300 | 3300 |
| Drill Mast Slide Stroke | mm | 800 | 1000 | 800 | 1000 |
| Hydraulic Pumps | / | 160ml/r, 16MPa | 160ml/r, 16MPa | 160ml/r, 16MPa | 160ml/r, 16MPa |
| Hydraulic Cooling System | / | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
| Mechanical Winch Capacity | kN | 15 | 20 | 15 | 20 |
| Power Unit | / | Weichai 6-cylinder engine 129kw | Cumins 6 - cylinder engine 132kw/2400 | Weichai 6-cylinder engine 129kw | Cummins 6-cylinder engine 132kw |
| Air Pressure | MPa | 1.7-3.5 | 1.7 - 3.5 | 1.7-3.5 | 1.7-3. 5 |
| Air Consumption | m³/min | 17-42 | 17-42 | 1.7-42 | 17-42 |
| Equipped with Hammer | / | Medium and High pressure series | Medium and High pressure series | Medium and High pressure series | Medium and High pressure series |
| Mud Pump | / | BW160/BW250 (optional) | BW160/BW250 (optional) | BW160/BW250 (optional) | BW160/BW250 (optional) |
| Crawler Climbing Angle | ° | 25 | 25 | 25 | 25 |
| Crawler Walking Speed/Waking Speed | km/h | 2-3 | 2-3 | 0-80 | 0-80 |

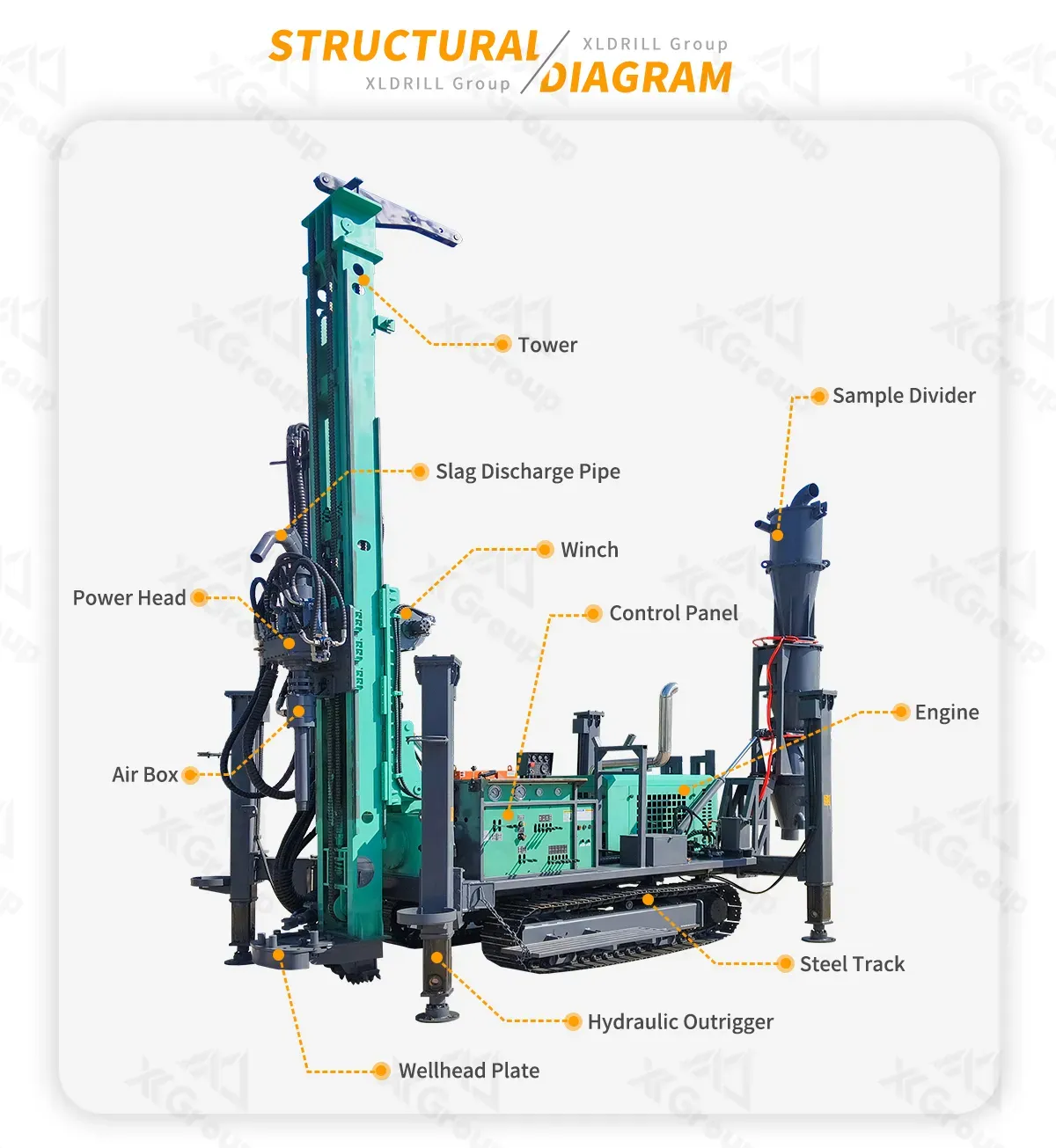

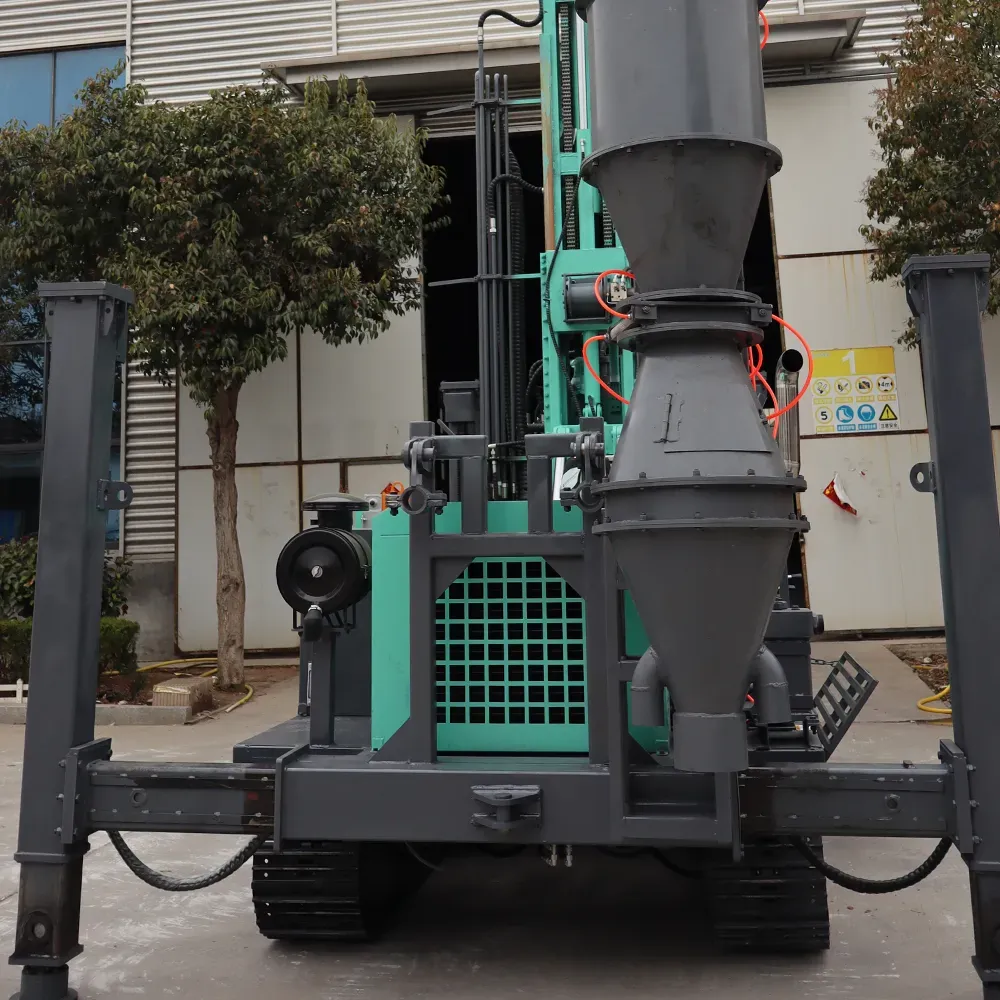

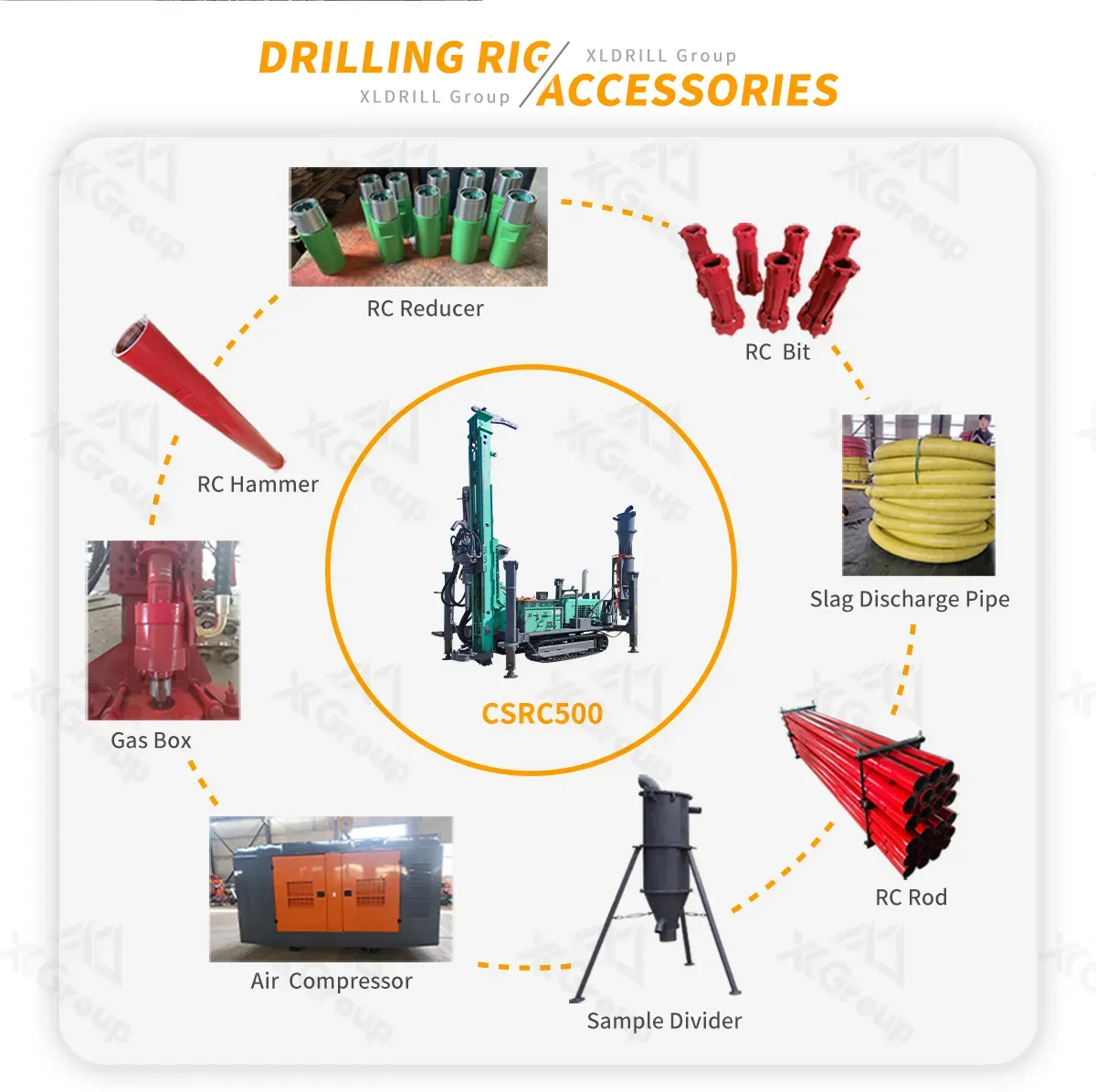

1. The Rotary Sample Divider Uses A Design Structure Similar To That Of Atlas. It Is Integrated On The Drilling Rig, Saving The Trouble Of Transportation.
2. The Main Pump, Hydraulic Motor, Hydraulic Valve And Other Key Components Of The Drilling Rig All Use The Well-Known Brand - Huade.

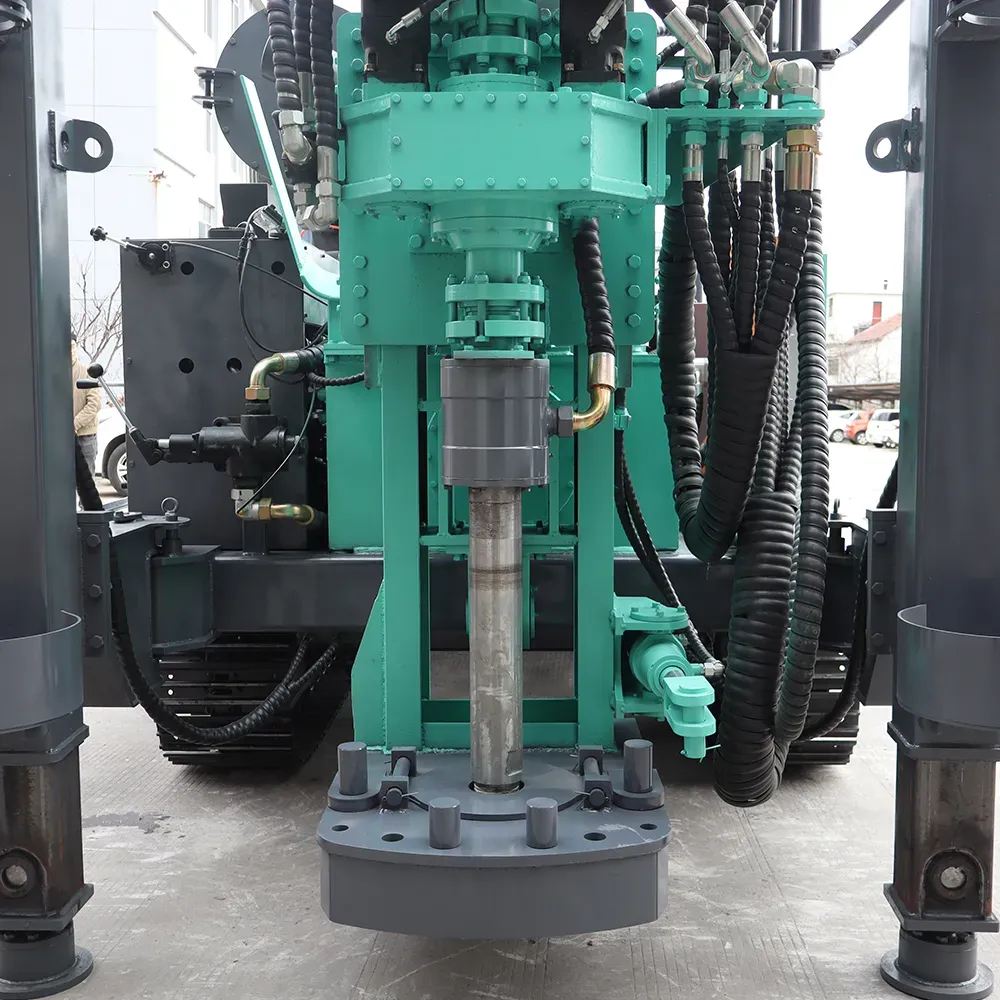

3. The Slag Discharge Pipe On The Power Head Is Made Of Special Steel And Thickened, Which Extends The Service Life By More Than 10 Times. The Diameter Of The Slag Discharge Pipe Is Increased To 102MM, Reducing The Possibility Of Slag Blockage.
4. Using Cummins 132KW Engines, It Is Easier To Buy Spare Parts Abroad And Easier For Maintenance Personnel To Maintain And Repair.
