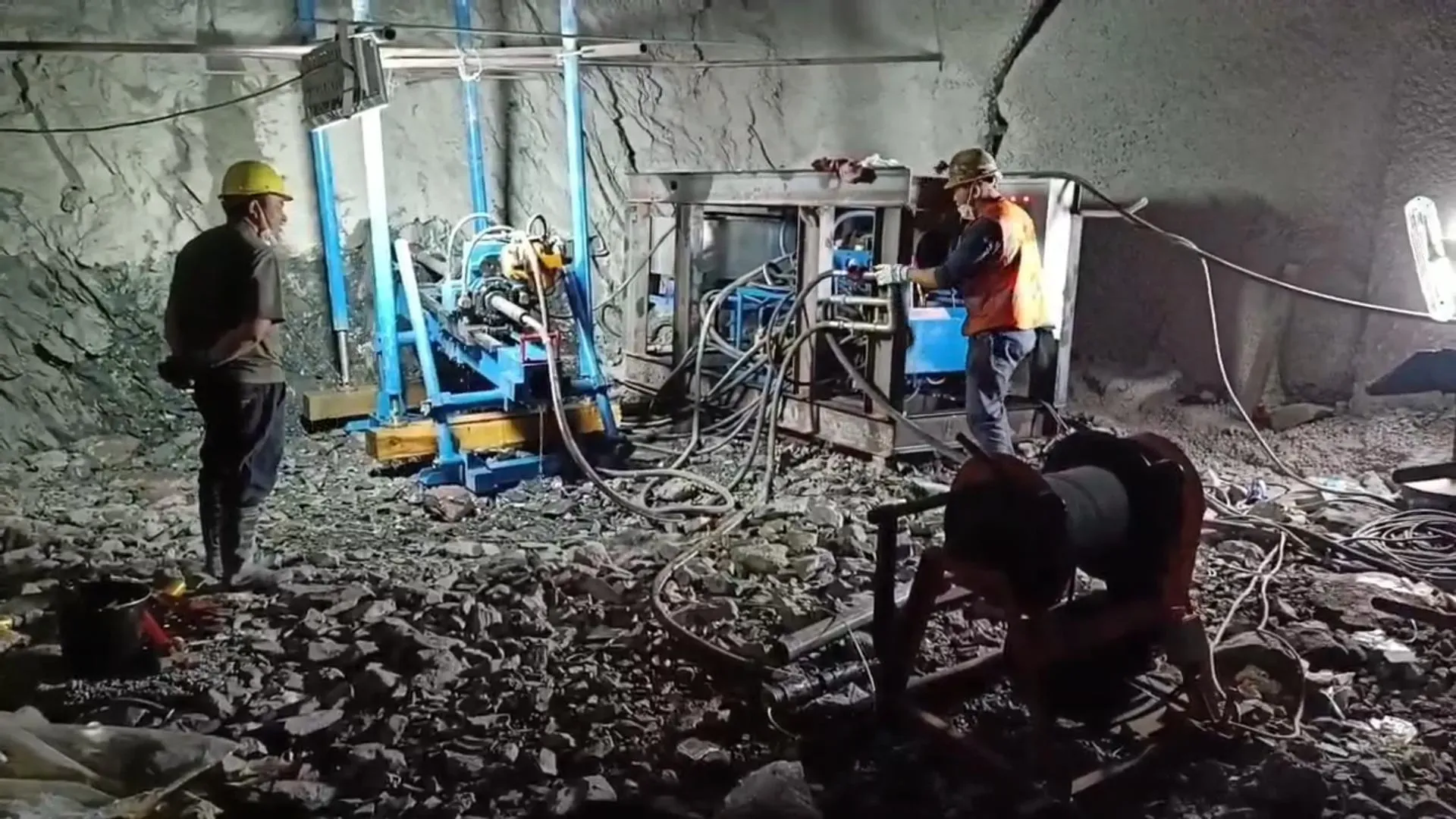

A Underground Exploration Drilling Rig refers to specialized drilling equipment used ingeological exploration projects for borehole advancement within underground minetunnels. lt is primarily employed in roadway operations for conducting deep geologicalprospecting, implementing gas drainage systems, performing grouting/drainageoperations,and establishing ventilation channels.
Prices are for reference only. Actual quotes will be provided based on specific requirements. We have a professional technical and service team that strives to make everything perfect.

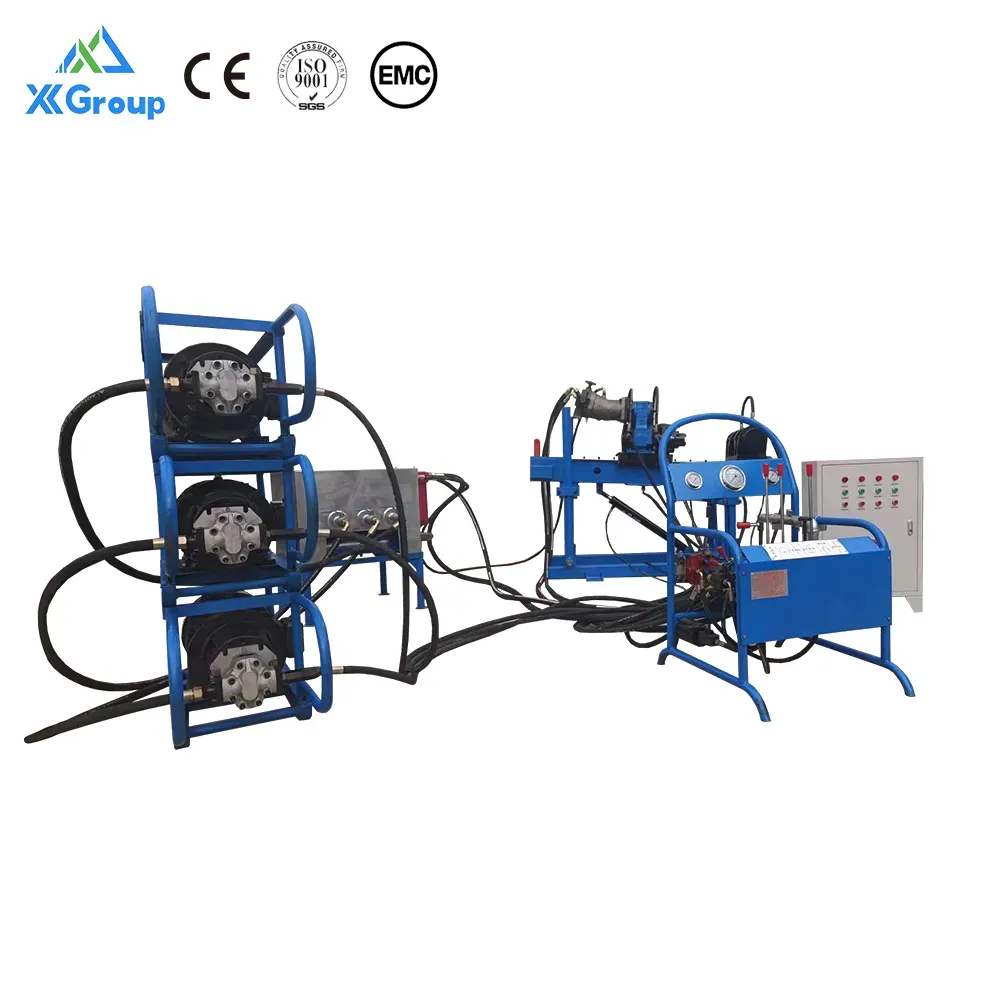

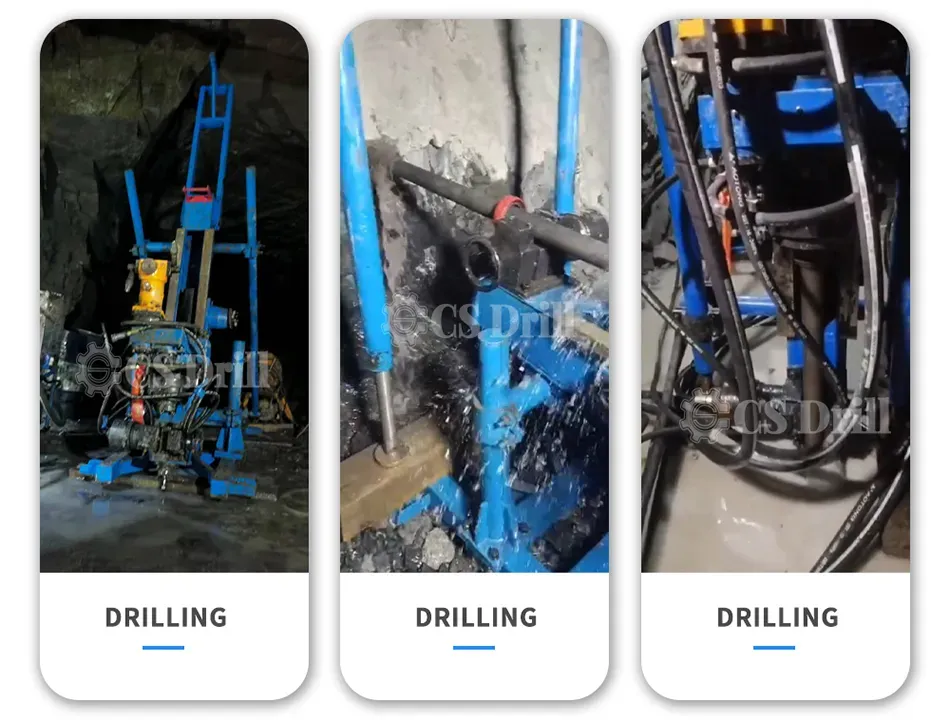

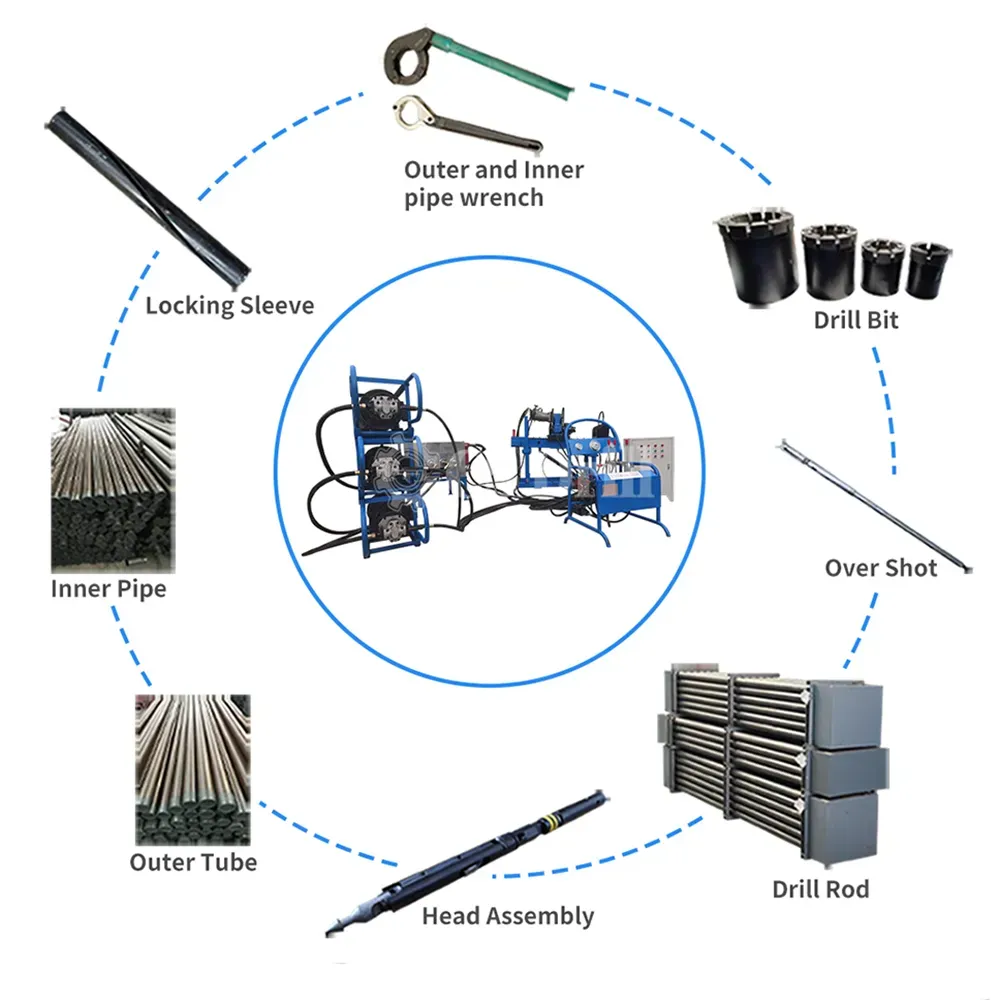

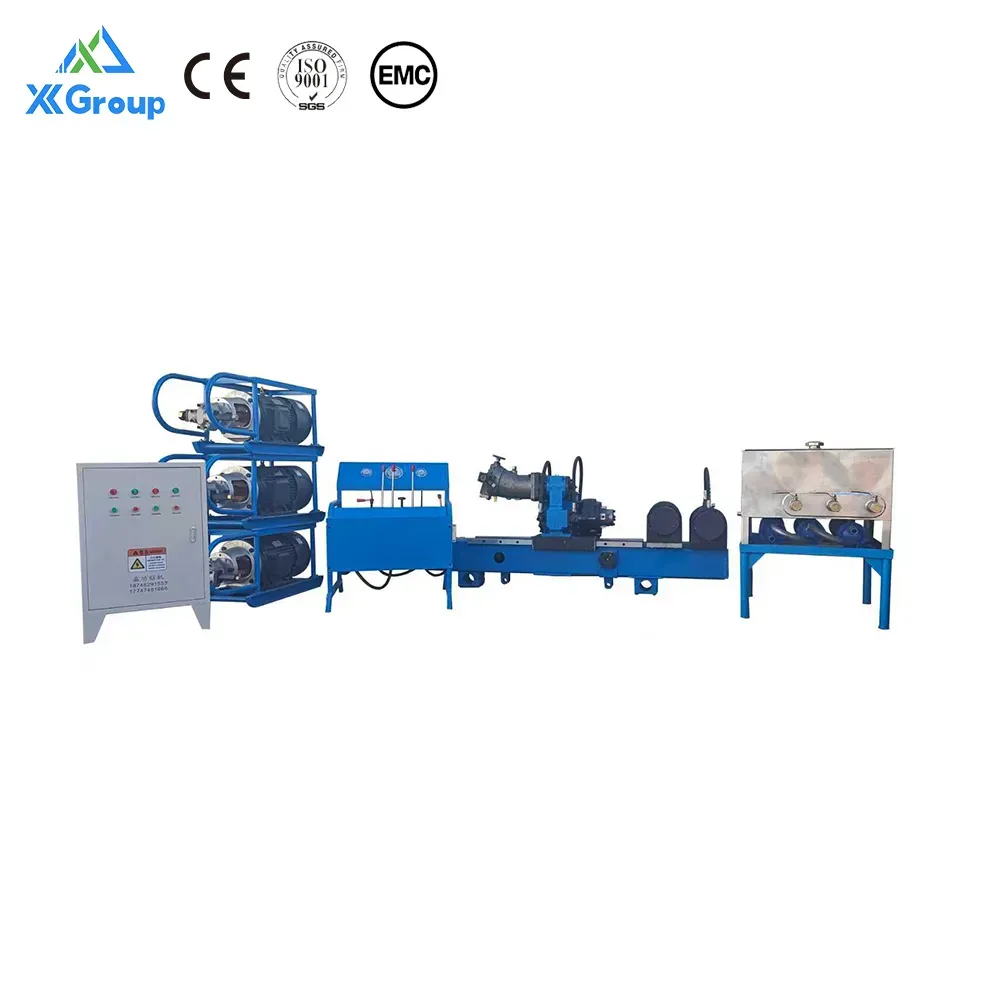

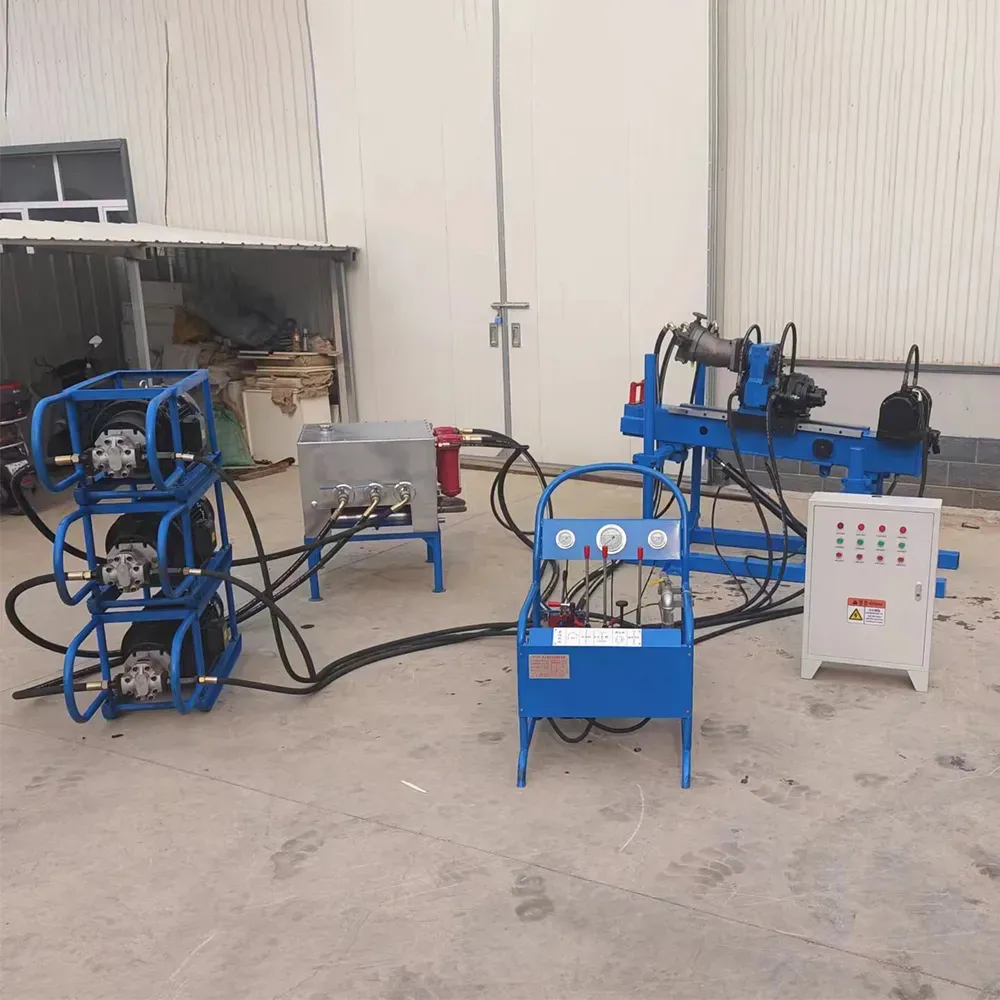

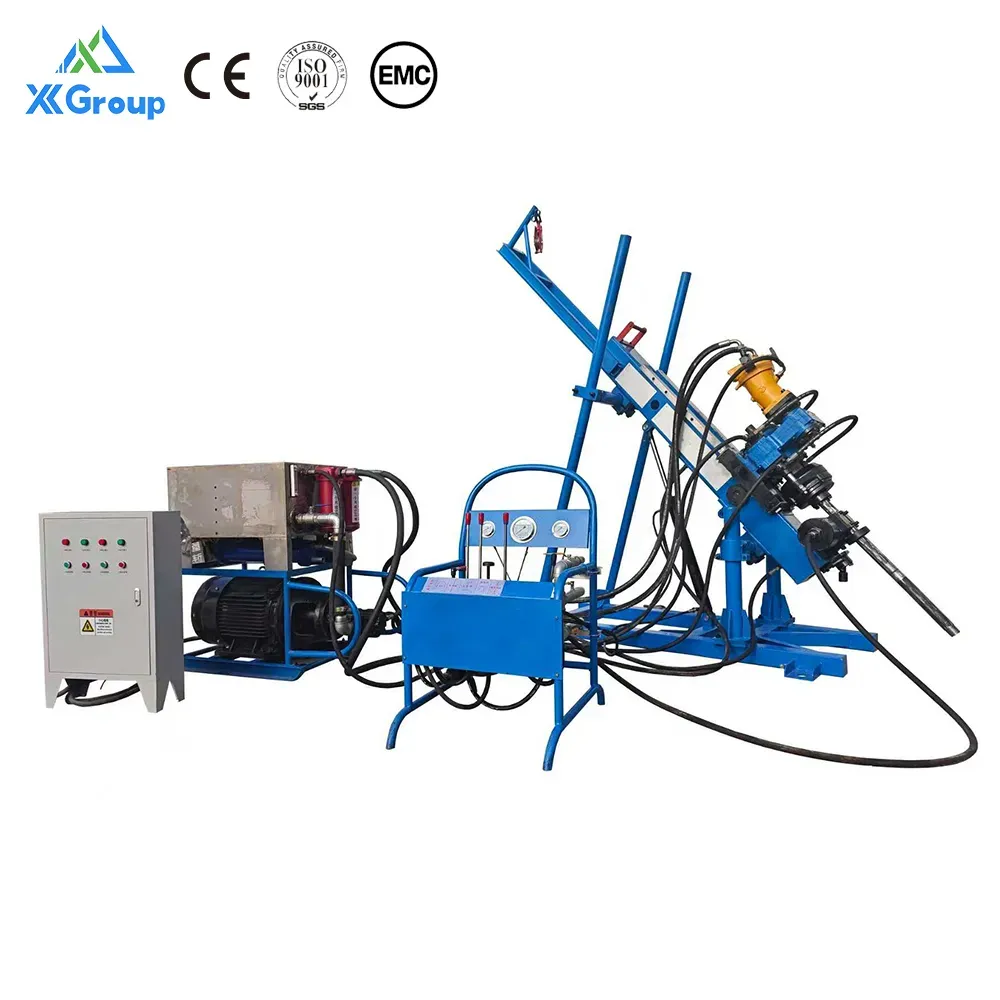

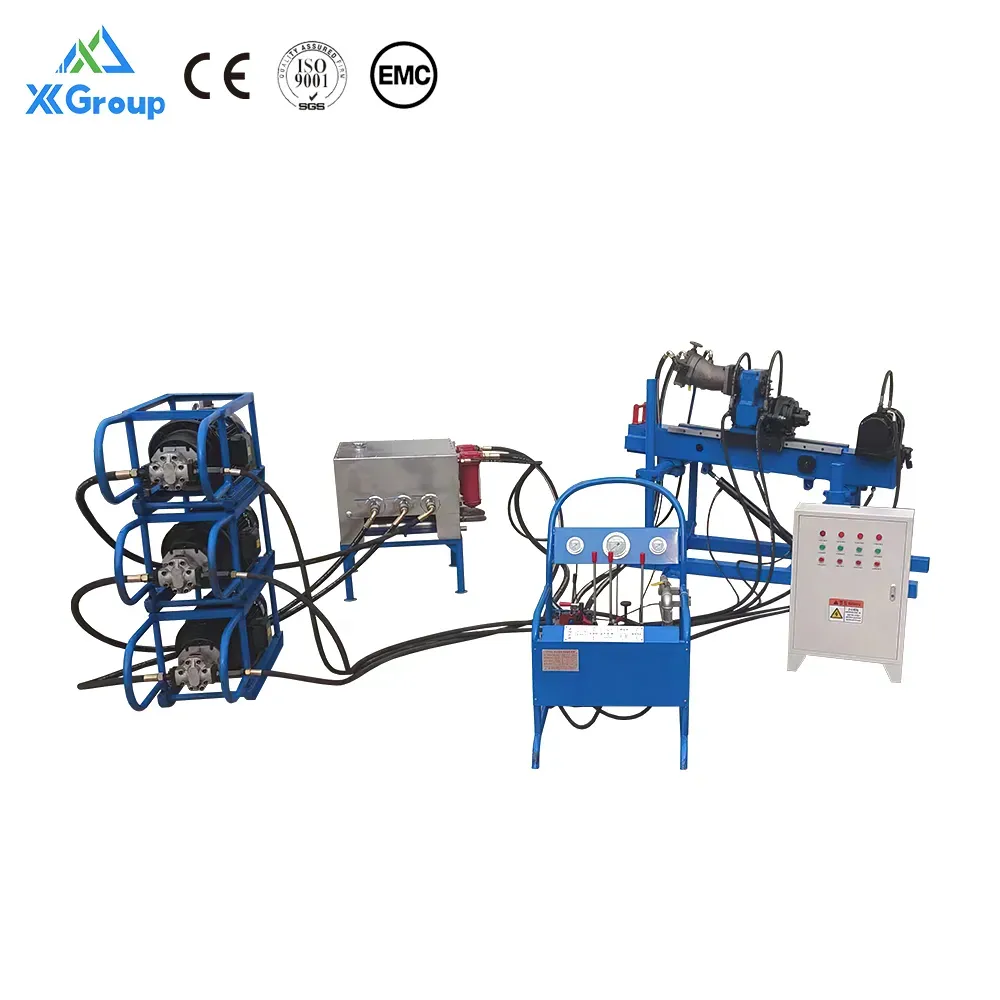

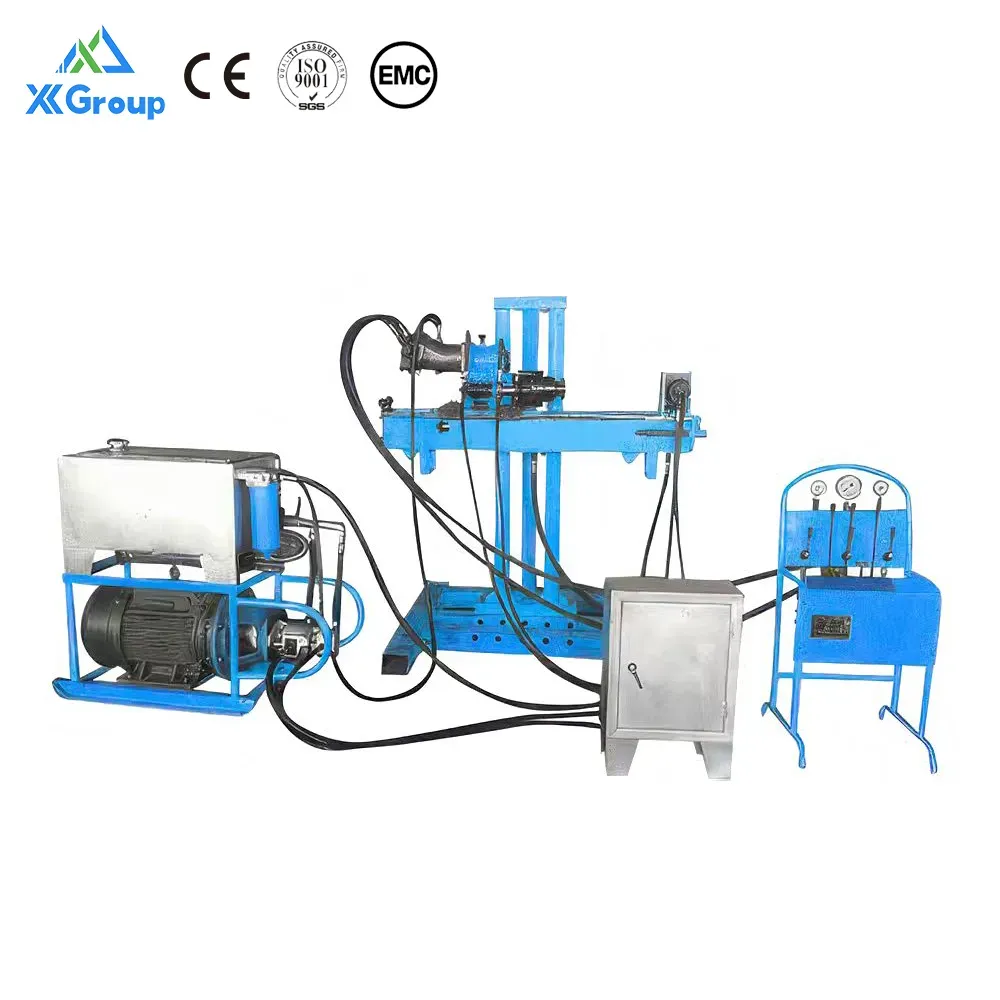

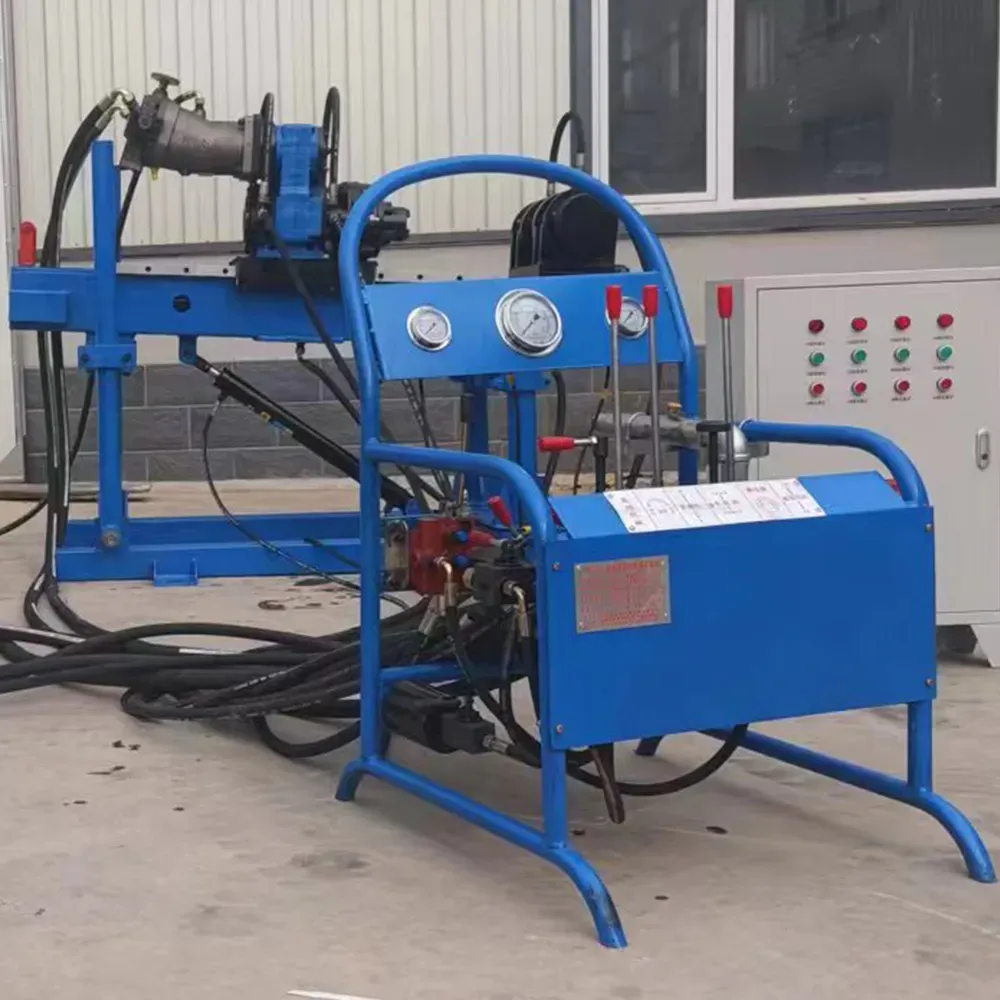

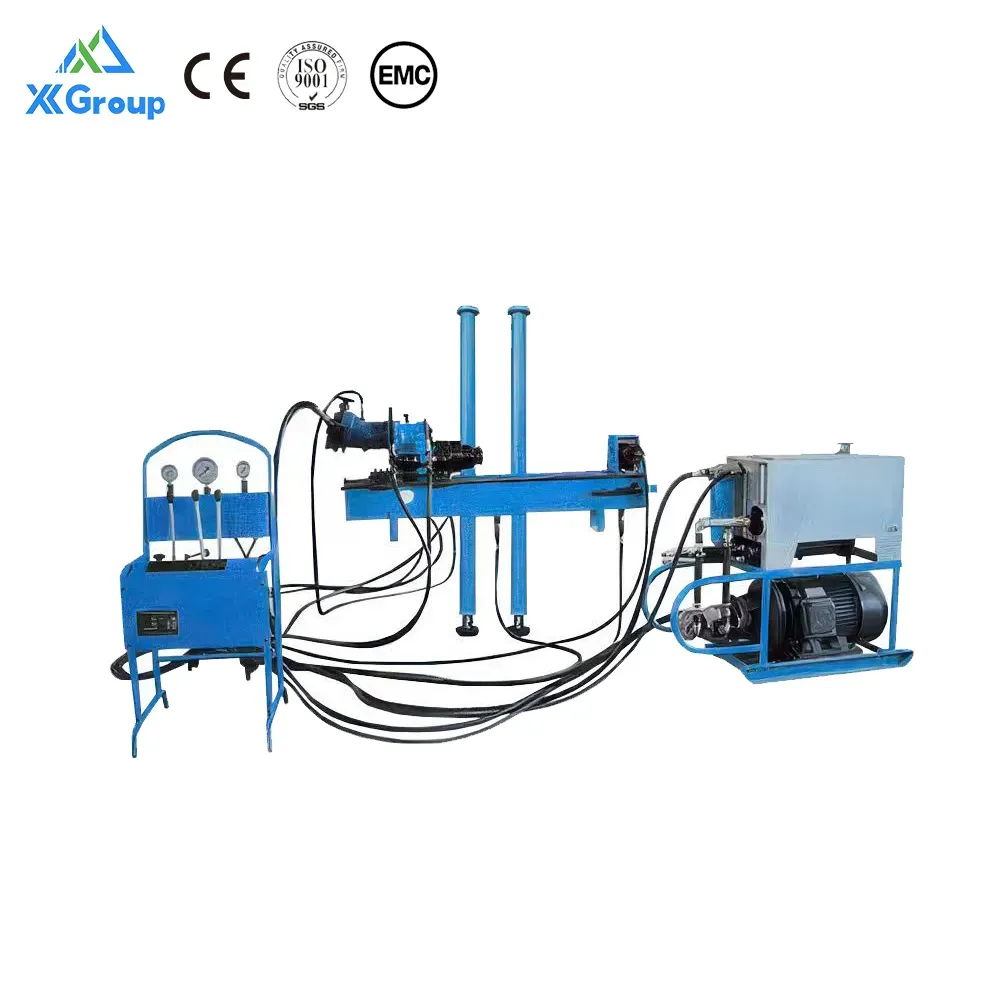

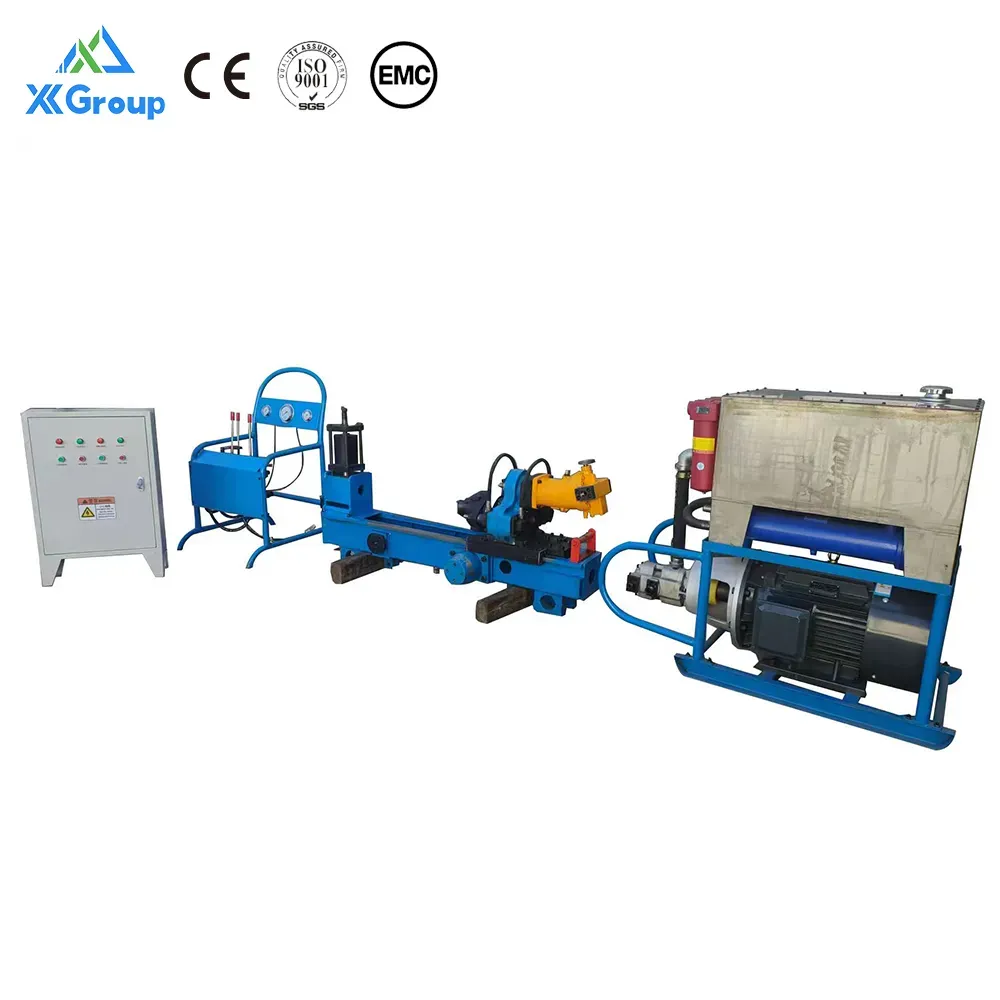

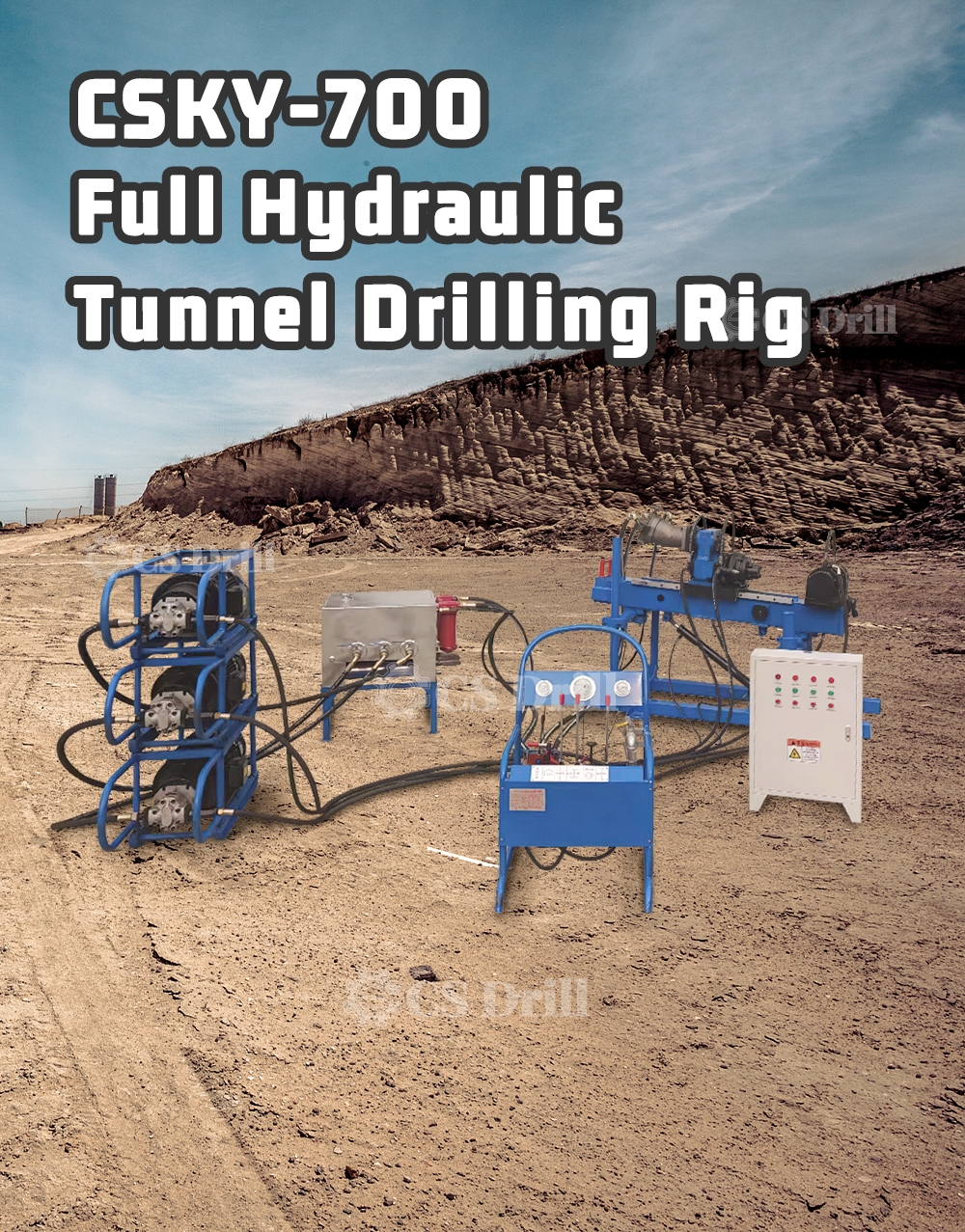

| Model/Item | CSKY150 | CSKY200 | CSKY300 | CSKY500 | CSKY700 | CSKY1000 |
| Drilling Angle | Tunnel 0-360° | Tunnel 0-360° | Tunnel 0-360° | Tunnel 0-360° | Tunnel 0-360° | Tunnel 0-360° |
| Ground Surface 0-90° | Ground Surface 0-90° | Ground Surface 0-90° | Ground Surface 0-90° | Ground Surface 0-90° | Ground Surface 0-90° | |
| Drilling Depth | Φ33 mm-150m | Φ55.5 mm-100m | Φ33 mm-300m | Φ43 mm-500m | Φ43 mm-700m | Φ43 mm-1000m |
| Φ43 mm-110m | Φ43 mm-120m | Φ43 mm-270m | Φ55.5(BQ) mm-Horizontal 460m,Vertical 500m | Φ55.5(BQ) mm-Horizontal 600m,Vertical 650m | Φ55.5(BQ) mm-Horizontal 750m,Vertical 900m | |
| Spindle Speed | 400-1400 rpm(manual continuously variable speed) | 400-1400 rpm (manual continuously variable speed) | 300-1100 rpm(manual continuously variable speed) | 190-900 rpm (manual continuously variable speed) | 180-850 rpm (manual continuously variable speed) | 160-750 rpm (manual continuously variable speed) |
| Rated Feed Force | 38 Kn | 38 Kn | 43 Kn | 80 Kn | 95 Kn | 105 Kn |
| Feed Stroke | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm |
| Water Pump Motor | MN2-132S-4 | MN2-132S-4 | MN2-132S-4 | MN2-225S-4 | MN2-225S-4 | MN2-225S-4 |
| 380V/3KW | 380V/11KW | 380V/5.5KW | 380V/45KW | 380V/22KW*3 | 380V/37KW*2 22*1 | |
| Host Dimensions | 1800x400x300 mm | 1800x400x300 mm | 1850x450x350 mm | 610x1050x530 mm | 610x1050x530 mm | 610x1050x530 mm |
| Operation Desk Dimensions | 610x1050x530 mm | 610x1050x530 mm | 610x1050x530 mm | 1280x1200x800 mm | 1280x1200x800 mm | 1280x1200x800 mm |
| Power car Weight | 210 kg (Decomposable) | 288 kg (Decomposable) | 470 kg (Decomposable) | 210 kg (Decomposable) | 288 kg (Decomposable) | 470 kg (Decomposable) |
| Power car Dimensions | 1140x1010x560 mm | 1140x1010x560 mm | 1180x1110x660 mm | 1140x1010x560 mm | 1140x1010x560 mm | 1180x1110x660 mm |
Product Features:
1. Small size, light weight, easy installation.
2. Hollow shaft design, the drill rod length is not limited by the drilling rig feed stroke. lt can dril at any inclination of 360°

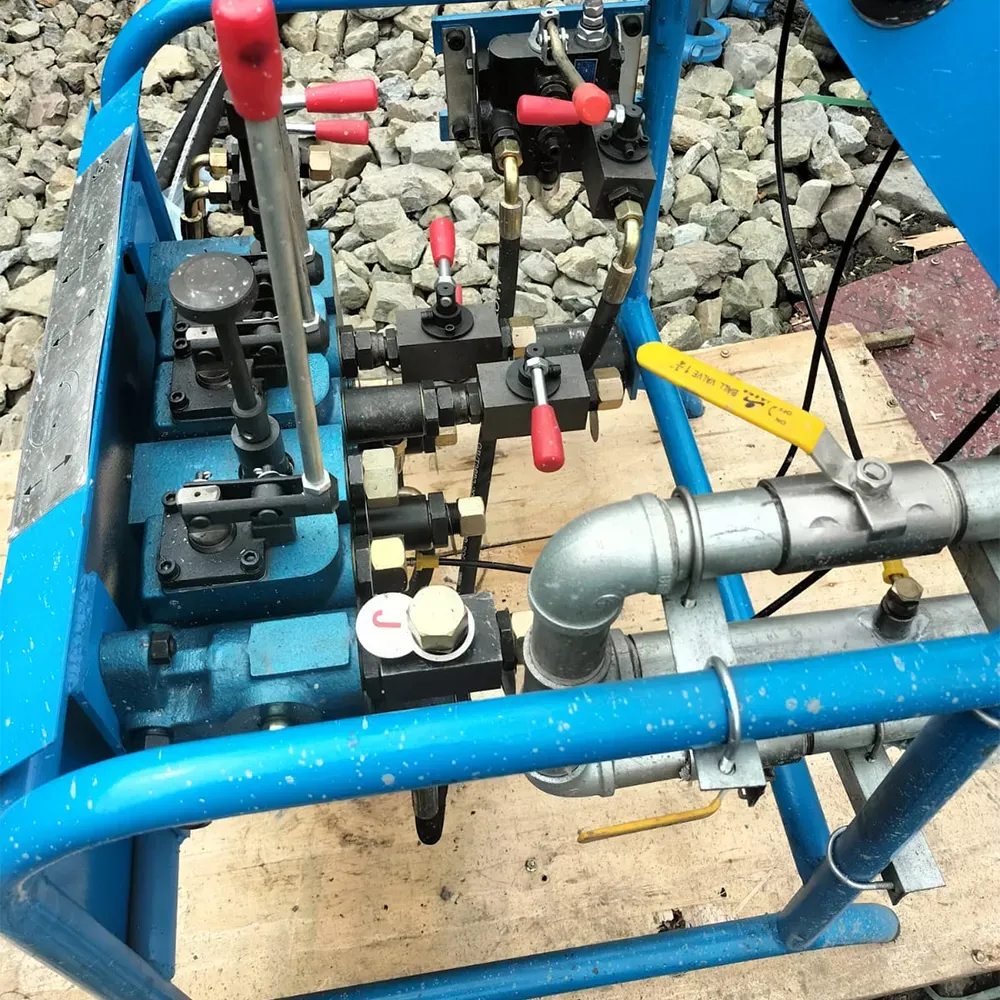

3. The driling rig is flexible in layout, and the drill rod is mechanically twisted and unloaded, which reduces the laborintensity of workers and improves work efficiency.
4. lt can be put into production in the original transportation and prospecting tunnels, which protects the overall structureof the mine. lt can also be used for 0-90 degree drilling on the surface.
5. Good disassembly and convenient relocation and transportation. $33-$43 drill rods can be used in the same machine,and replacement only takes 15 minutes.
6. Special customized oil temperature cooler, high-pressure oil cooling fast, low temperature use, can protect the servicelife of motors, oil pumps, and rubber seals.
