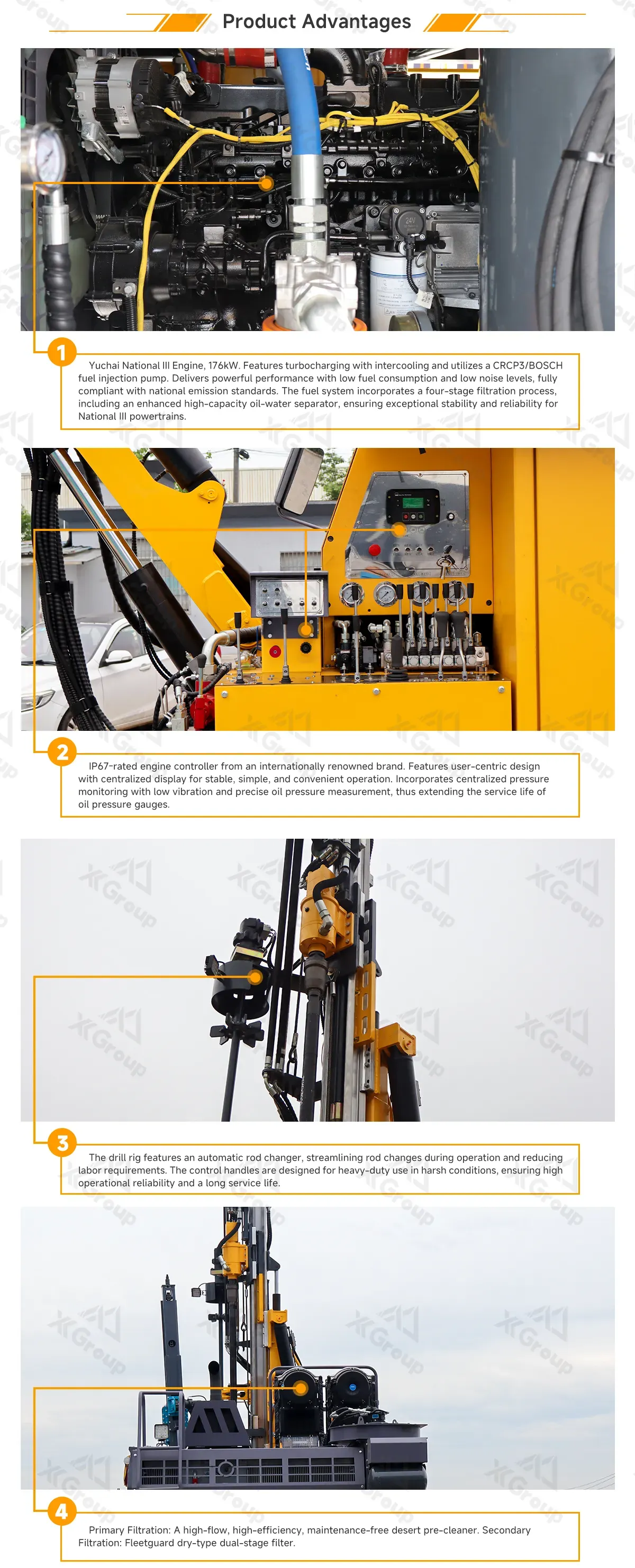

Product Features:
1. Yuchai National l 176kW Engine:; Turbocharged and intercooled, equipped with a CRcP3/B0scH fuel injection pumpDelivers powerful performance with low fuel consumption.
2. lP67-Rated Engine Controller linternational Brand): Features user-friendly design with a centralized display. Ensures stable,simple,and convenient operation.
3. Automatic Rod Changer (Grip-Type Lever Operation): Rod handling (loading/unloading, rod changer access) is performedvia front/back/left/right lever movements to operate the robotic arm. The heavy-duty lever is designed for harsh environments, offering high reliability and long service life.
4. lmported Brand Pressure Regulation & Air Intake Unloading Control System: Provides simple control, stable pressureoperation, low failure rate, fast venting speed, and minimal system pressure shock. The air intake unloading system incorpo-rates a retrofitted disc-type structure, resolving startup difficulties in various working conditions.
Model Numbers
Application

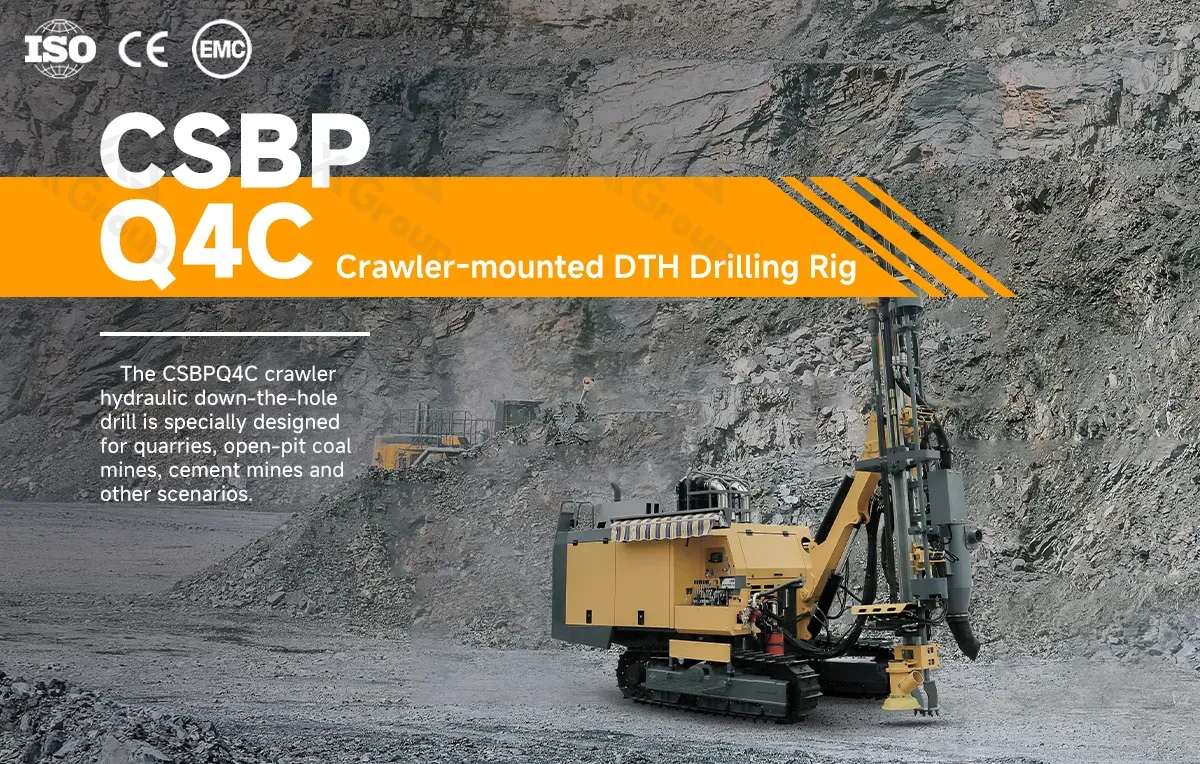

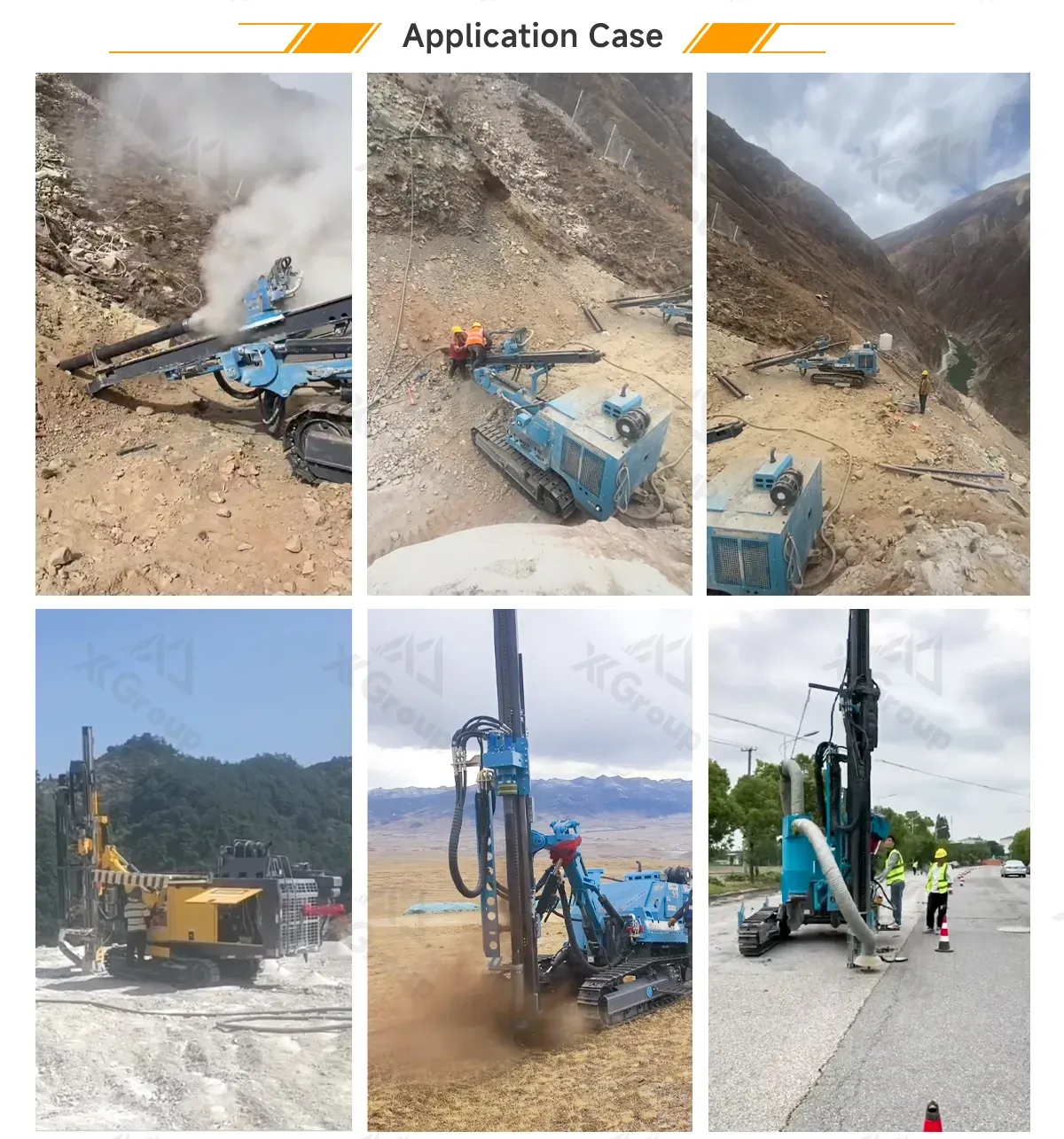

A blast drill is a device used to drill blast holes for blasting operations. It helps break ore and drill blast holes to create construction space for subsequent mining and transportation, and is widely used in fields such as mineral mining and infrastructure construction.
Prices and pictures are for reference only. Actual quotes will be provided based on specific requirements. We have a professional technical and service team that strives to make everything perfect.

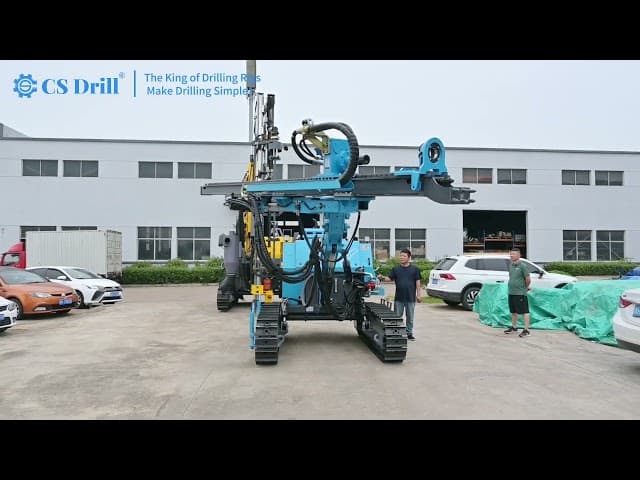

Click to play video
|
Model/Item
|
Unit
|

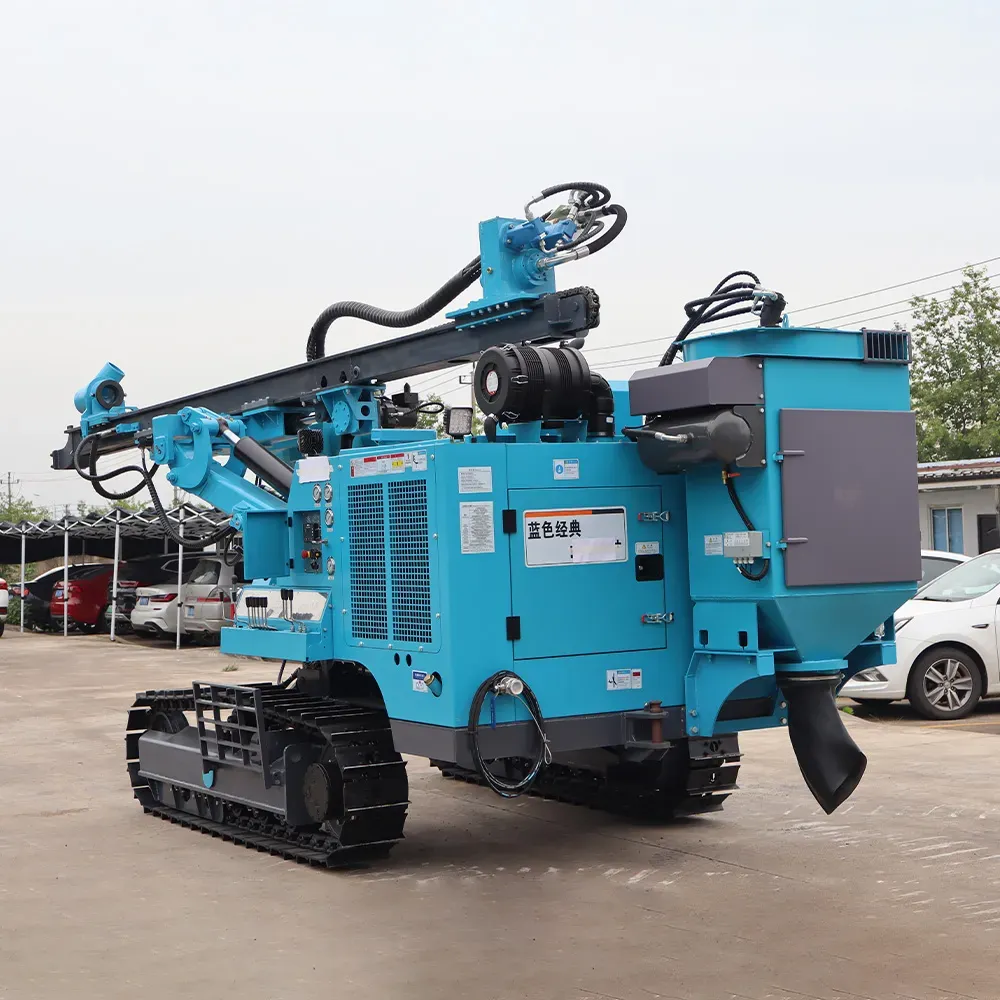

CSBP500
|

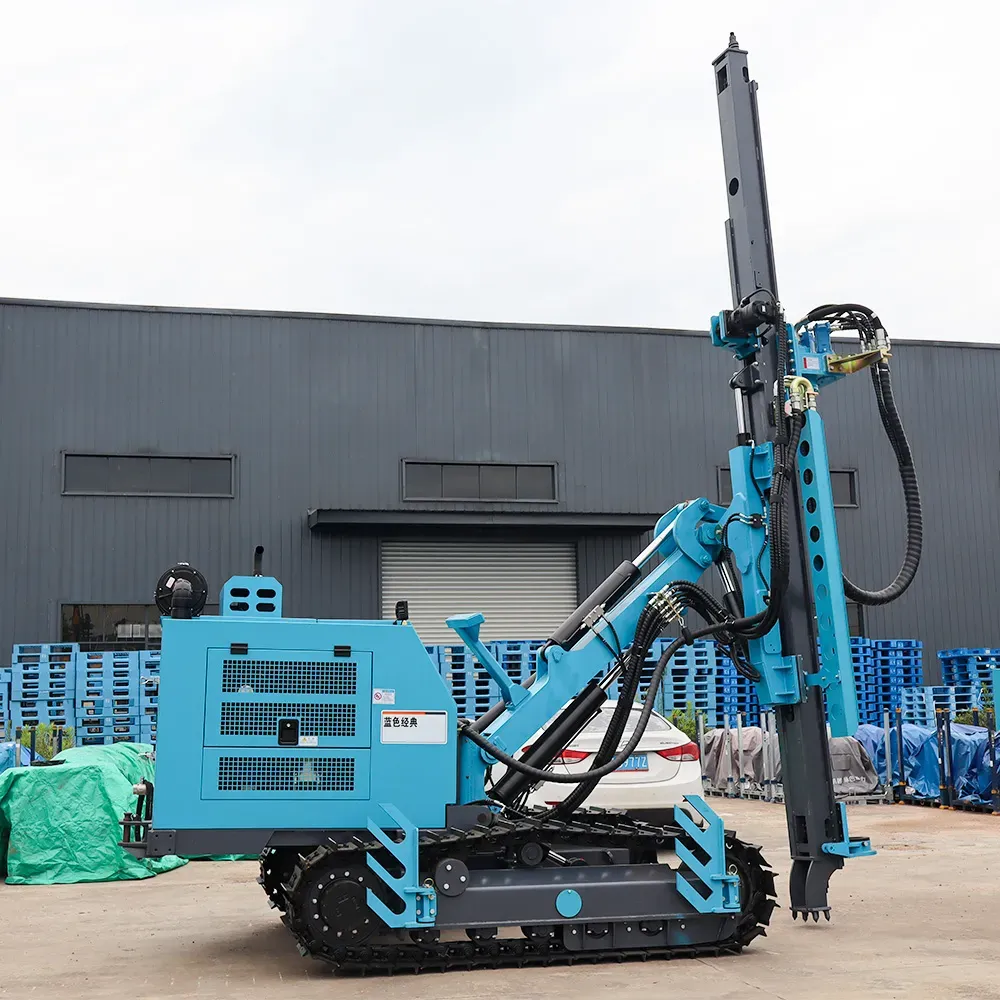

CSBP600
|
CSBPQ4C
|
|
Engine
|
/
|
Yuchai
|
Yuchai
|
Yuchai
|
|
Rated Power
|
/
|
73.5kw@2200r/min
|
88kw@2200r/min
|
176kw@2200r/min
|
|
Recommended Operating Speed
|
r/min
|
1500
|
1500
|
1500
|
|
Rotation Speed
|
r/min
|
80
|
70
|
/
|
|
Displacement
|
m³/min
|
/
|
/
|
13
|
|
Maximum Torque
|
N.m
|
3600
|
11000
|
1200-1800
|
|
Rotary Head Spindle Thread
|
/
|
API 3 ½
|
API 3 ½
|
API 3 ⅜
|
|
Rotary Head Structure
|
/
|
Double Motor Power
|
Three-Motor Power
|
Two-Motor Power
|
|
Track Gauge
|
mm
|
300
|
300
|
300
|
|
Chassis Leveling Angle
|
°
|
±13
|
±13
|
±10
|
|
Travel Speed
|
km/h
|
3
|
High Range: 3.7 km/h Low Range: 2.0 km/h
|
High Range: 3.3 km/h Low Range: 2.1 km/h
|
|
Gradeability
|
°
|
≦25
|
≦25
|
≦25
|
|
Dry Dust Collector (Optional)
Wet Dust Collector (Optional)
|
/
m³
|
15PCS
|
0.22
|
14PCS
|
|
Drilling Diameter Range
|
mm
|
90-203
|
203-400
|
90-115
|
|
Compatible Drill Rod Range
|
/
|
76/89
|
76/89/102
|
64
|
|
Compatible with DTH Hammers
|
/
|
3"/4"/5"/6"
|
8"/10"/12”
|
3"/4"
|
|
Exhaust Pressure
|
bar
|
/
|
/
|
20
|
|
Feed Stroke
|
mm
|
3500
|
3500
|
3400
|
|
Maximum Pullback Force
|
kn
|
45/20.5
|
20.5(0ptional 41)
|
17
|
|
Feed Mechanism
|
/
|
Cylinder roller Chain
|
Cylinder roller Chain
|
Cylinder Wire Chain
|
|
Ground Clearance
|
mm
|
310
|
310
|
300
|
|
Overall Length (with Dust Collector)
|
mm
|
6000(6400)
|
6000(6400)
|
8600
|
|
Overall Width
|
mm
|
2000
|
2200
|
2310
|
|
Overall Height
|
mm
|
2400
|
2400
|
2700
|
|
Operating Weight (with Dust Collector)
|
kg
|
5400(6000)
|
7000(7600)
|
10000
|
|
Fuel Tank Capacity
|
L
|
80
|
80
|
400
|
