Product Features:
1. The drilling rig is equipped with a Cummins 194kw engine, which is powerful and provides sufficient power for work.subsequent maintenance is more convenient.
2. The driling rig's rotating head is driven by dual motors to increase the rotation torgue and speed, increase the liftingcylinder and chain, and improve the lifting force and reliability.
3. The driling rig is equipped with automatic rod change and full hydraulic dust collector, which has good dust removaleffect and extends the service life of the machine. The automatic rod change is easy to operate, reduces work intensity andimproves drilling efficiency.

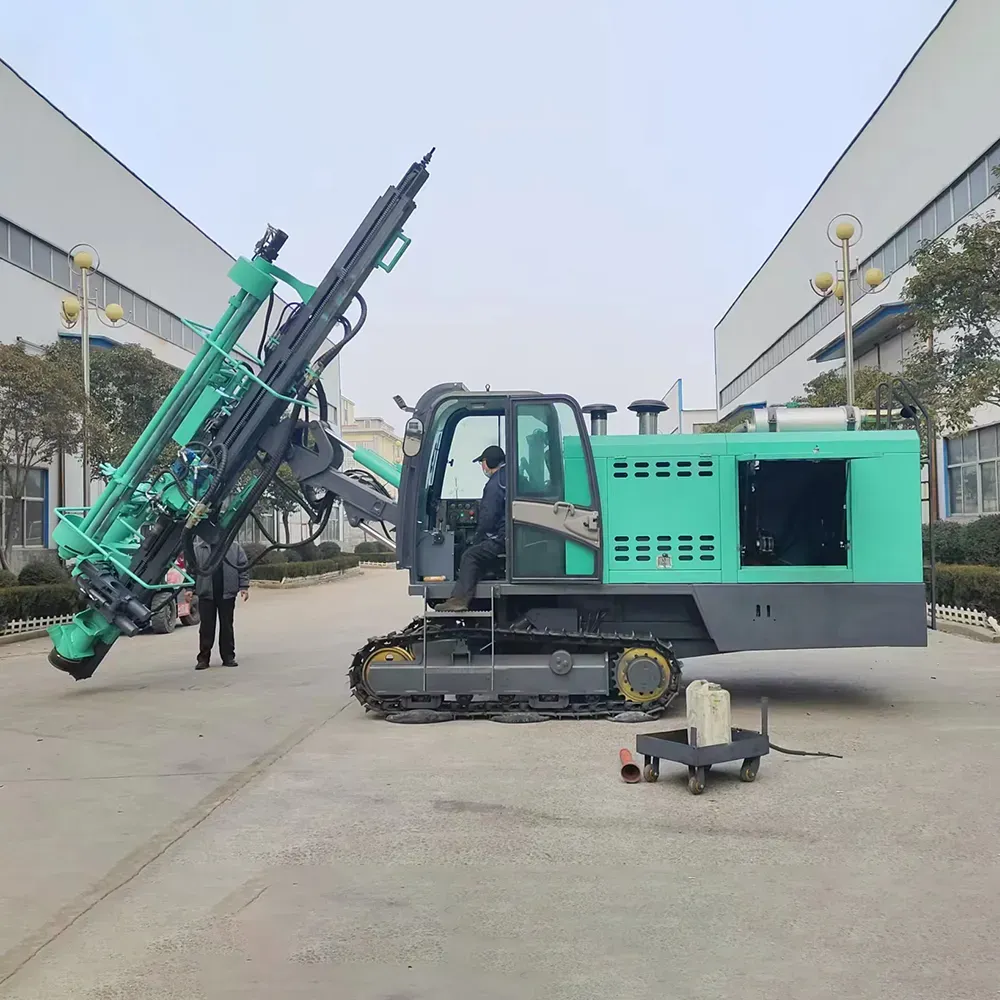

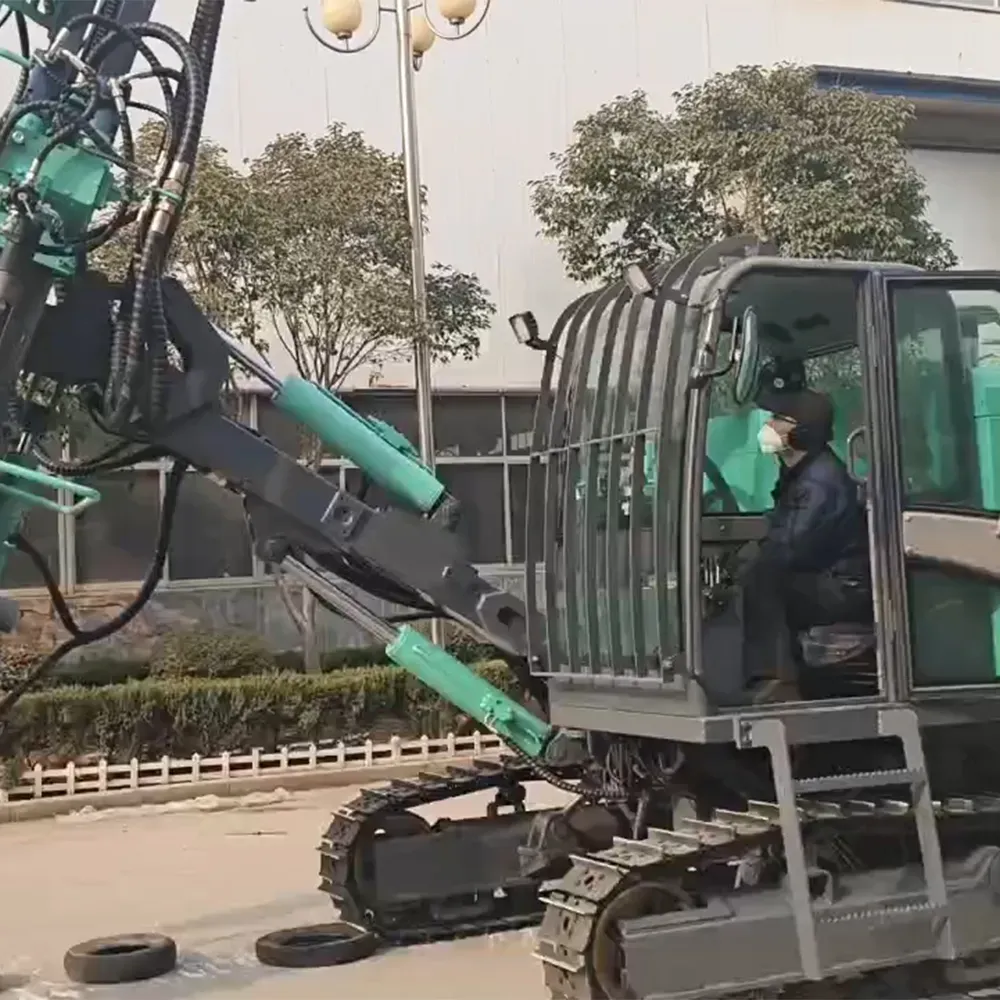

4. The driling rig is equipped with a cab, which is convenient for observing the situation during operation. The cab isequipped with a radio, electric heater, etc.
5. Strengthen the heat dissipation system to avoid high temperature shutdown and reliable performance.6. The control valves are centrally arranged to facilitate the operation and control of the driling rig. The system is reliable,simple and has low maintenance cost.
Model Numbers
Application

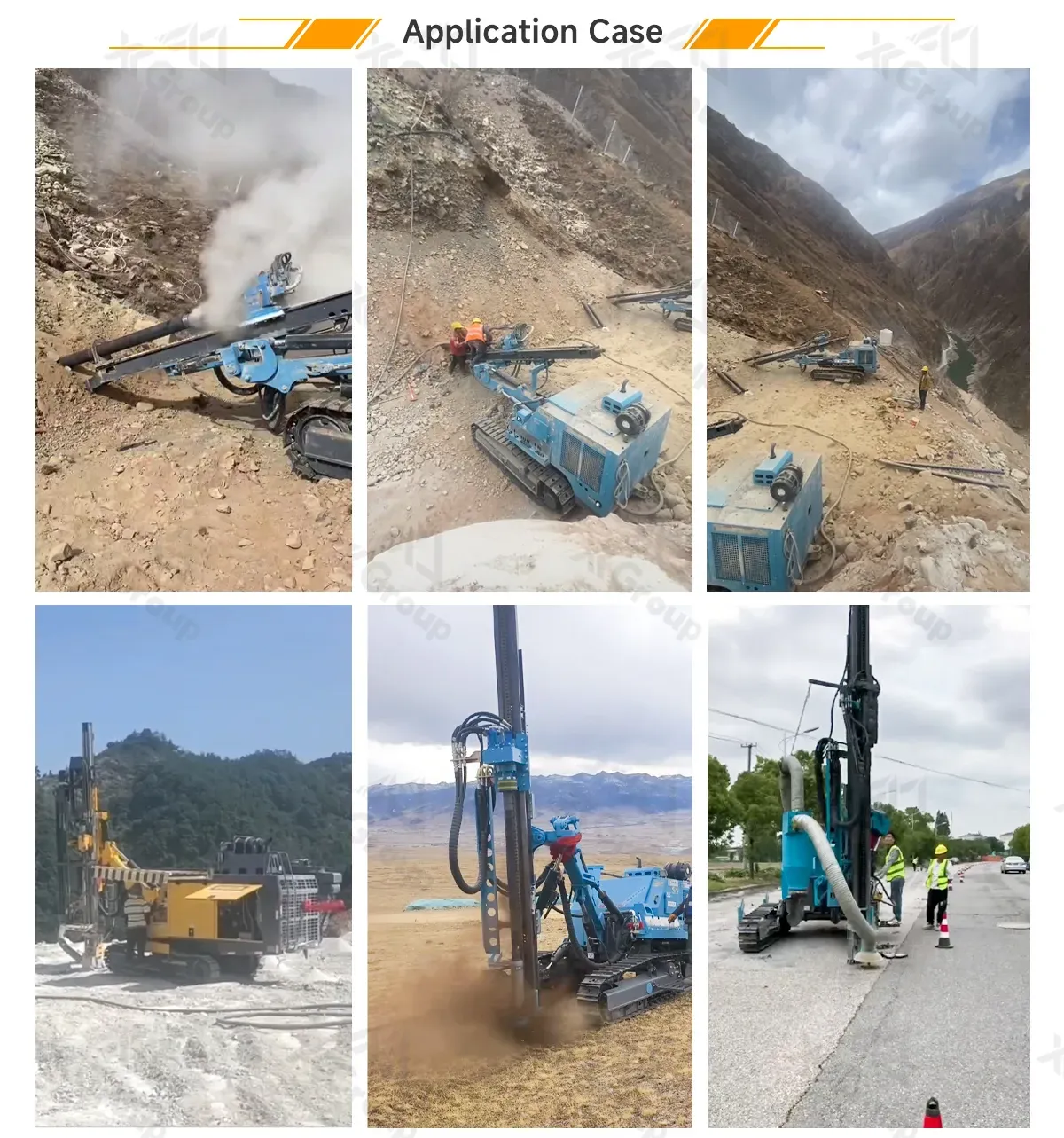

A blast drill is a device used to drill blast holes for blasting operations. It helps break ore and drill blast holes to create construction space for subsequent mining and transportation, and is widely used in fields such as mineral mining and infrastructure construction.
Prices and pictures are for reference only. Actual quotes will be provided based on specific requirements. We have a professional technical and service team that strives to make everything perfect.

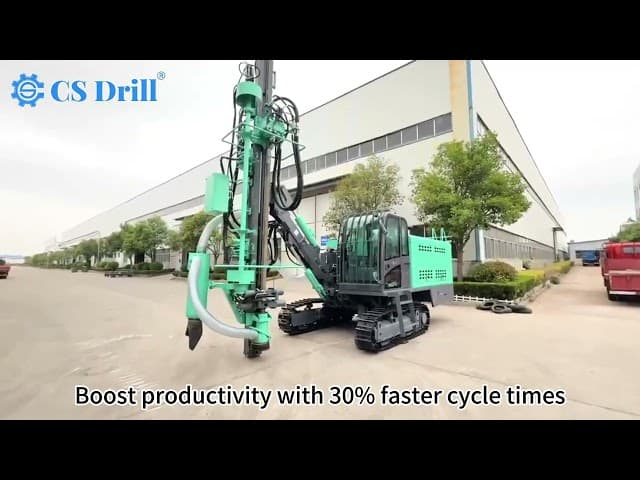

Click to play video
|
Model/Item
|
Unit
|

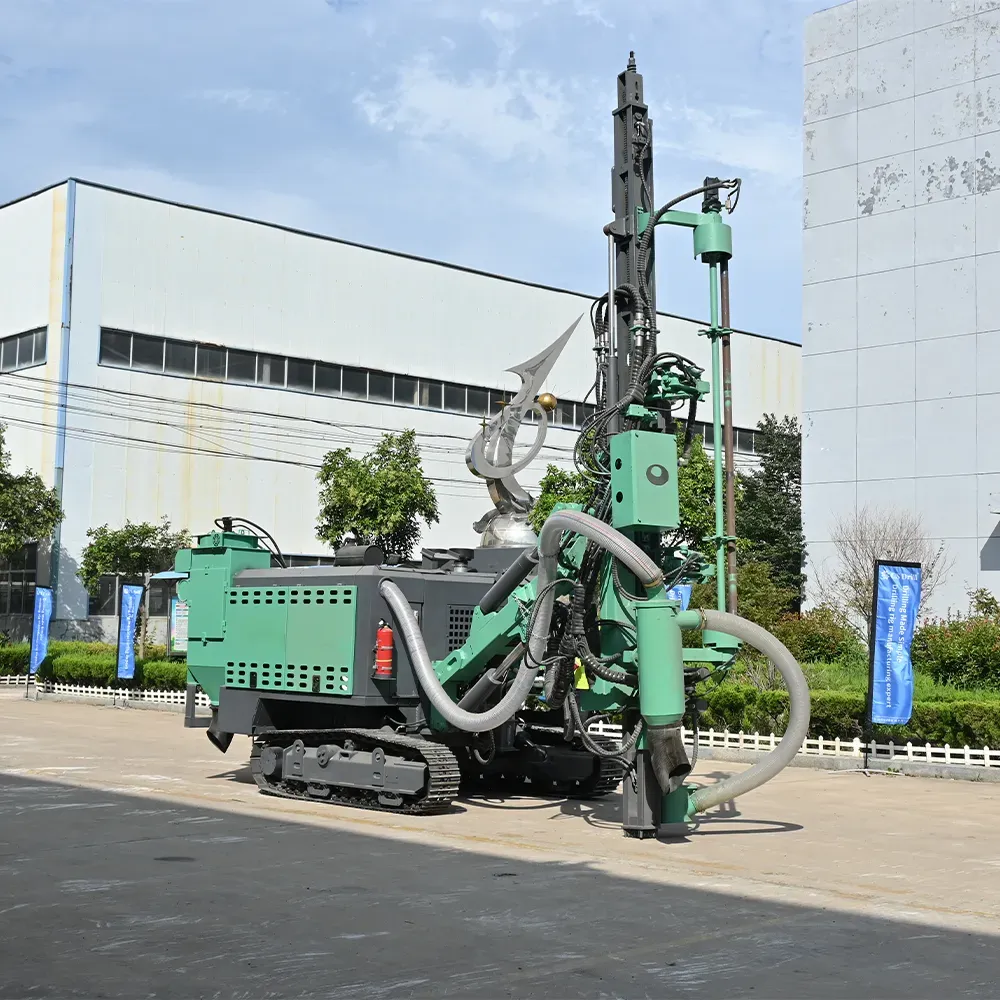

CSBP431H
|

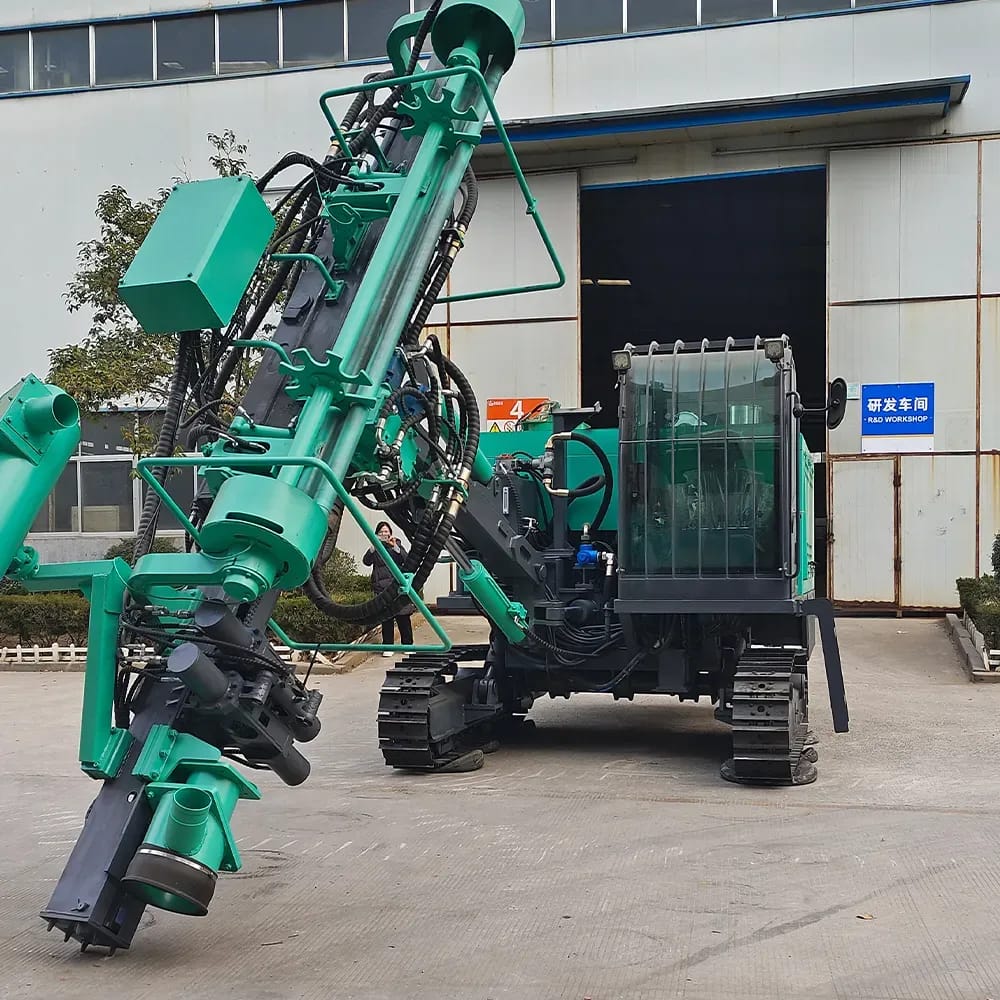

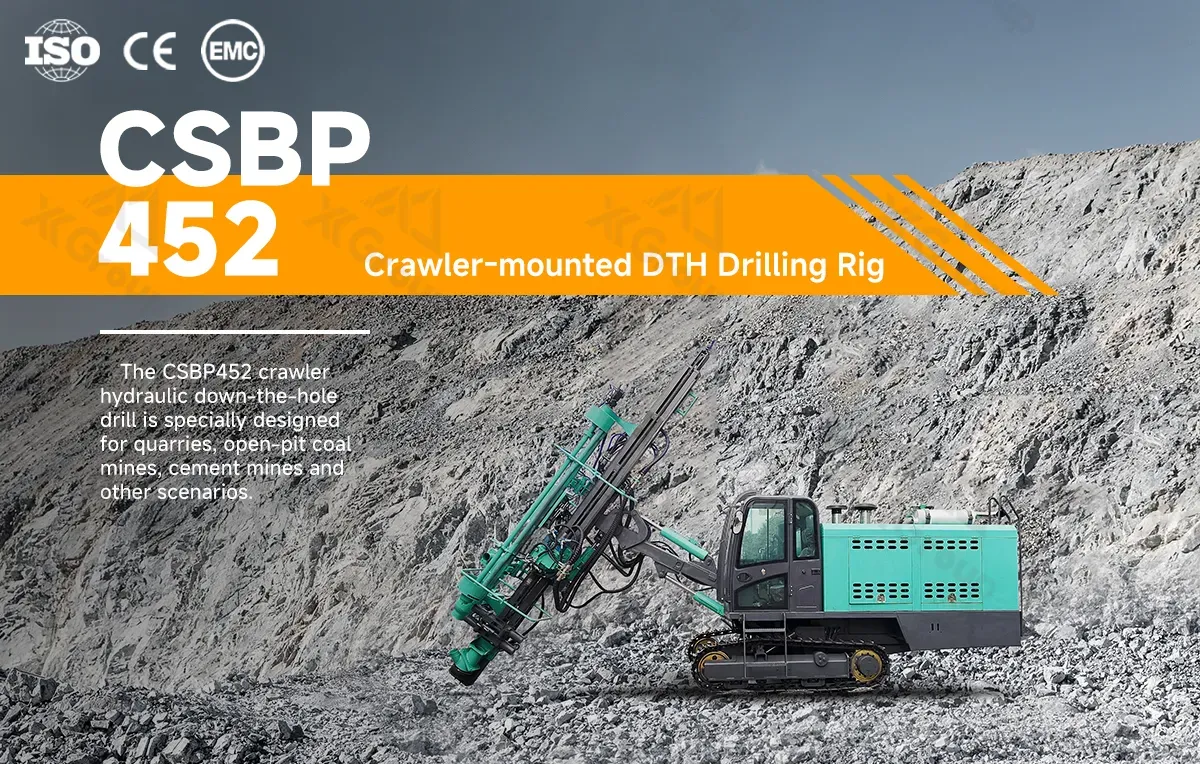

CSBP452
(With Cab)
|
Model/Item
|

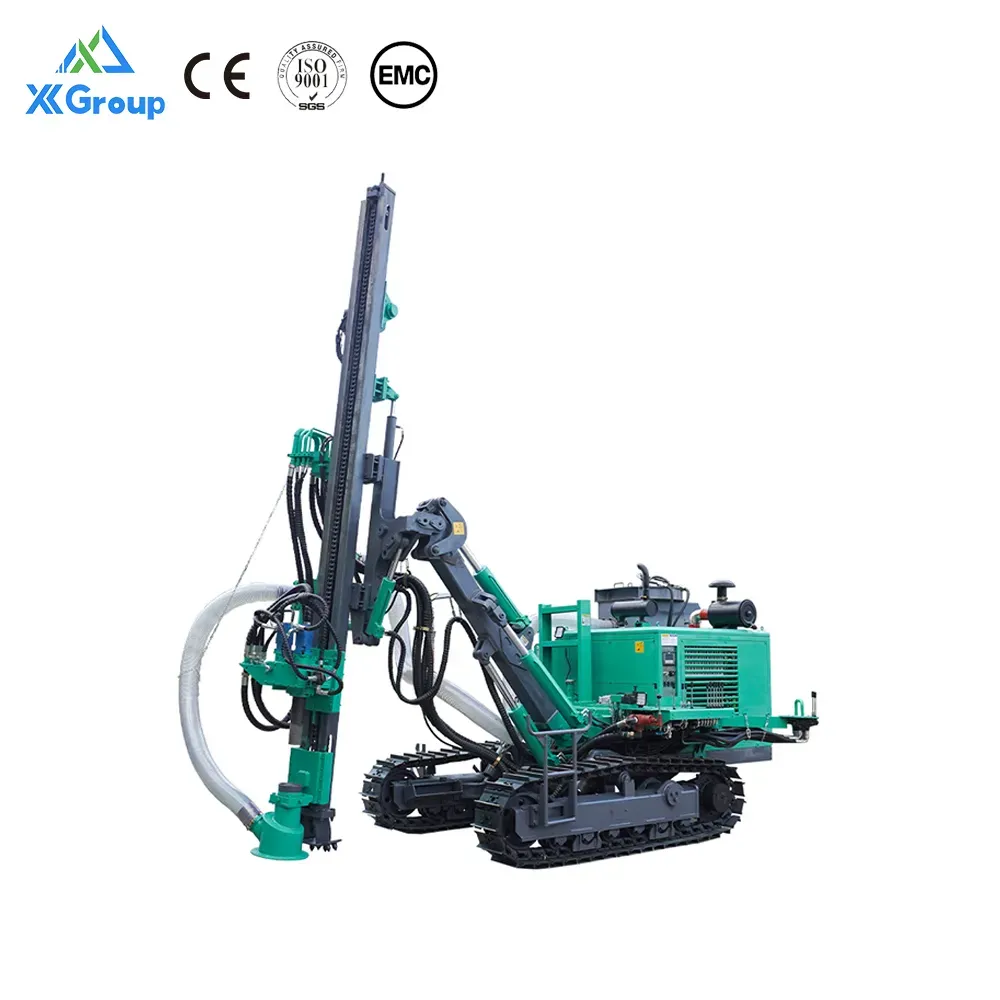

CSBP590-3
|
|
Drilling Diameter
|
mm
|
90-127
|
90-200
|
Drilling Diameter
|
90-180 m
|
|
Max. Hole Depth
|
m
|
21
|
21
|
Drilling Depth
|
30 mm
|
|
Drilling Pipes
|
mm
|
Φ60x3000
|
Φ76x3000
|
Pipe Length
|
3 m
|
|
Rod Changing Method
|
/
|
Automatic
|
Automatic
|
Working Pressure
|
1.2-2.5
Mpa
|
|
Engine
|
/
|
YC6J220-T300 162kw/2200rpm
|
Cummins 194kw/2200rpm
|
Rock Hardness
|
F=6-20
|
|
Fuel Tank Capacity
|
L
|
250
|
250
|
Feeding Stroke
|
4140 mm
|
|
Air Comprosser Producer
|
/
|
Bowes BSC
|
Bowes BSC
|
Max. Horizontal Drilling Height
|
3400 mm
|
|
Air Flow at Normal Working Pressure
|
m³/min
|
13
|
15
|
Max. Rotation Torque
|
6000 N.m
|
|
Max. Air Pressure
|
bar
|
18
|
18
|
Rotation Speed
|
0-120 rpm
|
|
Main Hydraulic Pump Max. Pressure
|
MPa
|
25
|
25
|
Walking Speed
|
2-4 Km/h
|
|
Main Pump Flow
|
ml/r
|
32
|
32
|
Grade Ability
|
30 mm
|
|
Auxiliary Pump Flow
|
ml/r
|
32+32
|
32+32
|
Power
|
77.3 kw
|
|
Max. Torque
|
N.m
|
1500
|
6000
|
Brand
|
Yuchai shares
|
|
Rotation Speed
|
rpm
|
135
|
0-135
|
Dimension
|
7050x
2200x
2150
mm
|
|
Feed Travel Stroke
|
mm
|
3700
|
3700
|
Weight
|
7100 kg
|
|
Feed Max. Pull Force
|
kN
|
31
|
31
|
Dust Collector(Optional)
|
Hydraulic dry tpye dust collecting/wet type
|
|
Feed Max. Feed Force
|
kN
|
7.5
|
7.5
|
||
|
Feed Max. Feed Speed
|
m/s
|
0.5
|
0.5
|
||
|
Dust Collector Filter Area
|
㎡
|
20
|
20
|
||
|
Max. Walking Speed
|
km/h
|
3.2
|
3.2
|
||
|
Max. Climbable Angle
|
°
|
25
|
25
|
||
|
Pitch Angle
|
°
|
±14°
|
±14°
|
||
|
Dimensions(Transport )
|
mm
|
7480x2300x2750
|
8800x2300x3100
|
||
|
Weight (Standard Configuration)
|
kg
|
9100
|
10150
|
