Model Numbers

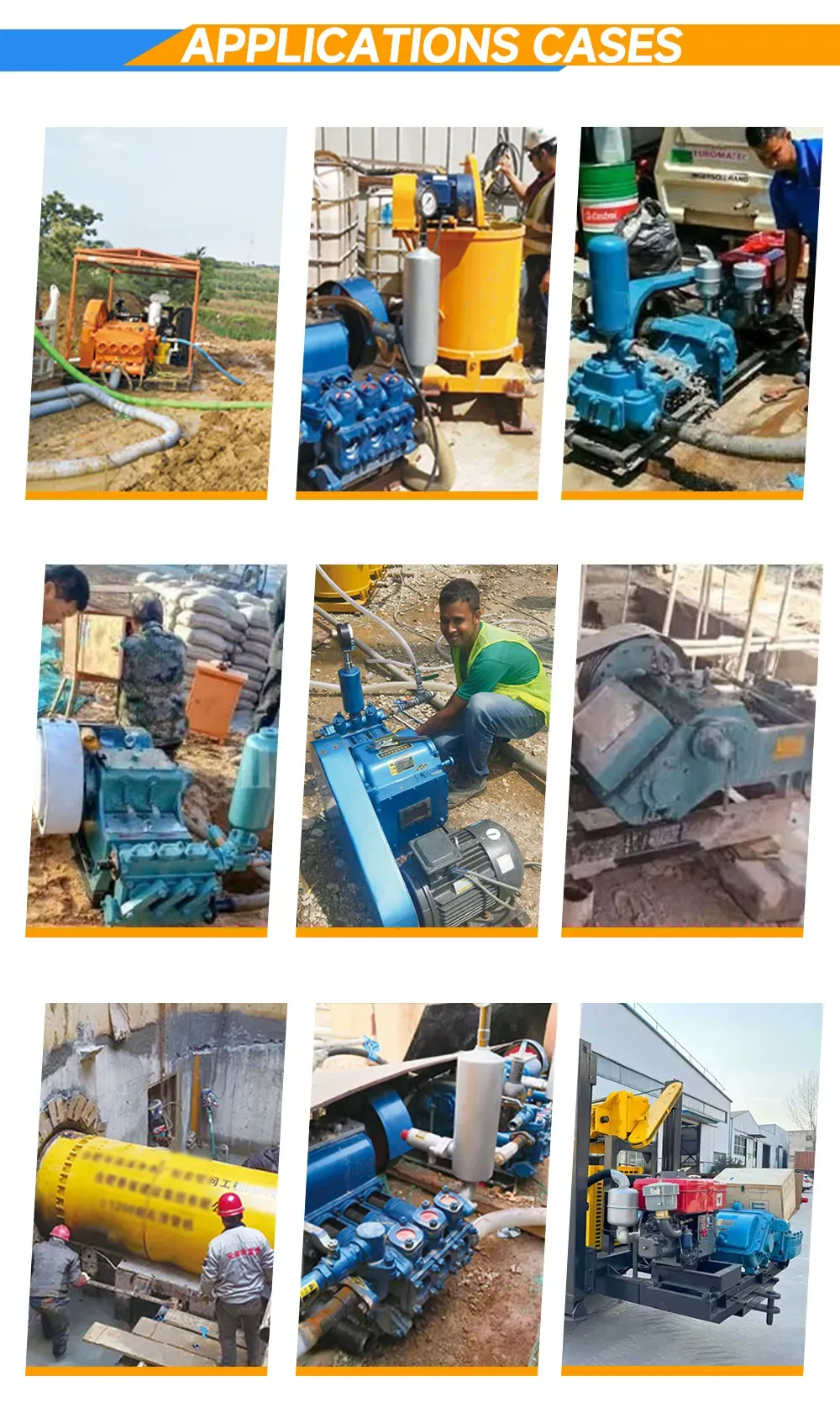

Application
Mud pumps play an important role in the construction of railways, coal mines,mines, high-rise buildings, bridges, water conservancy and hydropower,elevated highways, and geological drilling projects.
Prices are for reference only. Actual quotes will be provided based on specific requirements. We have a professional technical and service team that strives to make everything perfect.
| Model | Engine | Rated FAD | RPM | Rated Pressure | Diesel tank volume | Weight |
| 95SCY-7/10 | 95kw | 12/10.5 m³/min | 1900/2500 | 7&10 bar | 180L | 1900kg |
| 141SCYT-12-15 | 141kw | 18/15 m³/min | 2000 rpm | 12&15 bar | 230L | 2520kg |
| 146SCYT-12-18/G | 146kw | 17/15 m³/min | 2000 rpm | 12&15 bar | 230L | 2950kg/2800kg |
| 153SCYT-15-18/G | 153kw | 20/17 m³/min | 2000 rpm | 15&18 bar | 230L | 3050kg/2900kg |
| 190SCYT-15-18 | 190kw | 23/20 m³/min | 1800 rpm | 15&18 bar | 350L | 3920kg/3620kg |
| 200SCYT-18-22/G | 200kw | 22/20 m³/min | 1800 rpm | 18&22 bar | 350L | 3950kg/3650kg |
| 226SCYT-18-22 | 226kw | 24/20 m³/min | 1900 rpm | 18&22 bar | 350L | 3870kg/3600kg |
| 265SCYT-18-22 | 265kw | 26/24 m³/min | 1850 rpm | 18&22 bar | 485L | 4600kg/4300kg |
| 315SCYT-18-25/G | 315kw | 34/28 m³/min | 1800 rpm | 18&25 bar | 485L | 5100kg/4900kg |
| 410SCYT-22-34/G | 410kw | 39/32 m³/min | 1800 rpm | 22&34 bar | 750L | 6600kg/6000kg |
| 500SCYT-18-25/G | 500kw | 47/42 m³/min | 1800 rpm | 18&25 bar | 1100L | 9000kg/7800kg |
