Application

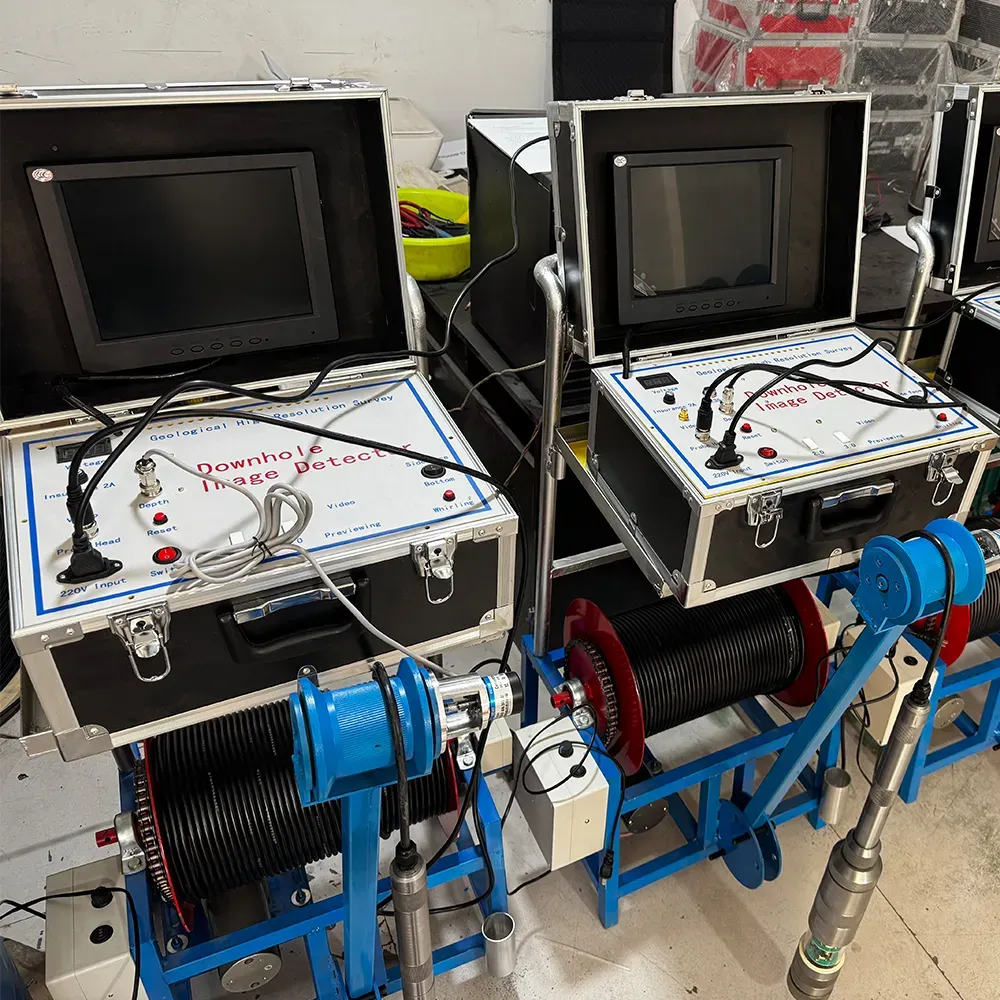

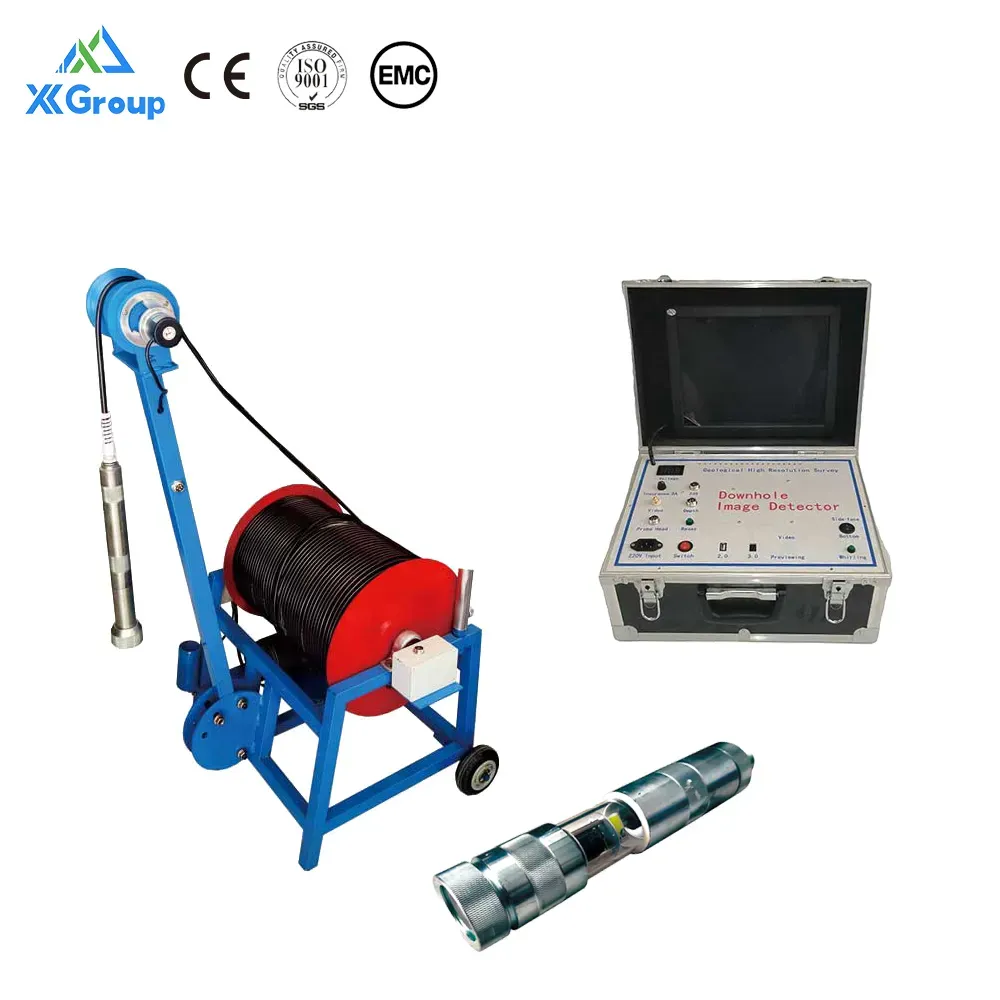

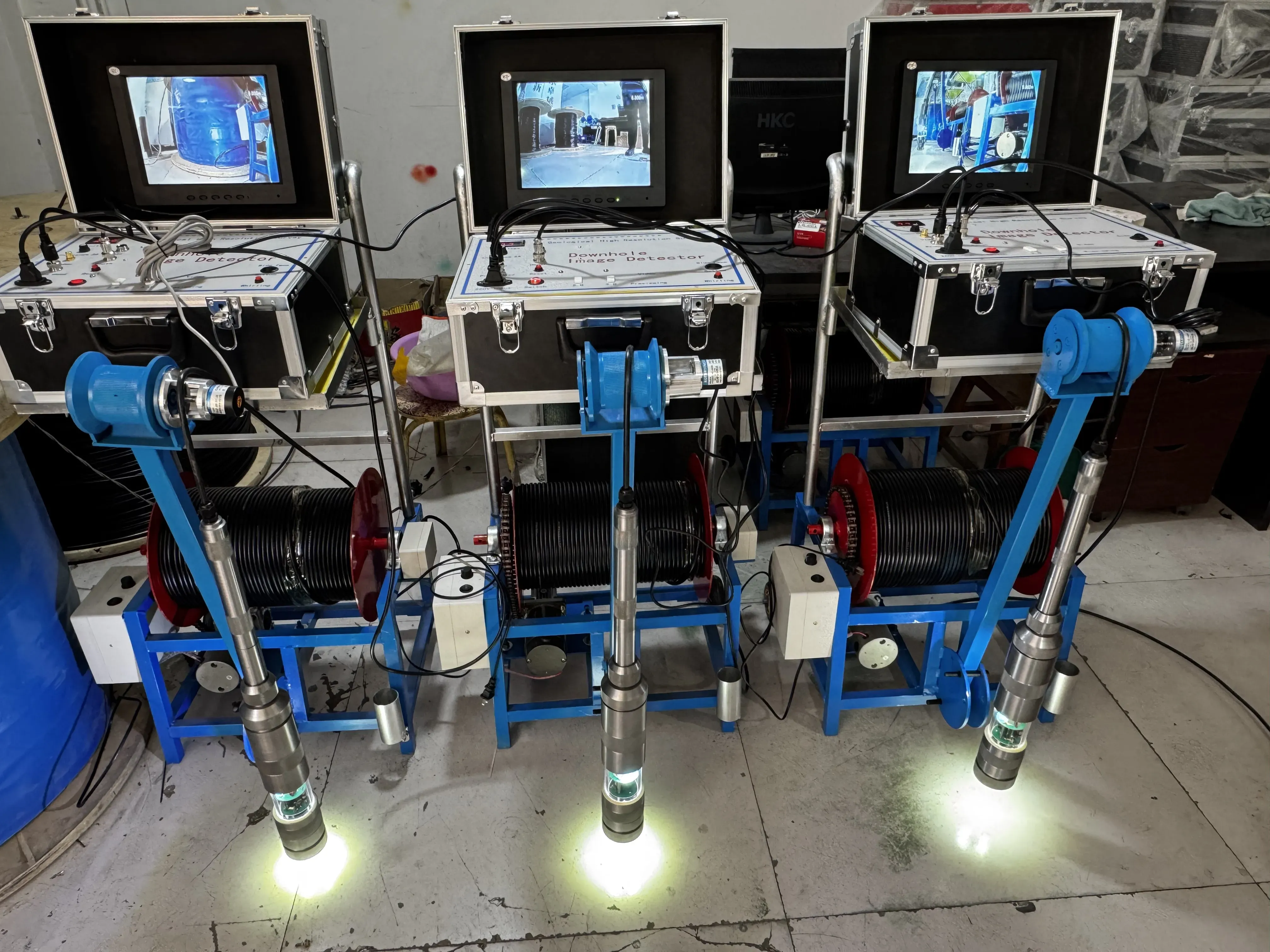

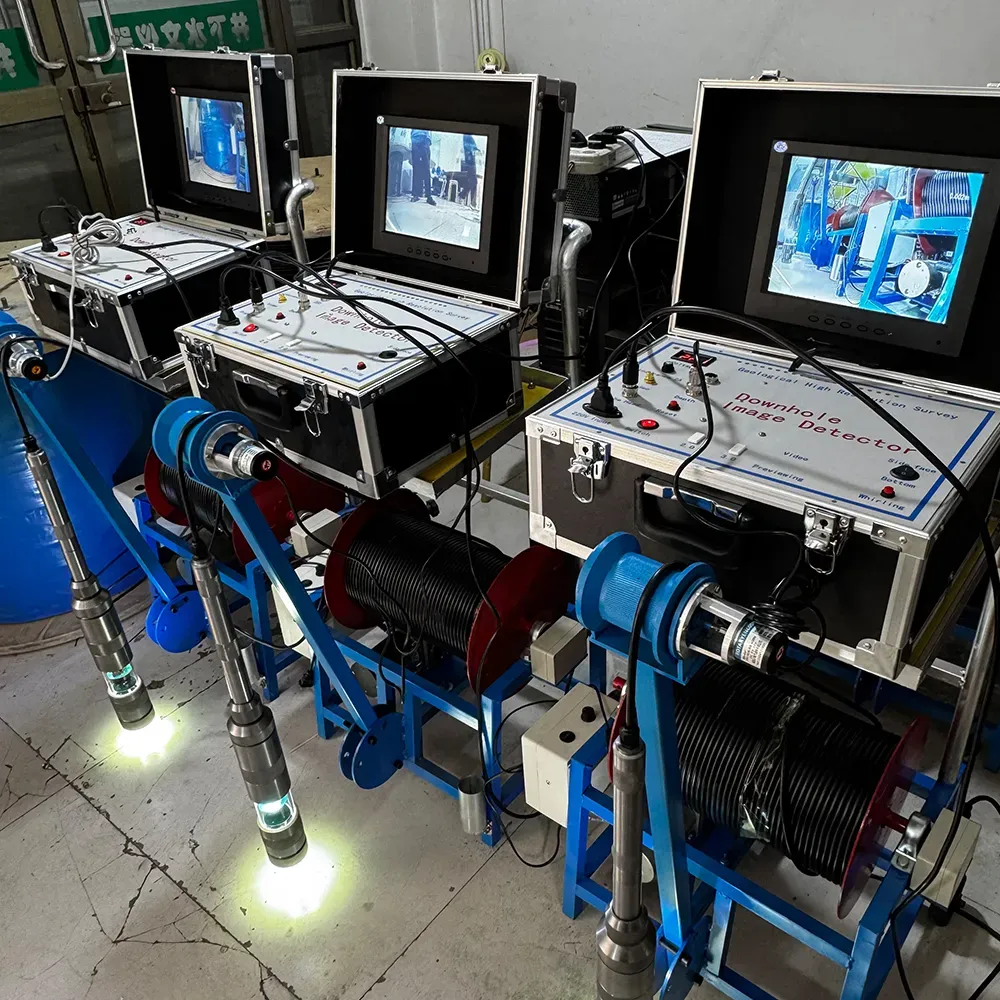

The downhole camera (borehole television) is a professional detection device adapted to complex downhole environments. Its core functions are high-definition imaging and real-time transmission, enabling it to clearly capture details such as well wall cracks and sediment accumulation. Some models support 360-degree rotating observation, and when equipped with high-brightness LED lighting, they can work stably under harsh conditions like high pressure and darkness, with a waterproof rating of up to IP68.
Prices and pictures are for reference only. Actual quotes will be provided based on specific requirements. We have a professional technical and service team that strives to make everything perfect.
| Model/Item | Deep Well Downhole Image Detector |
| Horizontal Resolution | 1080P TVL SONY CCD |
| Minimum Illumination | 0.001 Lux (M12 3.6 lens) |
| XL | AHD Video Signal |
| Operating Temperature | -20 to 70°C; Storage Temperature: 0 to +25°C |
| Viewing Angle (Horizontal Range) | 155° |
| Downward Tilt Angle | 360° downward tilt |
| Probe Material | Cold-drawn 45 steel material, surface electroplated with 0.5mm thick rust-proof zinc |
| Operating Depth | 100-2000 meters |
| HD Glass Lens | 3.9 conical glass lens / F2.0 |
| Waterproof Front Cover | 20mm thick resin glass, HD, wear-resistant, waterproof pressure resistant up to 20 MPa |
| Waterproof Sealing | Deep aerospace sealing |
| Waterproof Rating | 20 MPa |
| Waterproof Level | IP68 |
| Underwater Lighting | 9 high-brightness LED lights; 9-18 side LED lights, power 7.5W; color temperature 6500K, pure white light |
| Video Transmission Module | AND HD signal |
| Signal-to-Noise Ratio | 52dB (Min) / 60dB (Max) (AGC off) |
| Sensitivity | 0.1 lux at F1.2 5600°K |
| Underwater Visibility Range | 0.5-5 meters (varies depending on underwater conditions) |
