Model Numbers
Application

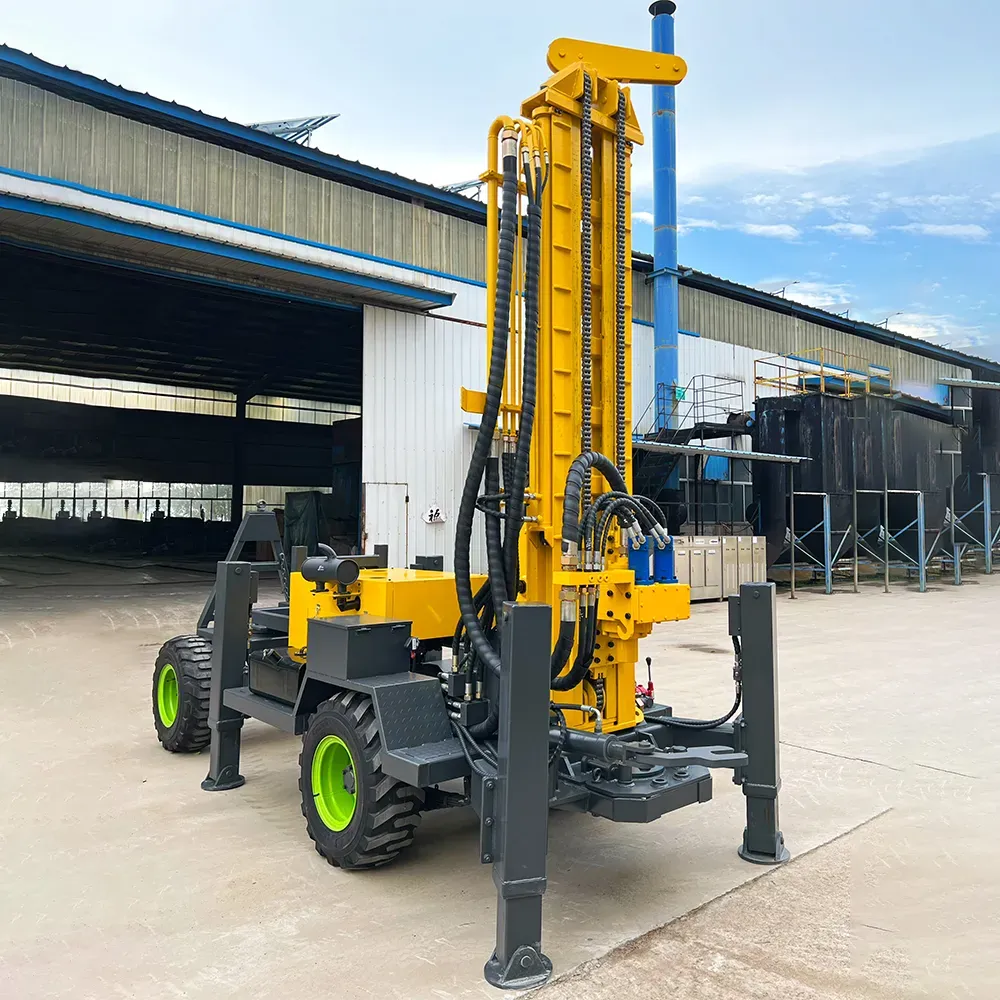

A Water Well Drilling Rig Is A Specialized Equipment Used To Drill Water Wells And Develop Underground Water Sources. It Can Adapt To Different Formations Such As Soil, Sand Layers And Rocks, And Form Water Well Channels That Meet Requirements Through Drilling Operations. Its Core Function Is To Provide Stable Water Sources For Scenarios Such As Agricultural Irrigation, Domestic Water Use In Rural And Remote Areas, And Small-Scale Industrial Water Use. Some Models Can Also Be Equipped With Core Sampling Function To Assist In Understanding Underground Water Quality And Formation Structure, Meeting Drilling Needs Of Different Water Use Scenarios.
Prices are for reference only. Actual quotes will be provided based on specific requirements. We have a professional technical and service team that strives to make everything perfect.
Click to play video
|
Model/Item
|
Unit
|
CSL200
|

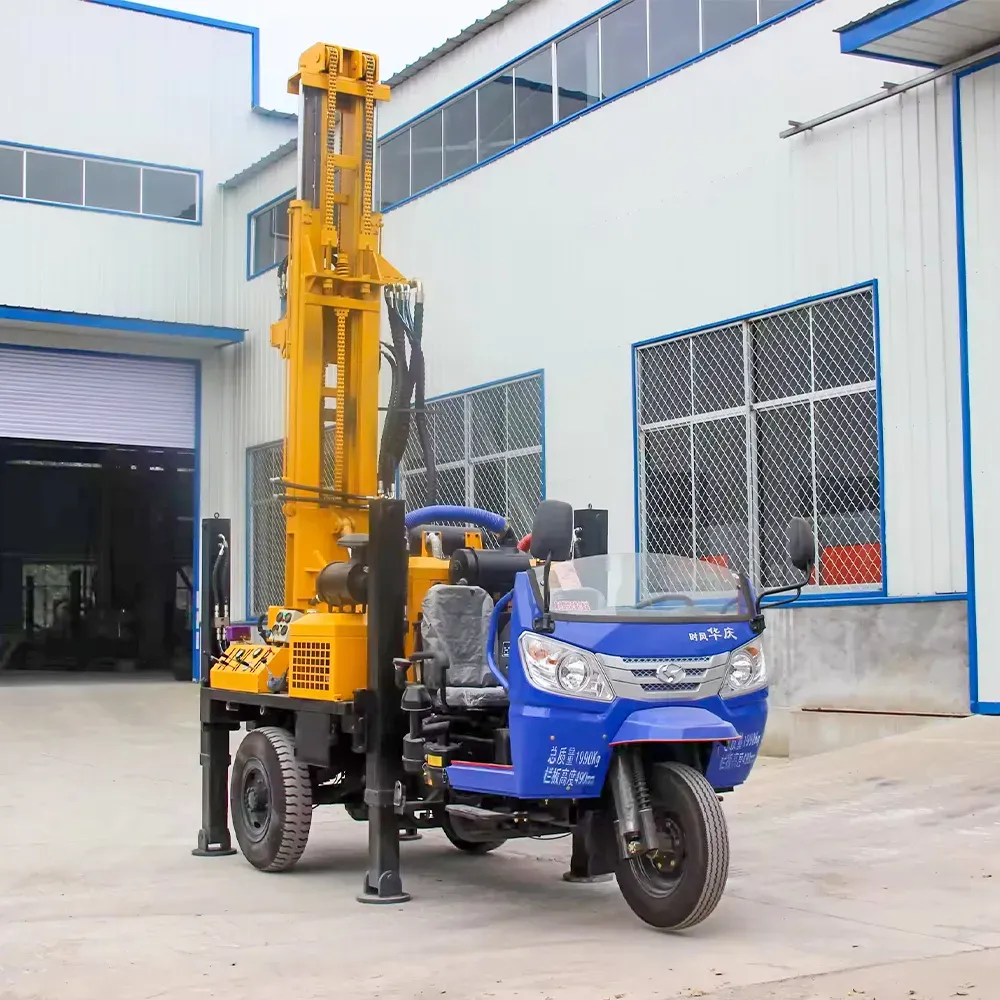

CSNYSL200
|
|
Weight
|
T
|
5
|
4.7
|
|
The Hole Diameter
|
mm
|
110 - 305
|
140 - 254
|
|
Drilling Depth
|
m
|
200
|
200
|
|
One - time Advance Length
|
m
|
3.3
|
3.3
|
|
Walking Speed
|
km/h
|
without/2 - 3
|
20 - 40
|
|
Gradeability
|
°
|
without/25
|
30
|
|
Equipped Capacitor
|
kw
|
65
|
65
|
|
Working Air Pressure
|
Mpa
|
1.7 - 2.5
|
1.7 - 2.5
|
|
Air Consumption
|
m³/min
|
17 - 31
|
17 - 31
|
|
Swing Speed
|
rpm
|
40 - 140
|
45 - 65
|
|
High Leg Stroke
|
m
|
/
|
/
|
|
Drill Pipe Diameter
|
mm
|
φ76 φ89
|
φ76 φ89
|
|
Drill Pipe Length
|
m
|
1.5 2.0 3.0
|
1.5 2.0 3.0
|
|
Rig Lifting Force
|
kn/T
|
160
|
13
|
|
Rapid Rise Speed
|
m/min
|
25
|
20
|
|
Fast Feeding Speed
|
m/min
|
30
|
40
|
|
Width of Loading
|
m
|
/
|
/
|
|
Hoisting Force of Winch
|
kn/T
|
9
|
/
|
|
Max. Swing Torque
|
N.m
|
4800
|
3400 - 4700
|
|
Dimensions
|
mm
|
4800×2000×2600
|
4350×1600×2450
|
|
The Penetration Efficiency
|
m/h
|
10 - 35
|
10 - 35
|
|
The Engine Brand
|
/
|
Yunnei
|
Quanchai
|
Product Features:
1. Adopt Yunnei 65kw engine, which provides sufficient power and high drilling efficiency.
2. The hydraulic oil pump is a parallel gearbox design, and the oil pump is separated to provide sufficient and reasonable power distribution.
3. The power head box is integrated, and the dual motors provide greater power, greater torque, more durability, and lower maintenance costs.

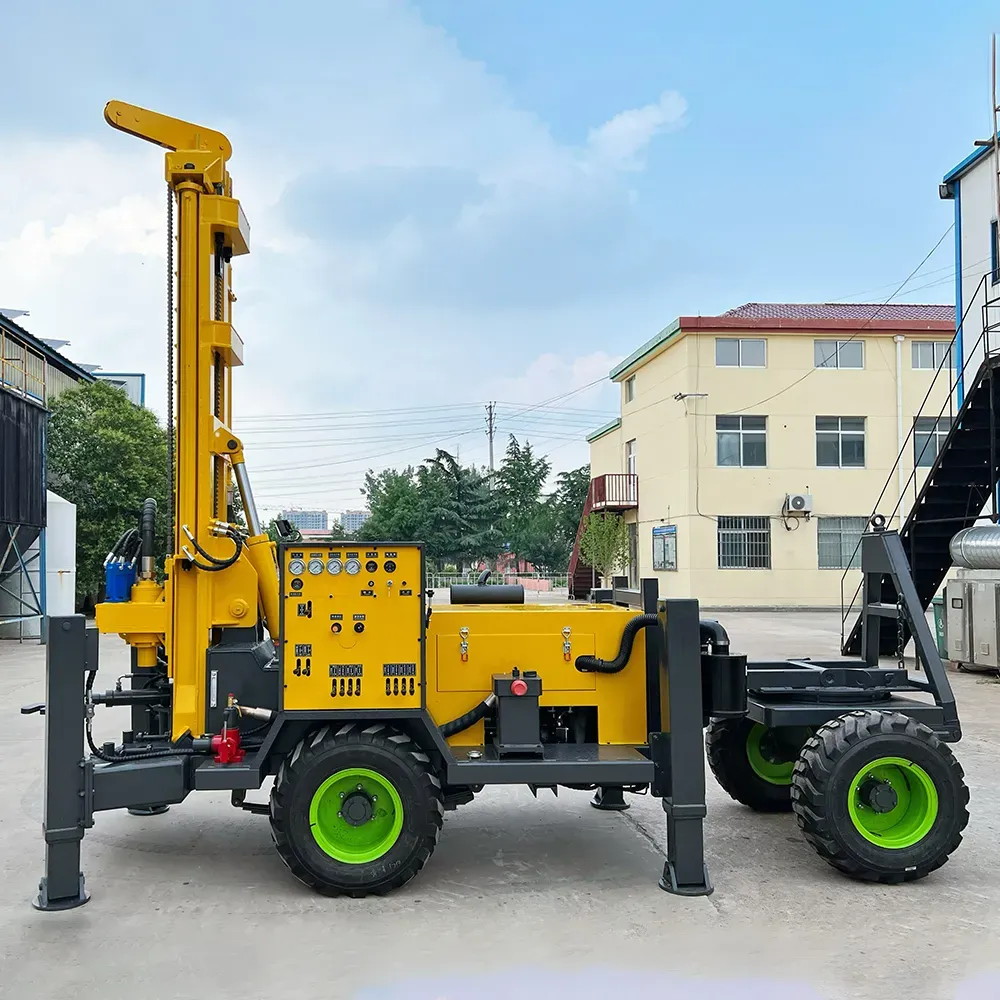

4. The chassis of the driling rig is four-wheel walking, and this model needs to be equipped with a self-propelled kit
5. lt adopts a composite boom, which has a small boom volume, long stroke, double cylinder lifting, and large liftingtonnage.
6. Each hydraulic oil pipe is covered with a thickened protective sleeve to extend the service life of the oil pipe
7. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump.
