Model Numbers

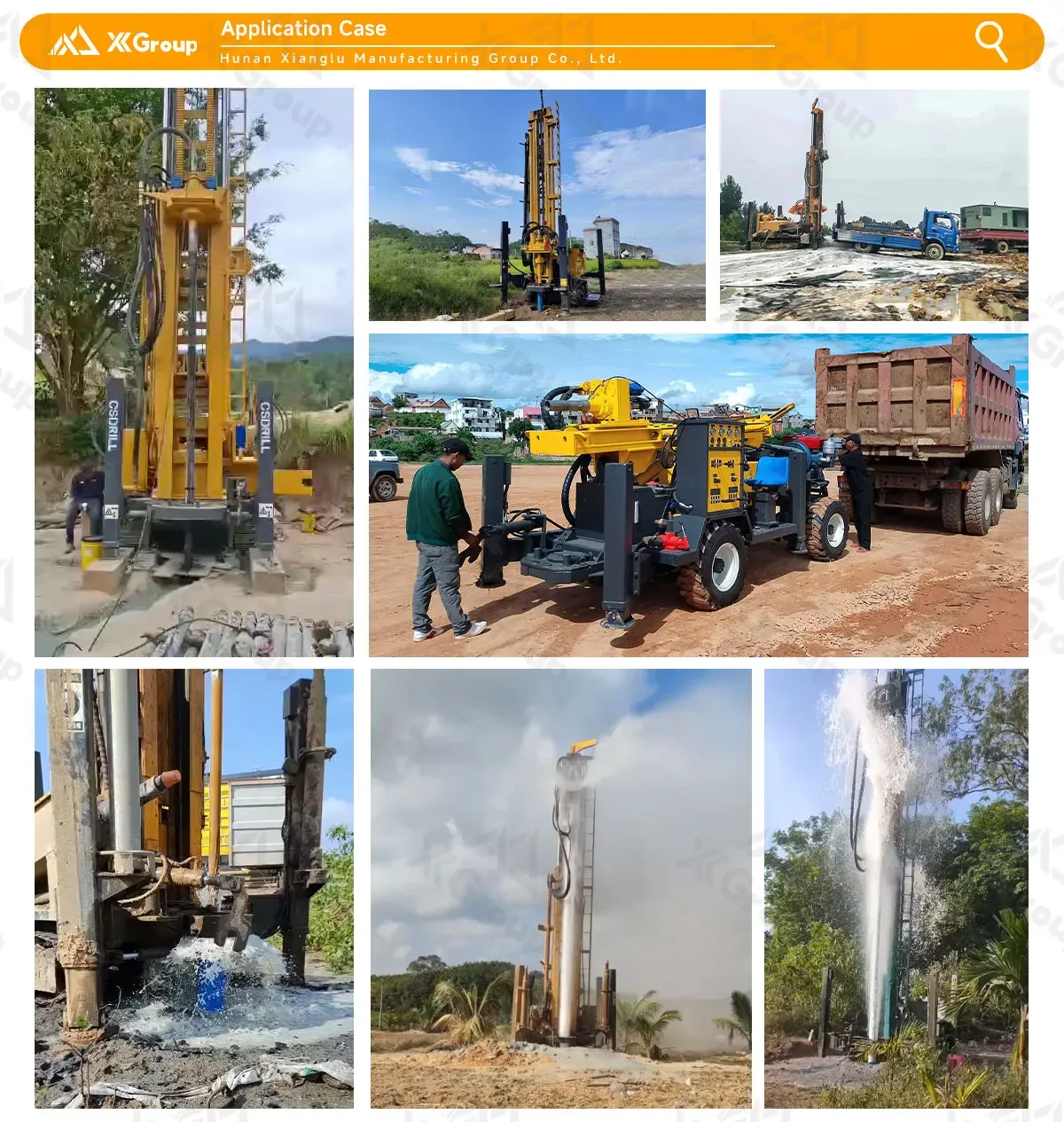

Application
A Water Well Drilling Rig Is A Specialized Equipment Used To Drill Water Wells And Develop Underground Water Sources. It Can Adapt To Different Formations Such As Soil, Sand Layers And Rocks, And Form Water Well Channels That Meet Requirements Through Drilling Operations. Its Core Function Is To Provide Stable Water Sources For Scenarios Such As Agricultural Irrigation, Domestic Water Use In Rural And Remote Areas, And Small-Scale Industrial Water Use. Some Models Can Also Be Equipped With Core Sampling Function To Assist In Understanding Underground Water Quality And Formation Structure, Meeting Drilling Needs Of Different Water Use Scenarios.
Prices are for reference only. Actual quotes will be provided based on specific requirements. We have a professional technical and service team that strives to make everything perfect.

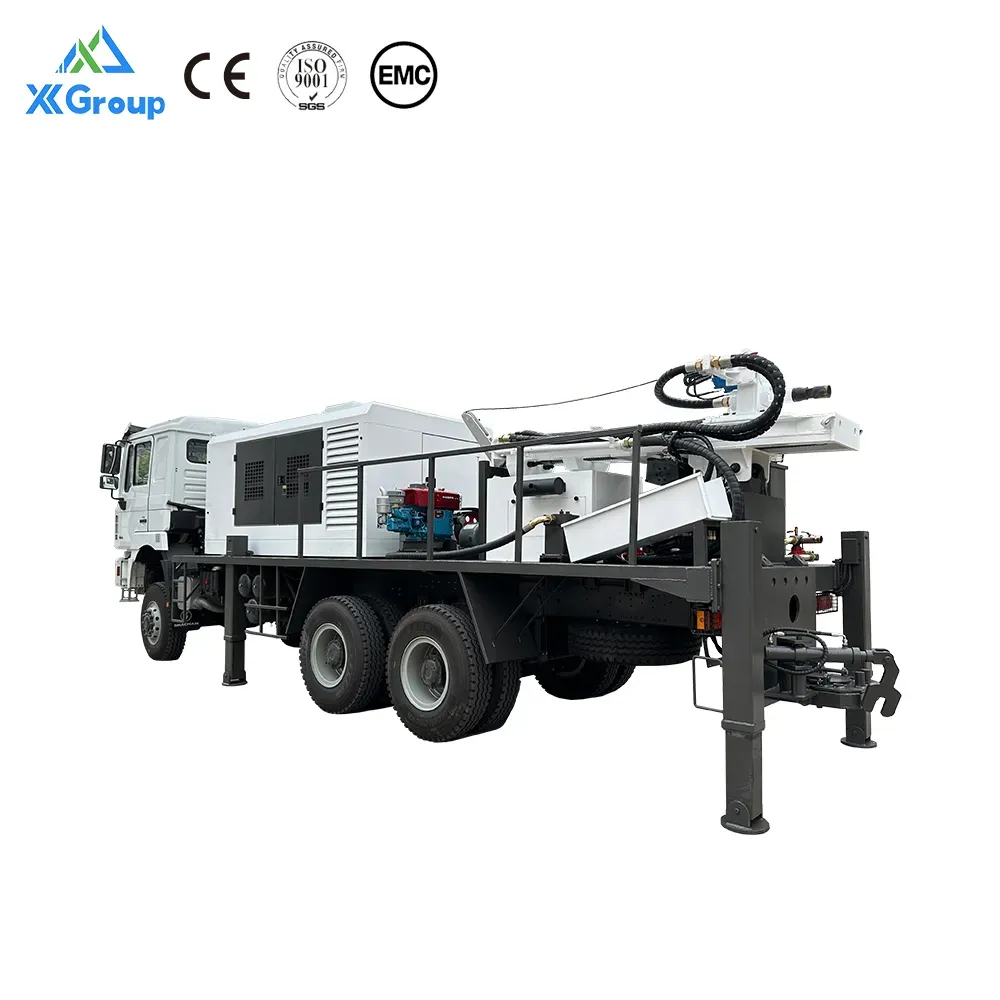

| Model Item | Unit | CSCZ-200 | CSCZ-350 | CSCZ-500 |
| The weight（Air compressor not included） | T | 12 | 13 | 14 |
| The hole diameter | mm | 140-254 | 140-325 | 140-350 |
| Drilling depth | m | 200 | 350 | 500 |
| One-time advance length | m | 3.3 | 6.6 | 6.6 |
| Walking speed | km/h | 0-80 | 0-80 | 0-80 |
| Climbing angles（Max） | Max | 30 | 30 | 30 |
| Equipped capacitor | kw | 260 | 260 | 260 |
| Using air pressure | MPA | 1.7-2.5 | 1.7-3.4 | 1.7-3.4 |
| Air consumption | m³/min | 17-31 | 17-36 | 17-36 |
| Swing speed | rpm | 45-80 | 66-140 | 66-140 |
| The penetration efficiency | m/h | 10-35 | 15-35 | 15-35 |
| 钻杆参数 | ||||
| Drill pipe diameter | mm | Φ76、Φ89 | Φ89、Φ102 | Φ102、Φ108、Φ114 |
| Drill pipe length | m | 1.5/2.0/3.0 | 1.5/2.0/3.0/6.0 | 1.5/2.0/3.0/6.0 |
| Rig lifting force | T | 15 | 22 | 26 |
| Rapid rise speed | m/min | 30 | 18 | 20 |
| Fast feeding speed | m/min | 60 | 33 | 40 |
| Width of loading | m | \ | \ | \ |
| Hoisting force of winch | T | 1.5 | 2 | 2 |
| Swing torque | N.m | 3500-5500 | 6200-8500 | 7500-10000 |
| Dimension | mm | 11000×2700×2900 | 11000×2700×3000 | 11000×2700×3100 |
| Equipped with hammer | / | Medium wind pressure series、high wind pressure series | Medium wind pressure series、high wind pressure series | Medium wind pressure series、high wind pressure series |
| High leg stroke | m | 1.4 | 1.4 | 1.4 |
| The engine brand | / | Yuchai engine | Yuchai engine | Yuchai engine |
Product Features:
1. Adopt Yuchai 91kw engine, which is powerful and can effectively meet the needs of work.

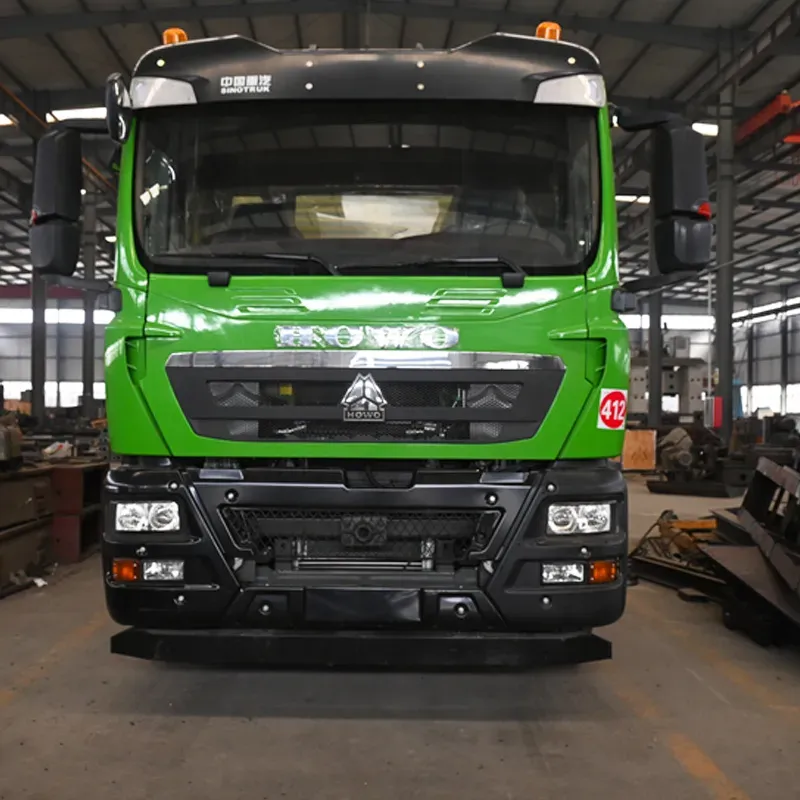

2. Adopt the wel-known brand HOwO 4x6 chassis, 2 front and 8 rear, and the walking speed reaches 80km/h.
3. The power head box is integrated, and the dual motors provide greater power, greater torque, more durability, and lowermaintenance costs.
4. Adopt composite boom, small boom volume, long stroke, dual cylinder lifting force, drilling rig lifting tonnage.
5. Each hydraulic oil pipe is covered with a thickened protective sleeve to extend the service life of the oil pipe.

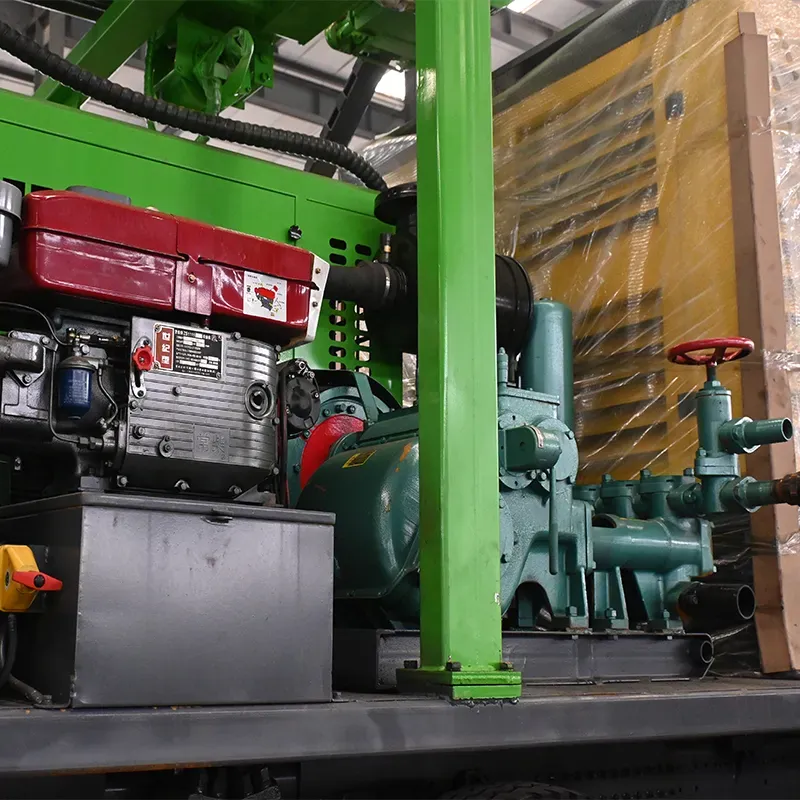

6. Dual systems can be added: 1. Air power system with air compressor 2, Mud pump system with mud pump.
