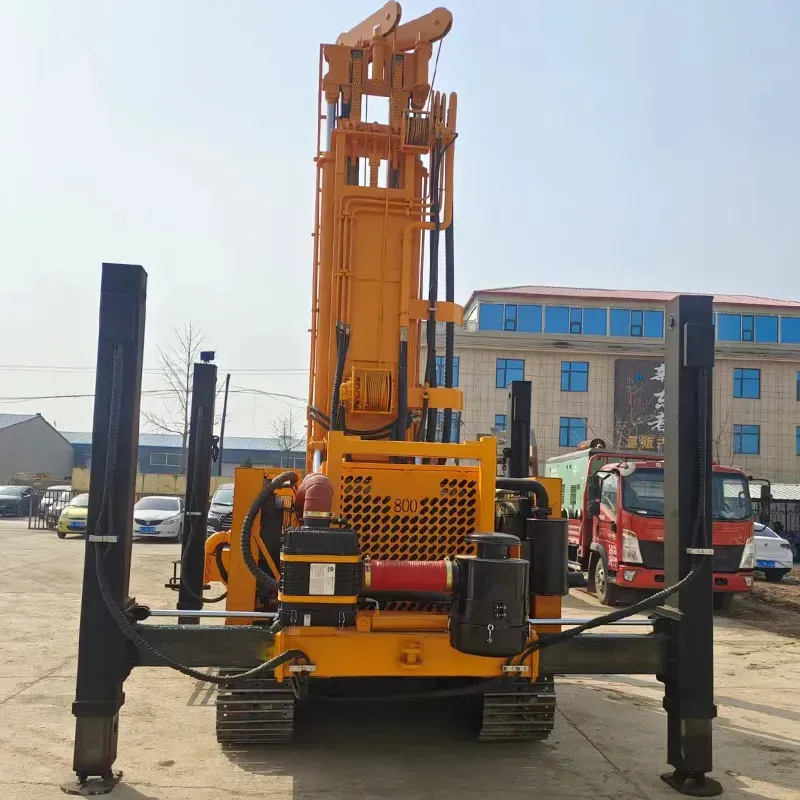

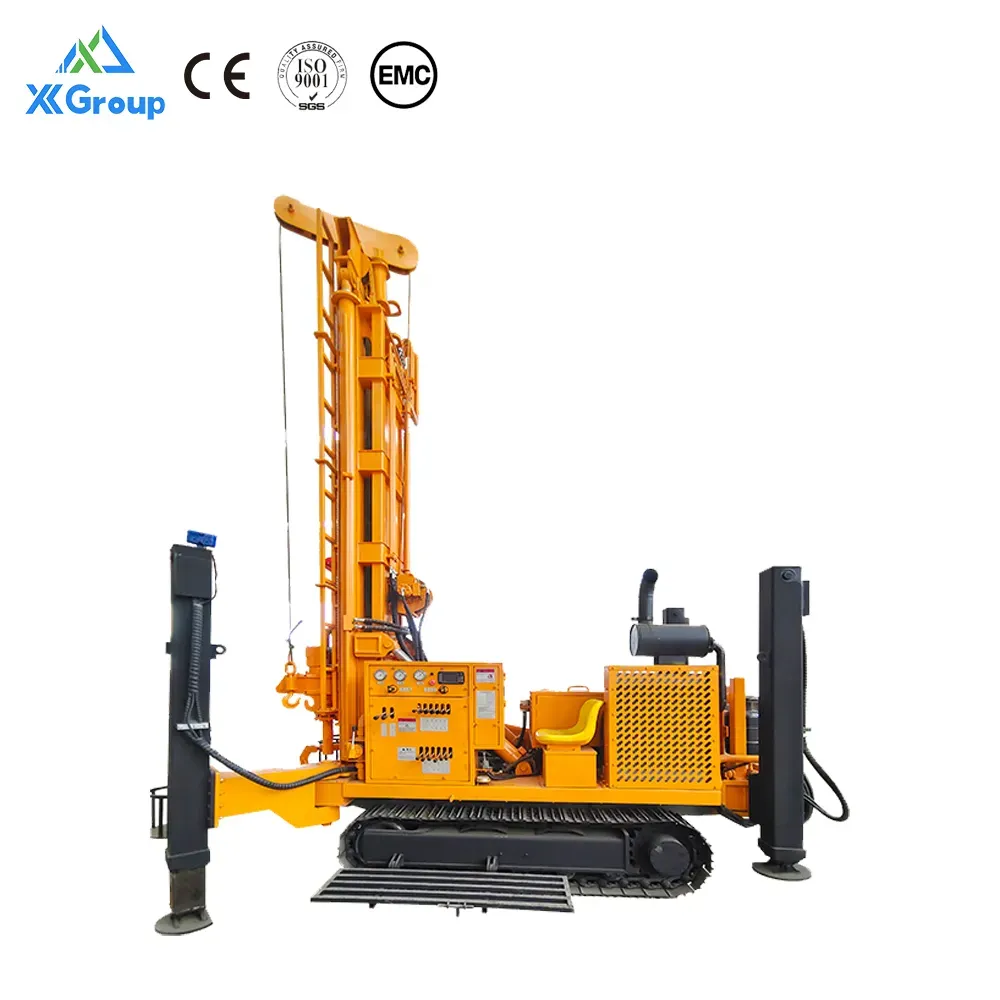

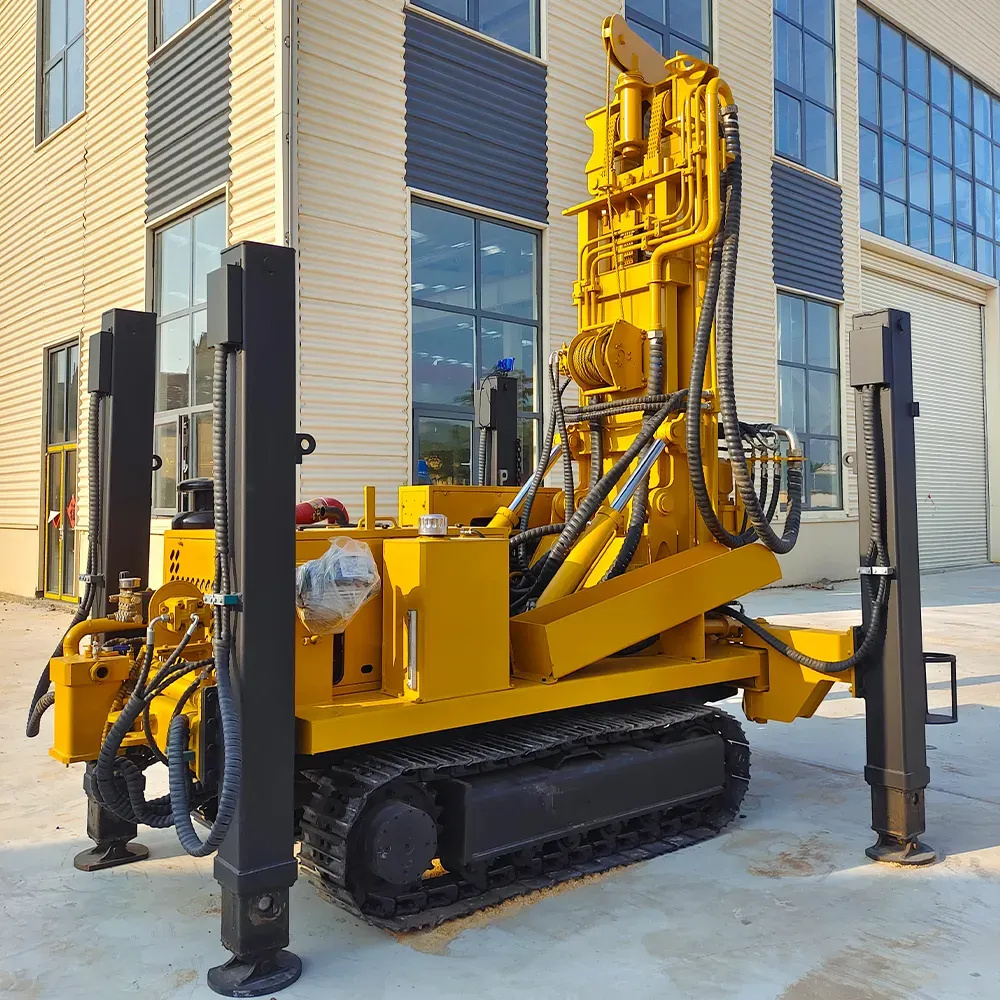

A Water Well Drilling Rig Is A Specialized Equipment Used To Drill Water Wells And Develop Underground Water Sources. It Can Adapt To Different Formations Such As Soil, Sand Layers And Rocks, And Form Water Well Channels That Meet Requirements Through Drilling Operations. Its Core Function Is To Provide Stable Water Sources For Scenarios Such As Agricultural Irrigation, Domestic Water Use In Rural And Remote Areas, And Small-Scale Industrial Water Use. Some Models Can Also Be Equipped With Core Sampling Function To Assist In Understanding Underground Water Quality And Formation Structure, Meeting Drilling Needs Of Different Water Use Scenarios.
Prices are for reference only. Actual quotes will be provided based on specific requirements. We have a professional technical and service team that strives to make everything perfect.
Click to play video
| Model Item |
Unit
|
CS260S
|
CS300S
|
CS300S-2
|
CS350S
|
CS400S
|
| Max Drilling Depth |
m
|
260
|
300
|
300
|
350
|
400
|
| Drilling Diameter |
mm
|
105-273
|
105-305
|
105-273
|
105-325
|
105-325
|
| Air Pressure |
Mpa
|
1.2-3.5
|
1.2-3.5
|
1.2-3.5
|
1.2-3.5
|
1.2-3.5
|
| Rod Length |
m
|
1.5-3
|
3
|
1.5-3
|
3-6
|
3-6
|
| Rod Diameter |
mm
|
Φ76 Φ89
|
Φ76 Φ89 Φ102
|
Φ76 Φ89
|
Φ76 Φ89
|
Φ89 Φ102 Φ114
|
| Main Shaft Pressure |
T
|
5
|
5
|
5
|
5
|
5
|
| Lifting Force |
T
|
16
|
20
|
16
|
16
|
20
|
| Rotation Head Stroke |
m
|
2.6-3.6
|
3.6-4.6
|
3.6
|
6.6
|
6.6
|
| Max Rotary Torque |
N.m
|
6600
|
8800
|
6600
|
8800
|
10000
|
| Max Rotary Speed |
r/min
|
100
|
100
|
100
|
100
|
100
|
| Secondary Winch Liftng Force |
T
|
1.5
|
2
|
1.5
|
1.5
|
1.5
|
| Jacks Stroke |
m
|
1.3
|
1.5
|
1.3
|
1.5
|
1.5
|
| Moving Speed |
km/h
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
| Uphill Angle |
°
|
21
|
21
|
21
|
21
|
21
|
| Weight of The Rig |
T
|
5
|
7.5
|
5
|
7
|
8.5
|
| Overall Dimensions |
mm
|
3350-2400 x1350x2050
|
3600x1500 x2350
|
3350-2400 x1350x2050
|
5200-3600 x1500x2400
|
5200-3800 x1600x2350
|
| Equipped Capacitor |
kw
|
76
|
91
|
103
|
118
|
129
|
| Model Item |
Unit
|
CS500S
|
CS600S
|
CS800S
|
CS1000S
|
CS1000S
|
| Max Drilling Depth |
m
|
500
|
600
|
800
|
1000
|
1000
|
| Drilling Diameter |
mm
|
105-325
|
105-400
|
105-500
|
105-600
|
140-650
|
| Air Pressure |
Mpa
|
1.2-3.5
|
1.2-3.5
|
1.2-3.5
|
1.2-3.5
|
1.2-3.5
|
| Rod Length |
m
|
3-6
|
3-6
|
3-6
|
3-6
|
3-6
|
| Rod Diameter |
mm
|
Φ89 Φ102 Φ114
|
Φ89 Φ102 Φ114 Φ127 Φ140
|
Φ89 Φ102 Φ114 Φ127 Φ140
|
Φ89 Φ102 Φ114 Φ127 Φ140
|
Φ89 Φ102 Φ114 Φ127 Φ140
|
| Main Shaft Pressure |
T
|
5
|
5
|
8
|
10
|
10
|
| Lifting Force |
T
|
20-25
|
24-32
|
30-35
|
50
|
50
|
| Rotation Head Stroke |
m
|
6.8
|
6.8
|
6.8
|
6.8
|
6.8
|
| Max Rotary Torque |
N.m
|
10000
|
11000
|
17000
|
22000
|
24000
|
| Max Rotary Speed |
r/min
|
100
|
100
|
100
|
100
|
50-500
|
| Secondary Winch Liftng Force |
T
|
1.5
|
2.5 1.5
|
2.5 1.5
|
2.5 1.5
|
3 1.5
|
| Jacks Stroke |
m
|
1.5
|
1.5
|
1.75
|
1.75
|
1.75
|
| Moving Speed |
km/h
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
| Uphill Angle |
°
|
21
|
21
|
21
|
21
|
21
|
| Weight of The Rig |
T
|
9.3
|
11
|
13.8
|
16.5
|
17.5
|
| Overall Dimensions |
mm
|
5700-4000 x1800x2400
|
5700-4400 x1900x2450
|
5700-5100 x2000x2800
|
5700-5100 x2000x2800
|
7800-5100 x2200x2850
|
| Equipped Capacitor |
kw
|
140
|
162
|
191
|
264
|
206 295
|

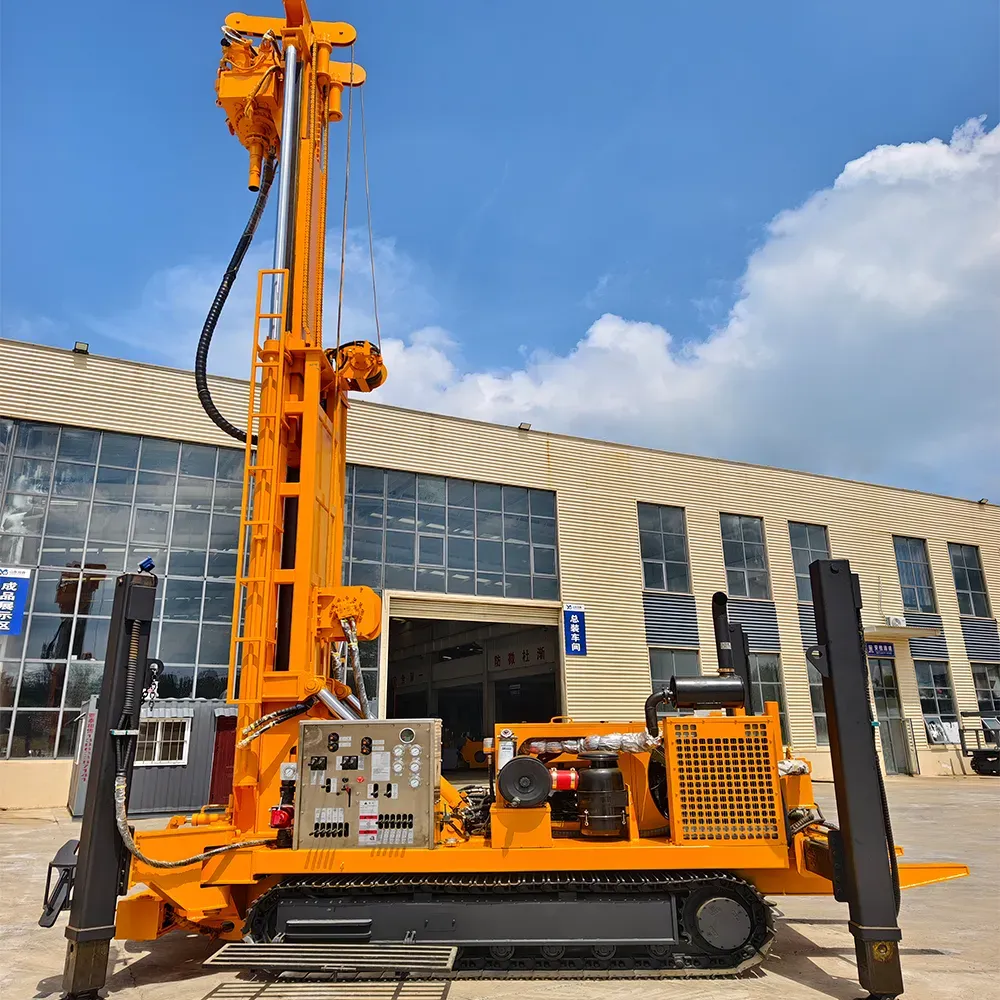

Product Features:

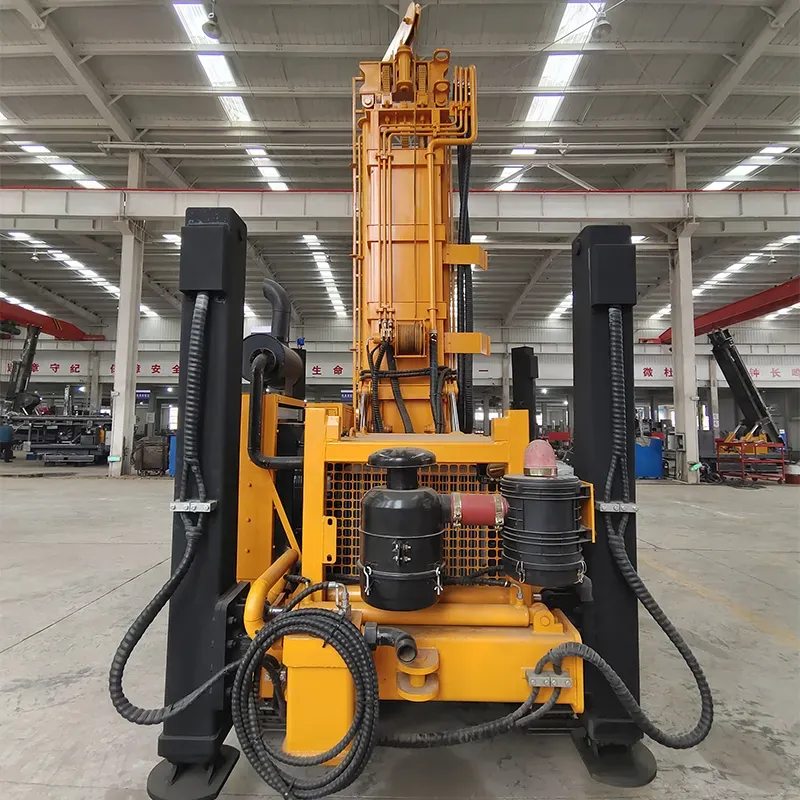

1. The driling rig is equipped with a Yuchai shares 129kw engine, which is powerful and meets the needs of drilling work.

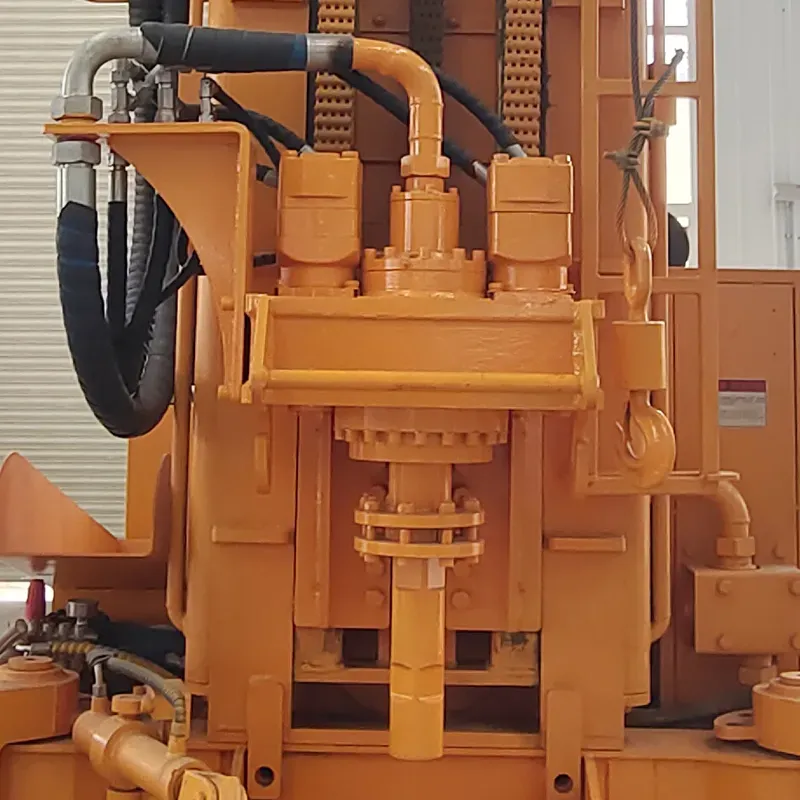

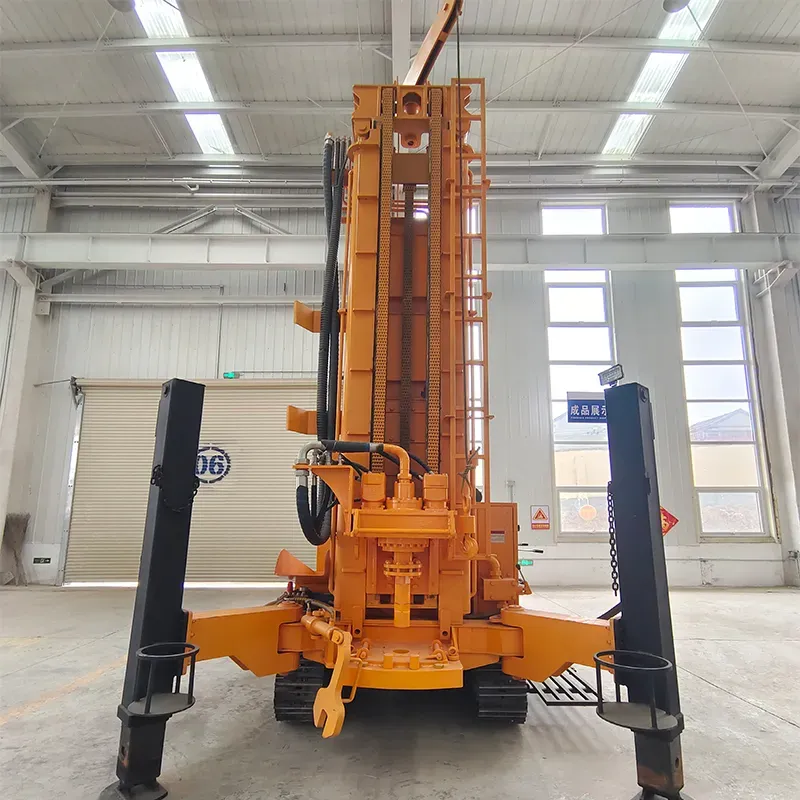

2. The power head adopts dual hydraulic motors with gear transmission, with large torque and long life; the base of thepower head is widened and lengthened, and six lengthened and widened nylon slides are installed in the slideway to increasethe friction area, extend the service life, and make the power head more stable.
3. The wellhead plate adopts a double-layer design, and the middle centering disc core can be removed separately, whichis convenient for replacement after wear and tear, saving later costs.

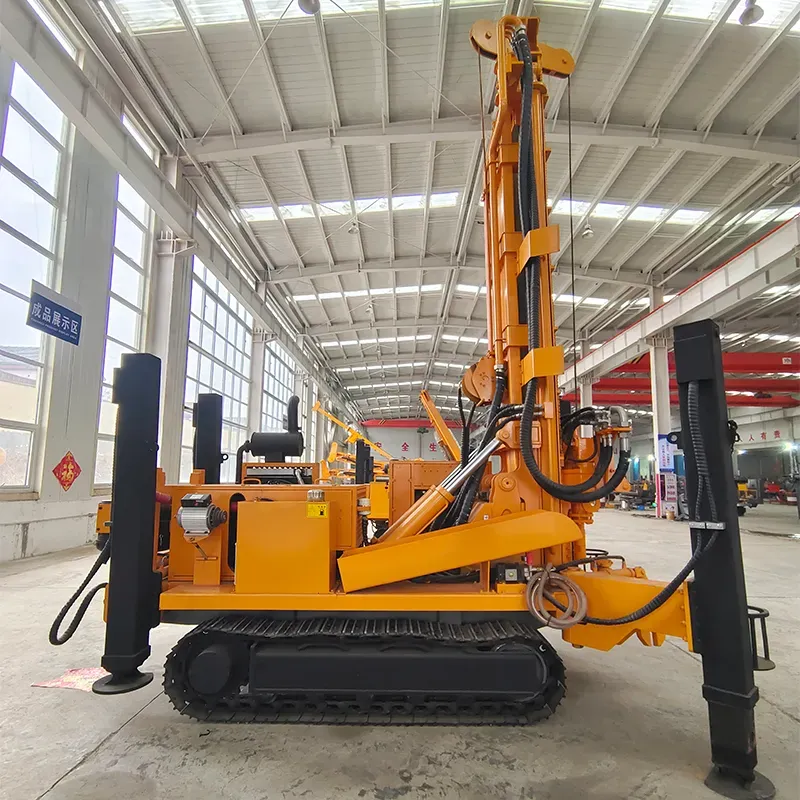

4. it uses a universal steel crawler chassis for excavators and a 10-ton reduction motor, which is powerful and stable.

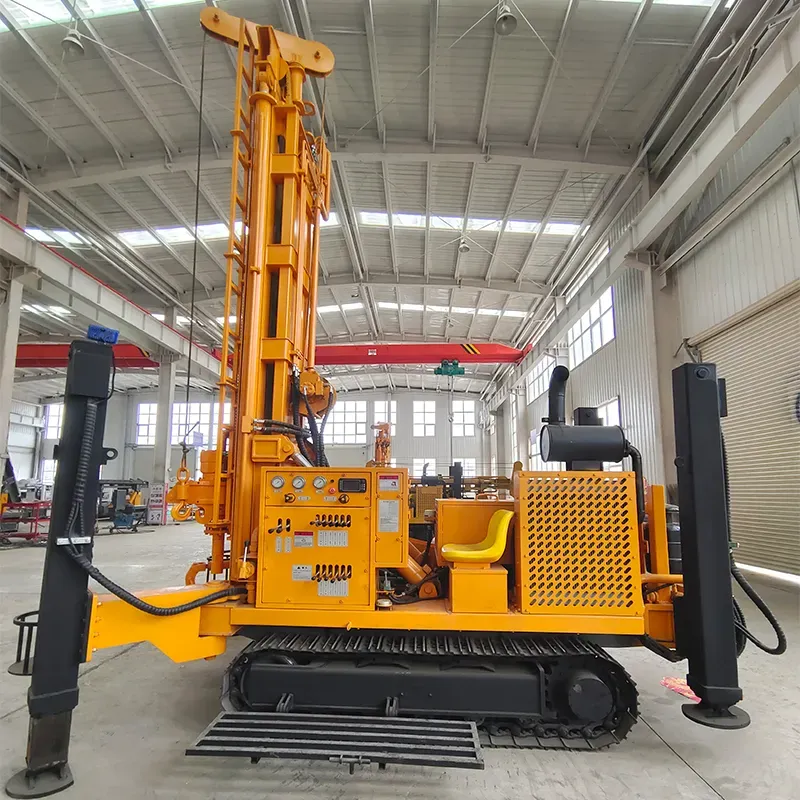

5. The driling rig comes with a winch, which is convenient for hoisting heavy accessories such as drill rods, impactors, andfollow-up pipes, saving manpower and material resources and improving work efficiency; it comes with a foam pump, whichcan spray water to remove dust and apply foaming agents, which is environmentally friendly and practical.
