Model Numbers
Application
Prices are for reference only. Actual quotes will be provided based on specific requirements. We have a professional technical and service team that strives to make everything perfect.

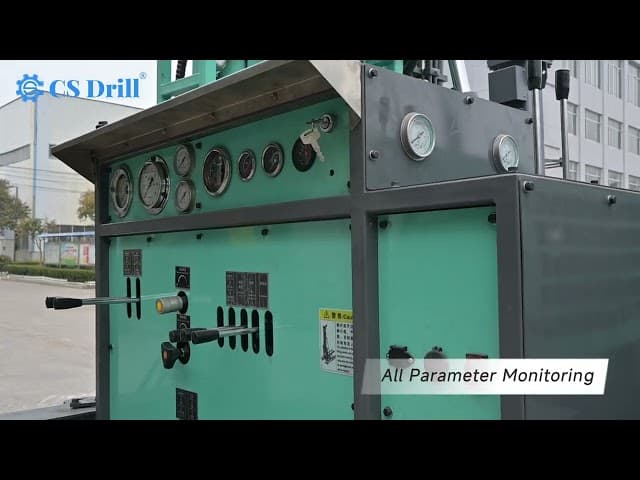

Click to play video
| Model Item | Unit | CS200 | CS260 | CS350 | CS600 | CS800 | CS1000H |
| Weight | kg | 5000 | 5000 | 8000 | 9200 | 13500 | 14000 |
| The Hole Diameter | mm | 110-305 | 110-305 | 105-400 | 140-400 | 140-400 | / |
| Drilling Depth | m | 200 | 260 | 350 | 600 | 800 | 1000 |
| One-time Advance Length | m | 3.3 | 3.3/6.6 | 6.6 | 6.6 | 6.6 | 6.6 |
| Walking Speed | km/h | 2-3 | 2-3 | 2-3 | 2-3 | 2.5 | 3 |
| Gradeability | ° | 25 | 25 | 25 | 25 | 30 | / |
| Equipped Capacitor | kw | 58 | 76 | 91 | 129 | 153 | 280 |
| Working Air Pressure | Mpa | 1.7-2.5 | 1.7-3.0 | 1.7-3.4 | 1.7-3.5 | 1.7-3.5 | / |
| Air Consumption | m³/min | 17-31 | 17-31 | 17-36 | 17-42 | 17-42 | / |
| Swing Speed | rpm | 40-140 | 40-160 | 40-160 | 40-160 | 40-160 | 300 |
| Drill Pipe Diameter | mm | Φ76 Φ89 | Φ76 Φ89 | Φ76 Φ89 Φ102 | Φ76 Φ89 Φ102 Φ114 | Φ76 Φ89 Φ102 Φ114 Φ117 | / |
| Drill Pipe Length | m | 1.5 2.0 3.0 | 1.5 2.0 3.0 | 1.5 2.0 3.0 6.0 | 1.5 2.0 3.0 6.0 | 1.5 2.0 3.0 6.0 | 1.5 2.0 3.0 6.0 |
| Rig Lifting Force | kN | 160 | 180 | 260 | 300 | 360 | / |
| Rapid Rise Speed | m/min | 25 | 25 | 20 | 20 | 20 | / |
| Fast Feeding Speed | m/min | 30 | 30 | 35 | 40 | 40 | / |
| Hoisting Force of Winch | kN | 9 | 15 | 15 | 20 | 20 | / |
| Max. Swing Torque | N.m | 4800 | 5500 | 8000 | 12000 | 8000-14000 | 14000-25000 |
| Dimensions | mm | 3600*1700*2300 | 4000*1900*2500 | 4500*2000*2500 | 4700*2100*2500 | 6300*2300*2950 | 6000*2200*2700 |
| The Penetration Efficiency | m/h | 10-35 | 12-40 | 12-40 | 15-35 | 12-40 | / |
| The Engine Brand | / | Yunnei | Yunnei | Yuchai | Weichai | Cummins | Weichai |
Product Features:
1. Adopt Weichai 129kw engine, which provides sufficient power and high drilling efficiency.
2. The hydraulic oil pump is a parallel gearbox design, and the oil pump is separated to provide suficient and reasonablepower distribution.

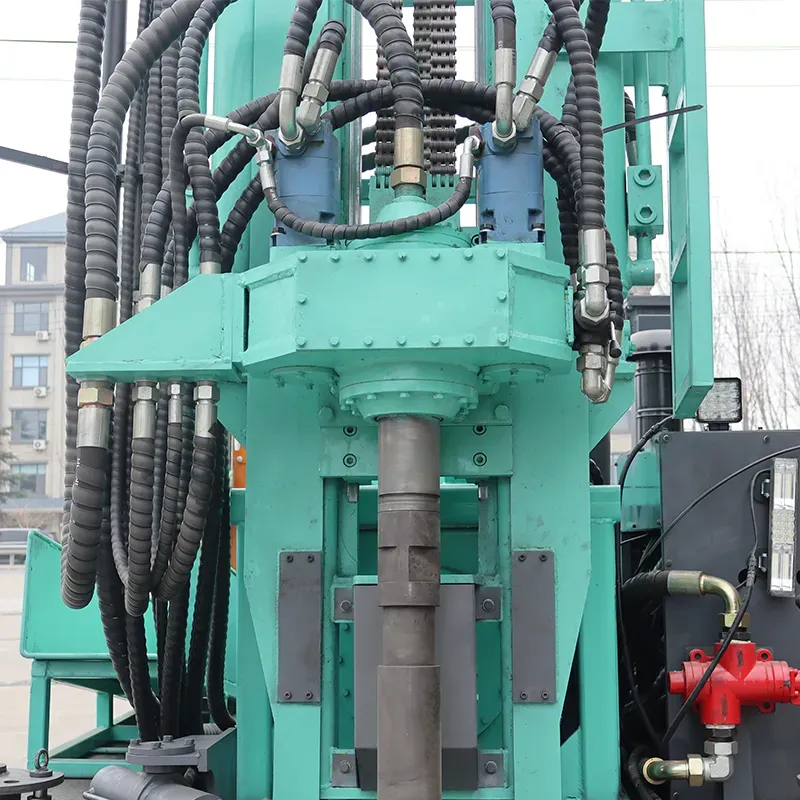

3. The power head box is intearated, and the dual motors provide areater power and toraue, more durable, and lowermaintenance costs.
4. The drilling rig chassis adopts steel tracks, which has strong environmental adaptability and can cope with more complexroads.
5. it adopts a composite boom, which is small in size but long in stroke, double cylinder lifting, and large lifting tonnage6. Each hydraulic oil pipe is covered with a thickened protective sleeve to extend the service life of the oil pipe.7. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump.
