Model Numbers

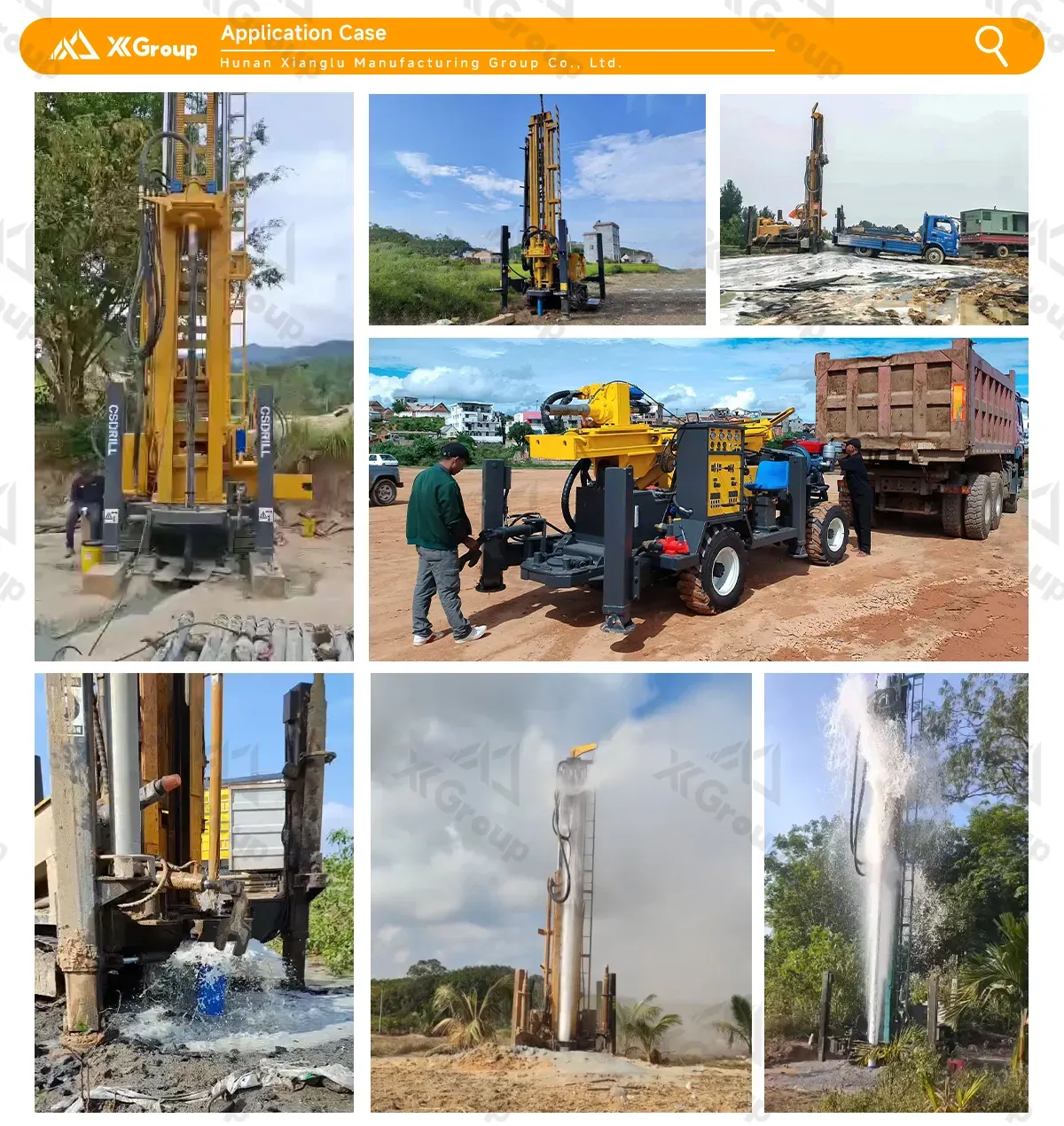

Application
Prices are for reference only. Actual quotes will be provided based on specific requirements. We have a professional technical and service team that strives to make everything perfect.
Click to play video

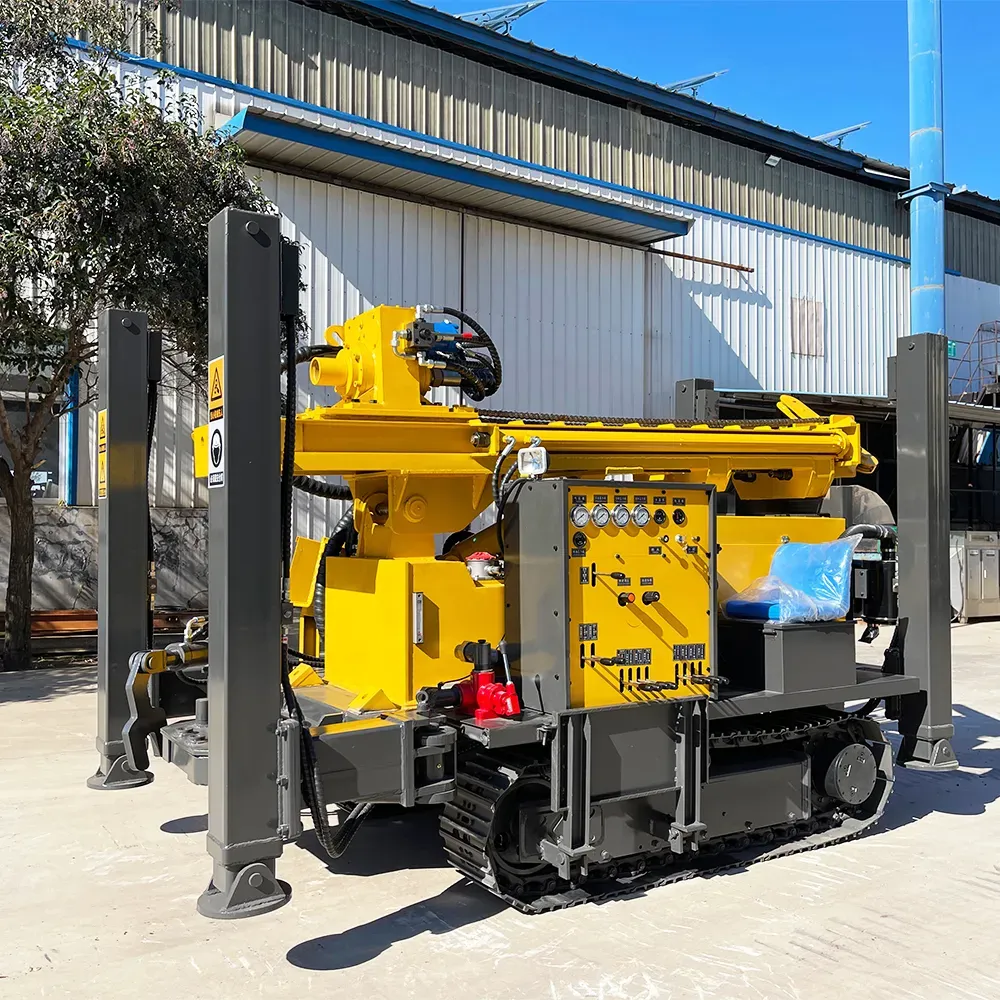

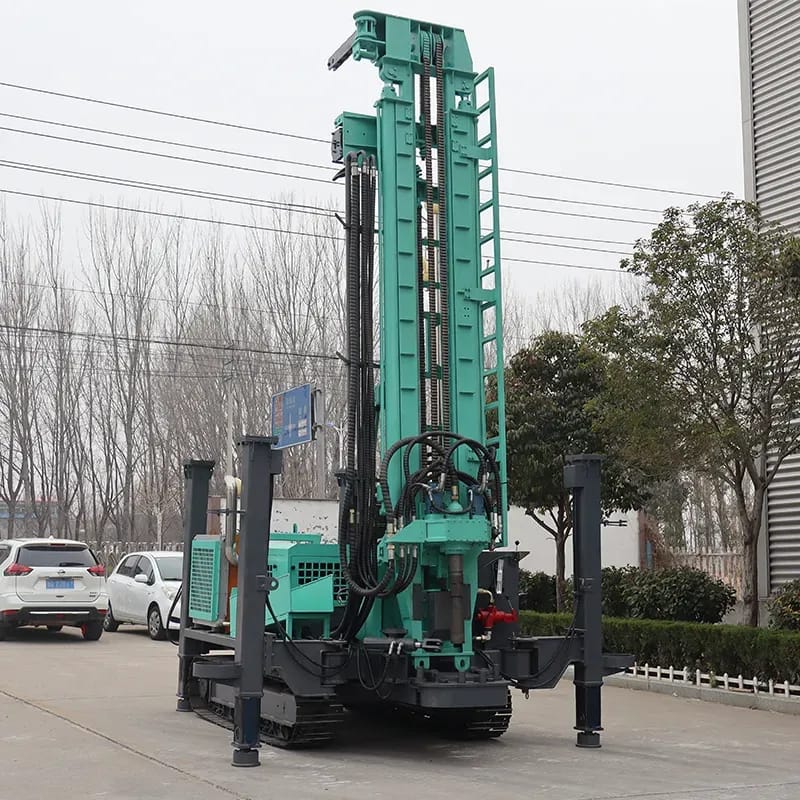

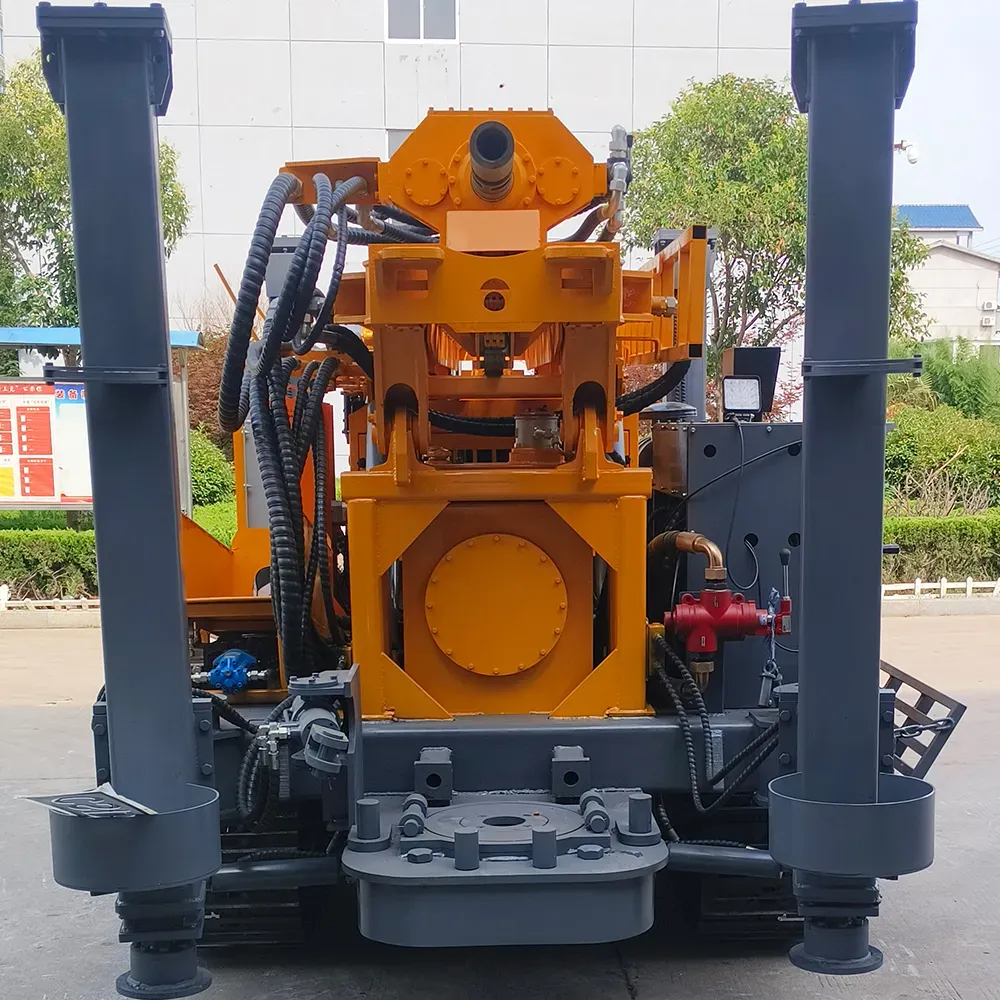

| Model Item | Unit | CS200 | CS260 | CS350 | CS600 | CS800 | CS1000H |
| Weight | kg | 5000 | 5000 | 8000 | 9200 | 13500 | 14000 |
| The Hole Diameter | mm | 110-305 | 110-305 | 105-400 | 140-400 | 140-400 | / |
| Drilling Depth | m | 200 | 260 | 350 | 600 | 800 | 1000 |
| One-time Advance Length | m | 3.3 | 3.3/6.6 | 6.6 | 6.6 | 6.6 | 6.6 |
| Walking Speed | km/h | 2-3 | 2-3 | 2-3 | 2-3 | 2.5 | 3 |
| Gradeability | ° | 25 | 25 | 25 | 25 | 30 | / |
| Equipped Capacitor | kw | 58 | 76 | 91 | 129 | 153 | 280 |
| Working Air Pressure | Mpa | 1.7-2.5 | 1.7-3.0 | 1.7-3.4 | 1.7-3.5 | 1.7-3.5 | / |
| Air Consumption | m³/min | 17-31 | 17-31 | 17-36 | 17-42 | 17-42 | / |
| Swing Speed | rpm | 40-140 | 40-160 | 40-160 | 40-160 | 40-160 | 300 |
| Drill Pipe Diameter | mm | Φ76 Φ89 | Φ76 Φ89 | Φ76 Φ89 Φ102 | Φ76 Φ89 Φ102 Φ114 | Φ76 Φ89 Φ102 Φ114 Φ117 | / |
| Drill Pipe Length | m | 1.5 2.0 3.0 | 1.5 2.0 3.0 | 1.5 2.0 3.0 6.0 | 1.5 2.0 3.0 6.0 | 1.5 2.0 3.0 6.0 | 1.5 2.0 3.0 6.0 |
| Rig Lifting Force | kN | 160 | 180 | 260 | 300 | 360 | / |
| Rapid Rise Speed | m/min | 25 | 25 | 20 | 20 | 20 | / |
| Fast Feeding Speed | m/min | 30 | 30 | 35 | 40 | 40 | / |
| Hoisting Force of Winch | kN | 9 | 15 | 15 | 20 | 20 | / |
| Max. Swing Torque | N.m | 4800 | 5500 | 8000 | 12000 | 8000-14000 | 14000-25000 |
| Dimensions | mm | 3600*1700*2300 | 4000*1900*2500 | 4500*2000*2500 | 4700*2100*2500 | 6300*2300*2950 | 6000*2200*2700 |
| The Penetration Efficiency | m/h | 10-35 | 12-40 | 12-40 | 15-35 | 12-40 | / |
| The Engine Brand | / | Yunnei | Yunnei | Yuchai | Weichai | Cummins | Weichai |

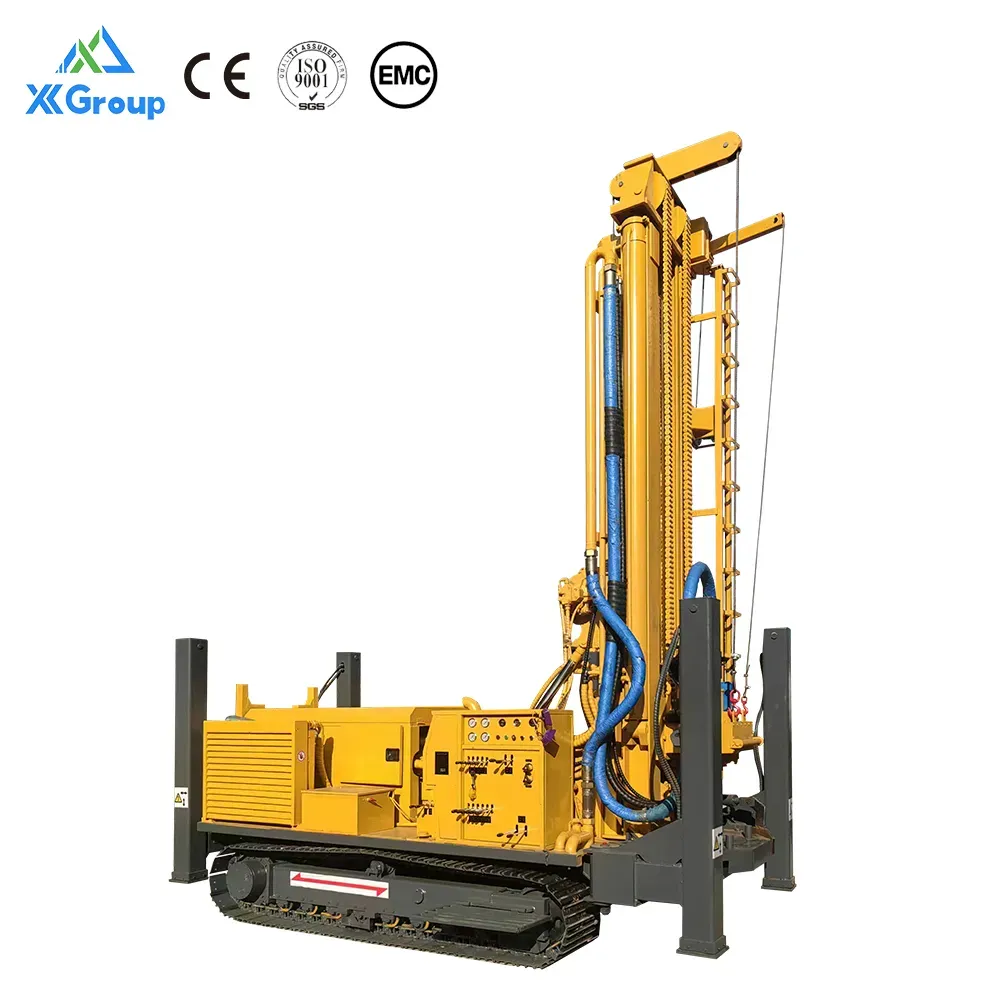

Product Features:
1. Adopt 280kw engine to effectively meet the needs of work, it has dual functions of water and gas.
2. The driling rig is equipped with hydraulic feed system, dual hydraulic motor power head, chain drive, hydraulic cylilpropulsion, large torque and fast drilling speed.
3. The power head box is integrated, and the dual motors provide greater power and torque, more durable and lower maintenance cost.
4. The driling rig chassis adopts steel crawler, which is sturdy and durable and has heavy load capacity.
5. Equipped with hydraulic lifting composite drill arm, it saves space and provides strong lifting force for deep holeoperations.
6. Each hydraulic oil pipe is covered with a thickened protective sleeve to make the oil pipe have a longer service life
